EPC Data

STARTER

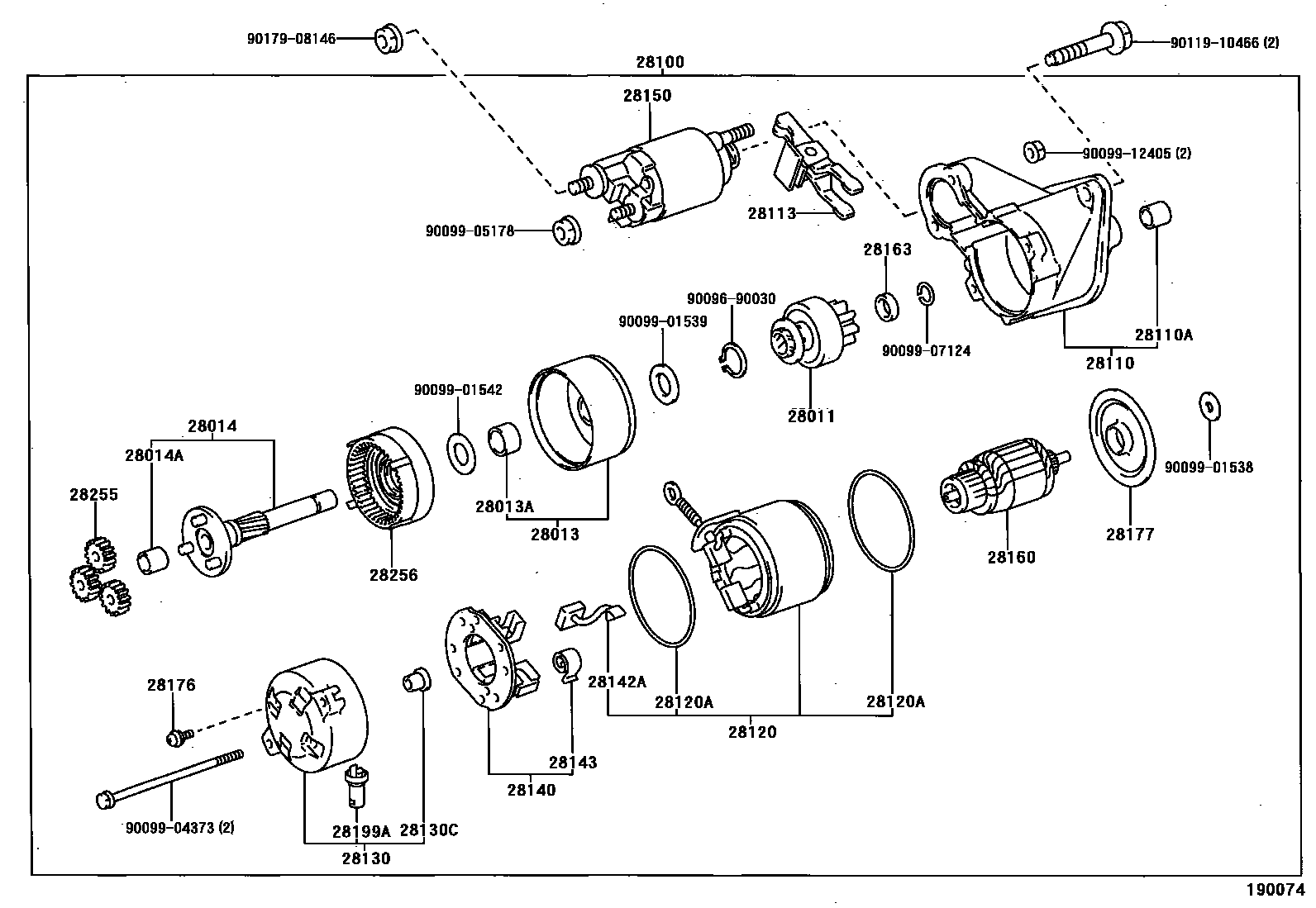

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-26042i199608-199808
12V 1.0KW
main28011-64010i199608
12V 2.2KW
main28011-64130i199608
12V 1.4KW
main28011-70020i199608
12V 0.8KW
main28011-74060i199608
12V 1.0KW
main28011-74070i199608
12V 1.2KW
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
main28013-70020i199608-200005
main28013-70030i200005
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
main90099-10181i199608
28014SHAFT SUB-ASSY, PLANET CARRIER
main28014-70020i199608
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
main90099-10180i199608
28100STARTER ASSY
main28100-16150i199608-199808
main28100-16170i199608
main28100-16190i199808
main28100-16230i199608
main28100-64300i199608
main28100-64310i199608
main28100-74130i199608
main28100-74200i199608
28110HOUSING ASSY, STARTER DRIVE
main28110-16020i199608
12V 1.0KW
main28110-16071i199608
12V 0.8KW
main28110-16150i199608-199808
12V 1.0KW
main28110-64170i199608
12V 1.4KW
main28110-74100i199608
12V 1.2KW
main28110-74110i199608
12V 1.0KW
main28115-64040i199608
12V 2.2KW
28110ABEARING(FOR STARTER HOUSING)
main90099-10171i199608
28113LEVER, STARTER PINION DRIVE
main28113-16070i199608
28120YOKE ASSY, STARTER
main28120-16180i199608
12V 1.2KW
main28120-26071i199808
12V 1.0KW
main28120-55050i199708
12V 1.4KW
main28120-64040i199608
12V 2.2KW
main28120-64130i199608-199708
12V 1.4KW
main28120-70020i199608
12V 0.8KW
main28120-70050i199808
12V 1.0KW
28120ARING, O(FOR STARTER YOKE)
main90099-14064×2i199608
12V 1.4KW
main90099-14092×2i199608
12V 0.8KW
main90099-64040i199608
12V 2.2KW
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-10040i199608-199808
12V 1.0KW
main28130-16070i199608
12V 0.8KW
main28130-64130i199608
12V 1.4KW
main28130-72010i199608
12V 1.0KW
main28130-74110i199608
12V 1.0KW
main28130-74120i199608
12V 1.2KW
28130CBEARING, STARTER FLANGE
main90099-10183i199608
28140HOLDER ASSY, STARTER BRUSH
main28140-26070i199608-199808
12V 1.0KW
main28140-64040i199608
12V 2.2KW
main28140-64130i199608
12V 1.4KW
main28140-70020i199608
12V 0.8KW
main28140-74010i199608
12V 1.0KW
main28140-74120i199608
12V 1.2KW
28142ASTARTER KIT
main28142-70020×2i199608
28143SPRING, STARTER BRUSH
main28143-70020×4i199608
12V 0.8KW
main28143-76060×4i199608
12V 1.2KW
main90099-17112×4i199608-199808
12V 1.0KW
main90099-17115×4i199608
12V 2.2KW
28150SWITCH ASSY, MAGNET STARTER
main28150-16150i199608-199808
12V 1.0KW
main28150-16160i199608
12V 0.8KW
main28150-16170i199608
12V 1.0KW
main28150-64300i199608-199708
12V 1.4KW
main28150-64310i199608-199808
12V 2.2KW
main28150-64341i199708
12V 1.4KW
main28150-64390i199808-199904
12V 2.2KW
main28150-74140i199608
12V 1.2KW
main28150-74200i199608
12V 1.0KW
28160ARMATURE ASSY, STARTER
main28160-26071i199808
12V 1.0KW
main28160-64041i199608
12V 2.2KW
main28160-70021i199608
12V 0.8KW
main28160-70050i199808
12V 1.0KW
main28160-74070i199608
12V 1.4KW
main28160-76060i199608
12V 1.2KW
28163NUT OR COLLAR, PINION STOP, STARTER
main28163-70020i199608
28176SCREW, STARTER
main90099-00270×2i199608
28177PLATE(FOR STARTER ARMATURE)
main28177-70020i199608
28199APROTECTOR, DUST STARTER
main28199-46080i199608
12V 0.8KW; 12V 2.2KW
main28199-74110i199608
12V 1.2KW; 12V 1.4KW
28255GEAR, PLANET
main28255-70020×3i199608
28256GEAR, STARTER INTERNAL
main28256-70020i199608
9009690030
main90096-90030
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9009904373
main90099-04373
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
9011910466
main90119-10466
9017908146
main90179-08146
