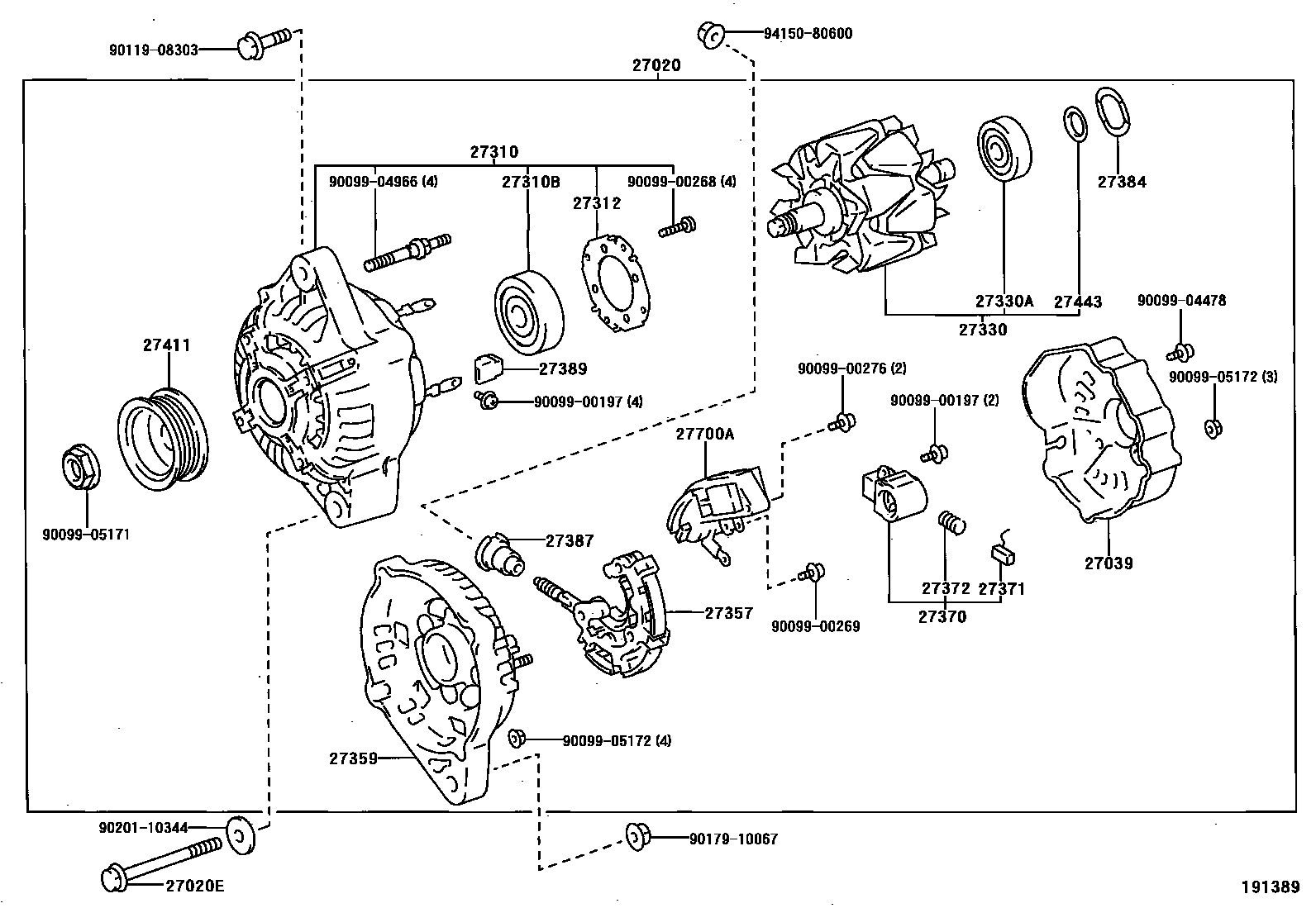

ALTERNATOR

0001 112V 70A 0002 112V 80A 0003 112V 70A 0004 112V 70A,12V 80A 0005 112V 80A 0006 112V 70A 0007 112V 80A 0008 112V 100A 0009 112V 80A

27020ALTERNATOR ASSY

main27060-16350i4AGE..AT210..MTM199608

sub27060-16320

main27060-16380i5AFE,7AFE..AT211,212..5F199608

main27060-16390i5AFE,7AFE..AT211,212..4FC199608-199705

sub27060-16440

main27060-16400i4AGE..AT210..4FC199608

sub27060-16330

main27060-16440i5AFE,7AFE..AT211,212..4FC199705

sub27060-16450

main27060-64270i2CT..CT210..4FC;2CT,3CTE..CT211,215199608

main27060-64280i2CT..CT210..5F199608-199808

sub27060-64270

main27060-64340i3CTE..CT216199808

main27060-74580i3SFE..ST215..5F199608-199808

sub27060-74630

main27060-74590i3SFE..ST215..5F..TI;3SFE..ST215..4FC..SI199608

sub27060-74640

main27060-74650i3SFE..ST215..4FC199808

27020EBOLT(FOR ALTERNATOR)

main90101-10181i4AGE..AT210199608

main90105-10249i3SFE..ST215199608

main90105-10336i5AFE,7AFE..AT211,212199608

main90901-05004i2CT,3CTE..CT21#199608

27039COVER, ALTERNATOR REAR END

main27039-16380i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608-199701

main27039-20020i2CT,3CTE..CT210,211,215199608-200104

sub27039-28090

main27039-20060i3CTE..CT216199808-200104

main27039-20160i3CTE..CT216200104

main27039-28090i3CTE..CT211200104

main27039-55080i3SFE..ST215..5F..TI;4AGE,5AFE,7AFE,3SFE..AT21#,ST215..4FC199608-200104

sub27039-70470

main27039-70470i3SFE..ST215;4AGE,5AFE,7AFE..AT21#..4FC200104

main27039-73020i4AGE,3SFE..AT210,ST215..5F199608-199701

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i5AFE,7AFE..AT211,212..5F199608

main27310-15180i5AFE,7AFE..AT211,212..4FC199608-199705

sub27310-16430

main27310-16300i4AGE..AT210..MTM199608

main27310-16310i4AGE..AT210..4FC199608

main27310-16430i5AFE,7AFE..AT211,212..4FC199705

main27310-64450i2CT..CT210..5F199608-199808

main27310-64470i2CT..CT210..4FC;2CT,3CTE..CT211,215199608

main27310-64490i3CTE..CT216199808

main27310-70100i3SFE..ST215..5F199608-199808

main27310-74120i3SFE..ST215..5F199808

main27310-74480i3SFE..ST215..4FC199608-199808

main27310-74490i3SFE..ST215..4FC199808

sub27310-70440

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608

main90099-10192i3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC199608

27312PLATE, RETAINER

main27312-42010i3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC199608

main27312-70200i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608

27330ROTOR ASSY, ALTERNATOR

main27330-16300i4AGE..AT210..MTM199608

main27330-16390i3SFE..ST215..5F;5AFE,7AFE..AT211,212..4FC199609-200007

main27330-16400i4AGE..AT210..4FC199608

sub27330-16390

main27330-20070i3CTE..CT216200007

main27330-64520i3CTE..CT216199808-200007

sub27330-20070

main27330-64570i3SFE..ST215..5F199608-199701

main27330-72101i5AFE,7AFE..AT211,212..5F199608-199701

main27330-72280i3CTE..CT211199608-200007

sub27330-74550

main27330-74550i3CTE..CT211200007

main27330-74730i3SFE..ST215..4FC199812

sub27330-74550

main27330-76030i2CT..CT210..5F;5AFE,7AFE,3SFE..AT211,212,ST215..4FC199608-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i5AFE,7AFE,2CT,3CTE,3SFE..AT211,212,CT21#,ST215199608

main90099-10194i4AGE..AT210199608

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i4AGE..AT210..4FC199608

main27357-16380i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608-199701

main27357-20060i3CTE..CT216199808

main27357-55080i3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;5AFE,7AFE,3SFE..AT211,212,ST215..4FC199608

main27357-63020i4AGE,3SFE..AT210,ST215..5F199608-199701

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15180i5AFE,7AFE..AT211,212..4FC199608

main27359-16301i4AGE..AT210..5F199608-199701

main27359-16302i4AGE..AT210..MTM199701

main27359-16310i4AGE..AT210..4FC199608

main27359-16380i5AFE,7AFE..AT211,212..5F199608

main27359-43161i3SFE..ST215..5F199608-199701

main27359-43162i3SFE..ST215..5F199701-199808

main27359-64450i2CT,3CTE..CT210,211,215199608

main27359-64490i3CTE..CT216199808

main27359-74330i3SFE..ST215..5F199808

main27359-74550i3SFE..ST215..4FC199608

sub27359-70440

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i3SFE..ST215..5F..SI;5AFE,7AFE..AT211,212..5F199608

main27370-58320i4AGE..AT210..MTM199608

main27370-75060i3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC199608

27371BRUSH, ALTERNATOR

main27371-70300i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608

27372SPRING, ALTERNATOR BRUSH

main27372-63020i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608

sub27372-87501

27384WASHER

main27384-16380i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608

main27384-50030i3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC199608

27387INSULATOR, TERMINAL

main27387-42020i2CT..CT21#;4AGE,5AFE,7AFE,3SFE..AT21#,ST215..4FC199608-199708

main27387-42021i3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC199708

main27387-70170i4AGE,5AFE,7AFE,3SFE..AT21#,ST215..5F199608-199709

main27387-70171i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199709

27389INSULATOR, TERMINAL

main27389-42010i3SFE..ST215..5F..TI;2CT,3CTE..CT210,211,215;4AGE,5AFE,7AFE,3CTE,3SFE..AT21#,CT216,ST215..4FC199608

main27389-63020i3SFE..ST215..5F..SI;4AGE,5AFE,7AFE..AT21#..MTM199608

27411PULLEY, ALTERNATOR

main27411-16180i4AGE,5AFE,7AFE..AT21#..MTM199608

main27411-16211i3SFE..ST215..5F199608-199808

main27411-42030i3SFE..ST215..5F..TI;5AFE,7AFE,3SFE..AT211,212,ST215..4FC199608

main27411-64360i2CT,3CTE..CT210,211,215199608

main27411-64490i3CTE..CT216199808

main27411-74050i4AGE..AT210..4FC199608

27443COVER, ALTERNATOR BEARING

main27443-63020i4AGE,5AFE,7AFE,2CT,3CTE,3SFE..AT21#,CT21#,ST215199608

27700AREGULATOR ASSY, GENERATOR

main27700-62010i2CT,3CTE..CT21#199608

main27700-74040i4AGE,5AFE,7AFE,3SFE..AT21#,ST215199608

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905171

main90099-05171

9009905172

main90099-05172

9011908303

main90119-08303

9017910067

main90179-10067

9020110344

main90201-10344

9415080600

main94150-80600

31 parts on this diagram · 9 diagrams in section
