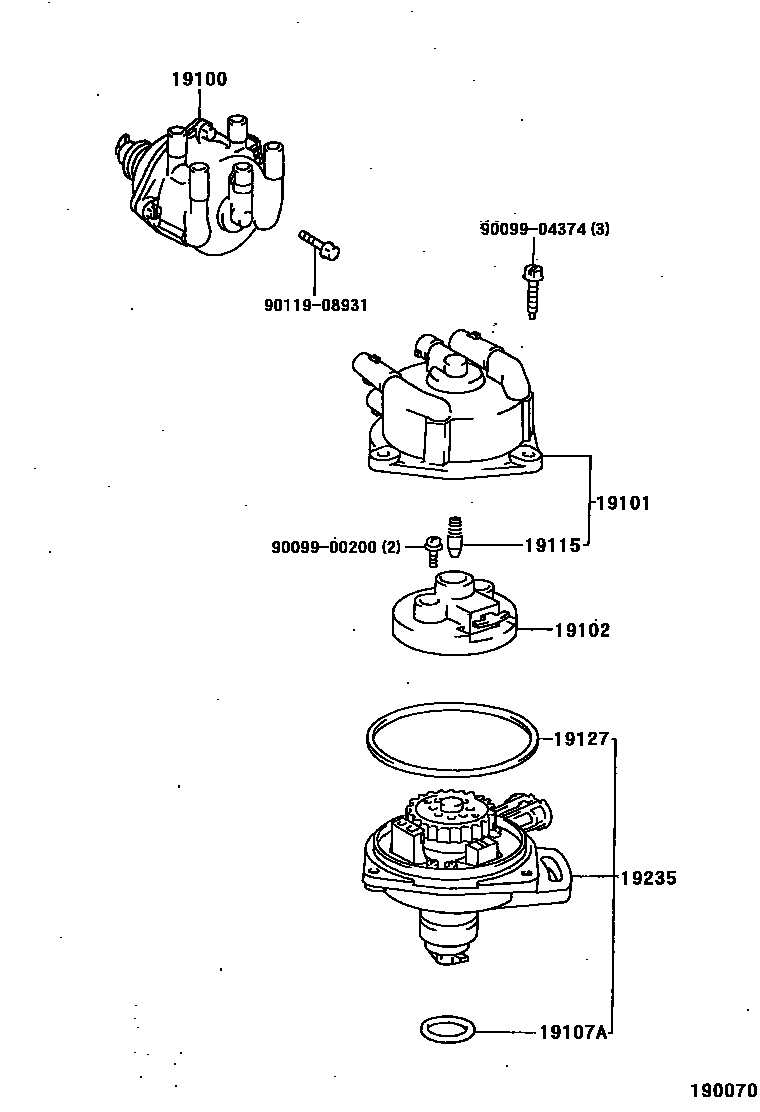

DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19020-15180i5AFE..AT212199608

main19100-16270i4AGE..AT210199608

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i5AFE..AT212199608

main19101-16010i4AGE..AT210199608

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11370i5AFE..AT212199608

main19102-74040i4AGE..AT210199608

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14127i4AGE,5AFE..AT210,212199608

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i5AFE..AT212199608

main19115-88280i4AGE..AT210199608

19127PACKING, DUST PROOF

main19127-15120i5AFE..AT212199608

main19127-74040i4AGE..AT210199608

19235HOUSING, DISTRIBUTOR

main19235-16060i4AGE..AT210199608

main19235-16120i5AFE..AT212199608

9009900200

main90099-00200

9009904374

main90099-04374

9011908931

main90119-08931

10 parts on this diagram · 2 diagrams in section
