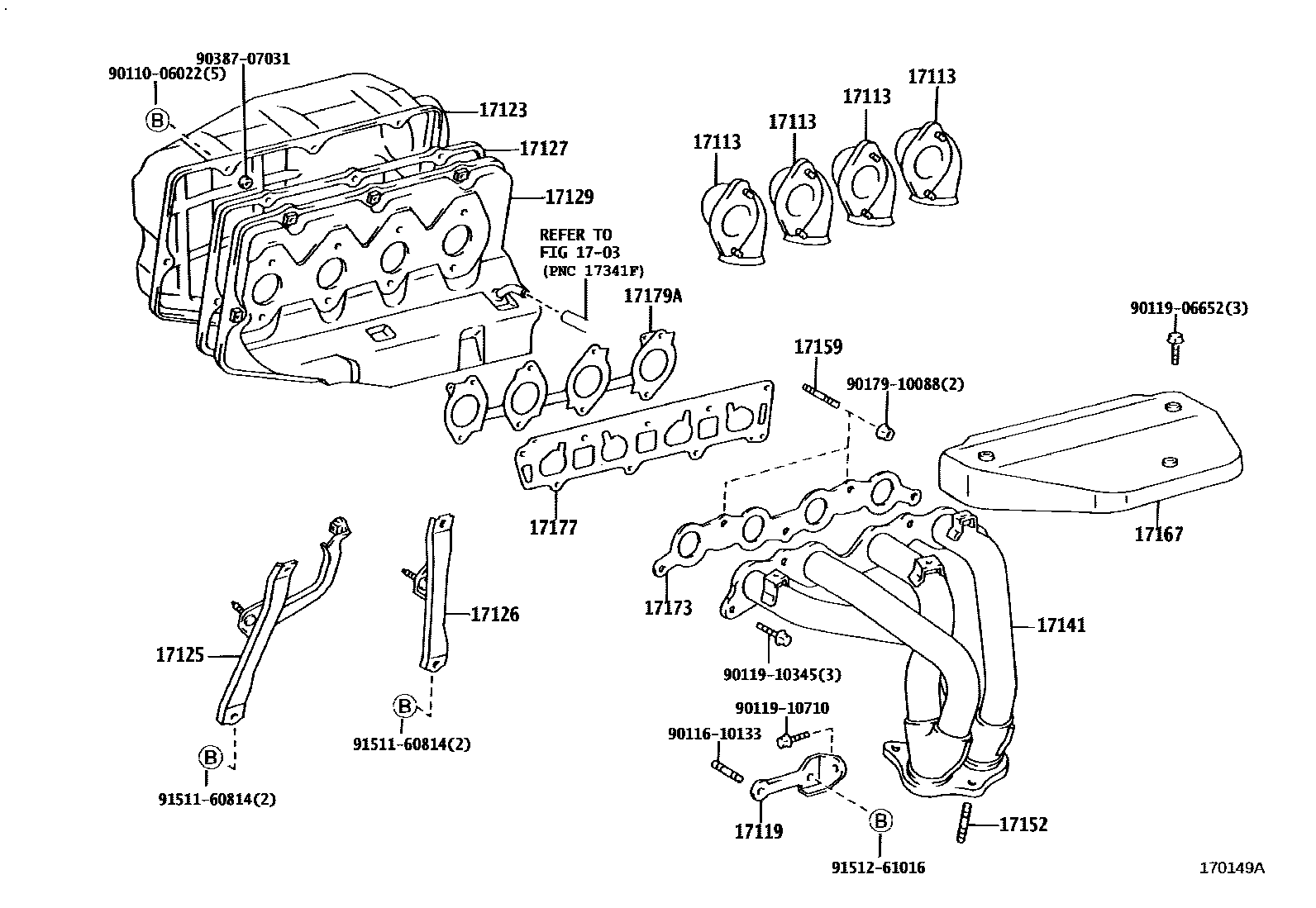

MANIFOLD
1703
17113PIPE, INTAKE
17119STAY, MANIFOLD, NO.2
17123COVER, SURGE TANK
17125STAY, SURGE TANK, NO.1
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17179AGASKET, INTAKE MANIFOLD, NO.2
9011006022
main90110-06022
9011610133
main90116-10133
9011906652
main90119-06652
9011910345
main90119-10345
9011910710
main90119-10710
9017910088
main90179-10088
9038707031
main90387-07031
9151160814
main91511-60814
9151261016
main91512-61016
24 parts on this diagram · 8 diagrams in section
