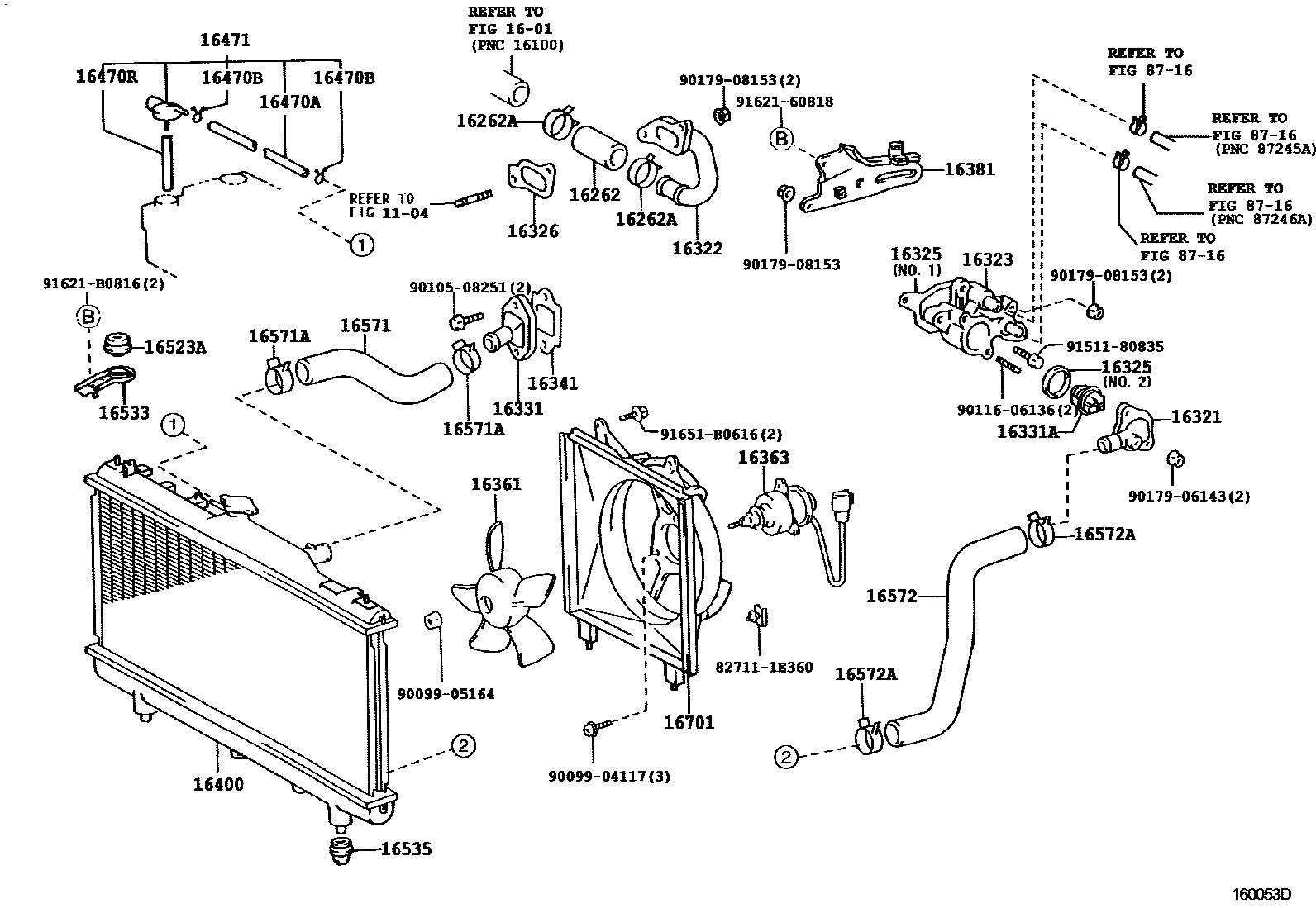

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1104

1601

16262HOSE, WATER INLET

main16262-15040i5AFE,7AFE..AT211,212199608-199802

sub16262-16030

main16262-16030i5AFE,7AFE..AT211,212199802

main90445-42002i4AGE..AT210199608

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i4AGE,5AFE,7AFE..AT21#199608

sub90467-37005

16321INLET, WATER

main16321-15040i5AFE,7AFE..AT211,212199608

main16321-16050i4AGE..AT210199608

main16321-64020i2CT,3CTE..CT21#199608

main16321-74050i3SFE..ST215199608

16322PIPE, WATER INLET

main16322-15050i5AFE..AT212199608

main16322-16050i4AGE..AT210199608

main16322-16060i7AFE..AT211199608

16323HOUSING, WATER INLET

main16323-15180i5AFE,7AFE..AT211,212199608

main16323-16150i4AGE..AT210199608

16325GASKET, WATER INLET HOUSING, NO.1

main16325-16020i4AGE..AT210199608

main16325-62010i4AGE..AT210199608

main16325-63011i5AFE,7AFE..AT211,212199608

16326GASKET, WATER INLET HOUSING, NO.2

main16326-16010i4AGE..AT210199608

16331OUTLET, WATER

main16331-15080i5AFE,7AFE..AT211,212199608

main16331-16100i4AGE..AT210199608

main16331-74210i3SFE..ST215199608-199707

sub16331-74260

main16331-74220i3SFE..ST215199608

main16331-74260i3SFE..ST215199707

16331ATHERMOSTAT

main90916-03046i2CT,3CTE..CT21#199608

main90916-03075i4AGE..AT210199608

main90916-03090i3SFE..ST215199608

main90916-03109i5AFE,7AFE..AT211,212199608-199803

sub90916-03115

main90916-03115i5AFE,7AFE..AT211,212199803

16341GASKET, WATER OUTLET

main16341-16040i4AGE..AT210199608

main16341-74020i3SFE..ST215199608

16361FAN

main16361-64030i2CT..CT210..5F199608-199808

main16361-64050i2CT..CT215;2CT..CT210..4FC199608-199808

main16361-64070i3CTE..CT21#199808

main16361-74050i5AFE..AT212;4AGE,7AFE..AT210,211..MTM199608

main16361-74060i3SFE..ST215..5F199608

main16361-74100i3SFE..ST215..4FC199608-199808

sub16361-74110

main16361-74110i3SFE..ST215..4FC199808

16363MOTOR, COOLING FAN

main16363-11050i4AGE,7AFE..AT210,211..4FC199608-199708

sub16363-74260

main16363-16050i5AFE..AT212;4AGE,7AFE..AT210,211..MTM199708

main16363-64090i2CT..CT210..5F199608-199808

main16363-64120i2CT..CT215;2CT..CT210..4FC199608-199808

main16363-64130i3CTE..CT21#199808

main16363-74030i3SFE..ST215..4FC199608-199708

main16363-74120i5AFE..AT212;4AGE,7AFE..AT210,211..5F199608-199708

sub16363-16050

main16363-74260i3SFE..ST215..5F199708

main16363-74270i3SFE..ST215..4FC199708

16381BAR, FAN BELT ADJUSTING

main16381-15080i5AFE,7AFE..AT211,212199608

main16381-16080i4AGE..AT210199608

sub16381-16070

main16381-64080i2CT,3CTE..CT210,211,215199608

main16381-64160i3CTE..CT216199808

16400RADIATOR ASSY

main16400-16570i5AFE,7AFE..AT211,212..5F199608-199701

sub16400-16571

main16400-16571i5AFE,7AFE..AT211,212..5F199701-199801

sub16400-16780

main16400-16580i7AFE..AT211..4FC199608-199701

sub16400-16581

main16400-16581i7AFE..AT211..4FC199701-199801

sub16400-16800

main16400-16590i5AFE..AT212..4FC199608-199701

sub16400-16591

main16400-16591i5AFE..AT212..4FC199701-199801

sub16400-16650

main16400-16650i5AFE..AT212..4FC199801-200112

main16400-16760i4AGE..AT210..5F199608-199701

sub16400-16761

main16400-16761i4AGE..AT210..5F199701-199801

sub16400-16830

main16400-16770i4AGE..AT210..4FC199608-199701

sub16400-16771

main16400-16771i4AGE..AT210..4FC199701-199801

sub16400-16800

main16400-16780i5AFE,7AFE..AT211,212..5F199801-200112

main16400-16800i4AGE,7AFE..AT210,211..4FC199801-200112

main16400-16830i4AGE..AT210..MTM199801-200112

sub16400-16800

main16400-64830i2CT..CT210..4FC199608-199706

sub16400-64831

main16400-64831i2CT..CT210..4FC199706-199712

sub16400-6A200

main16400-64840i2CT..CT215199608-199808

main16400-64850i2CT..CT210..5F199608-199805

sub16400-6A210

main16400-6A200i2CT,3CTE..CT210,211,216..4FC199712

main16400-6A210i2CT,3CTE..CT210,211..5F199805

main16400-7A190i3SFE..ST215..5F199608-199701

sub16400-7A191

main16400-7A191i3SFE..ST215..5F199701-199712

sub16400-7A580

main16400-7A210i3SFE..ST215..4FC199608-199701

sub16400-7A211

main16400-7A211i3SFE..ST215..4FC199701-199808

main16400-7A430i3SFE..ST215..4FC199808

main16400-7A580i3SFE..ST215..5F199712

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i2CT,3CTE..CT21#199608

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2CT,3CTE..CT21#199608

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i2CT,3CTE..CT21#199608

16471CAP SUB-ASSY, RESERVE TANK

main16405-16130i2CT,3CTE..CT21#199608

16523ACUSHION, RADIATOR SUPPORT

main16523-74010i2CT,3CTE..CT21#199608

16533SUPPORT, RADIATOR, UPPER

main16533-16060i2CT,3CTE..CT21#199608

16535SUPPORT, RADIATOR, LOWER

main16535-64110i2CT..CT215;2CT..CT210..4FC199608-199808

sub16535-64120

main16535-64120i3CTE..CT21#199808

main16535-74030i3SFE..ST215199608

main16535-74220i4AGE..AT210199608

main90916-04008i2CT..CT210..5F199608-199808

16571HOSE, RADIATOR, INLET

main16571-16230i4AGE,5AFE,7AFE..AT21#199608

main16571-64260i2CT,3CTE..CT21#199608

main16571-74330i3SFE..ST215199608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i4AGE,5AFE,7AFE..AT21#199608

sub90467-34004

main90467-37006i2CT,3CTE..CT21#199608

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-16190i5AFE,7AFE..AT211,212199608

main16572-16220i4AGE..AT210199608

main16572-64270i2CT,3CTE..CT21#199608

main16572-74300i3SFE..ST215199608

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i4AGE,5AFE,7AFE..AT21#199608

sub90467-34004

main90467-37006i2CT,3CTE..CT21#199608

sub90467-37005

16701SHROUD SUB-ASSY, FAN

main16711-16260i5AFE..AT212;4AGE,7AFE..AT210,211..5F199608-199705

sub16711-16261

main16711-16261i5AFE..AT212;4AGE,7AFE..AT210,211..MTM199705

main16711-16290i4AGE,7AFE..AT210,211..4FC199608-199705

sub16711-16291

main16711-16291i3SFE..ST215..5F199705

main16711-16300i3SFE..ST215..4FC199608-199705

sub16711-16301

main16711-16301i3SFE..ST215..4FC199705

main16711-64362i2CT..CT210..5F199608-199808

main16712-64130i2CT..CT215;2CT..CT210..4FC199608-199808

main16712-64200i3CTE..CT21#199808

8716

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904117

main90099-04117

9009905164

main90099-05164

9010508251

main90105-08251

9011606136

main90116-06136

9017906143

main90179-06143

9017908153

main90179-08153

9151180835

main91511-80835

9162160818

main91621-60818

91621B0816

main91621-B0816

91651B0616

main91651-B0616

40 parts on this diagram · 11 diagrams in section
