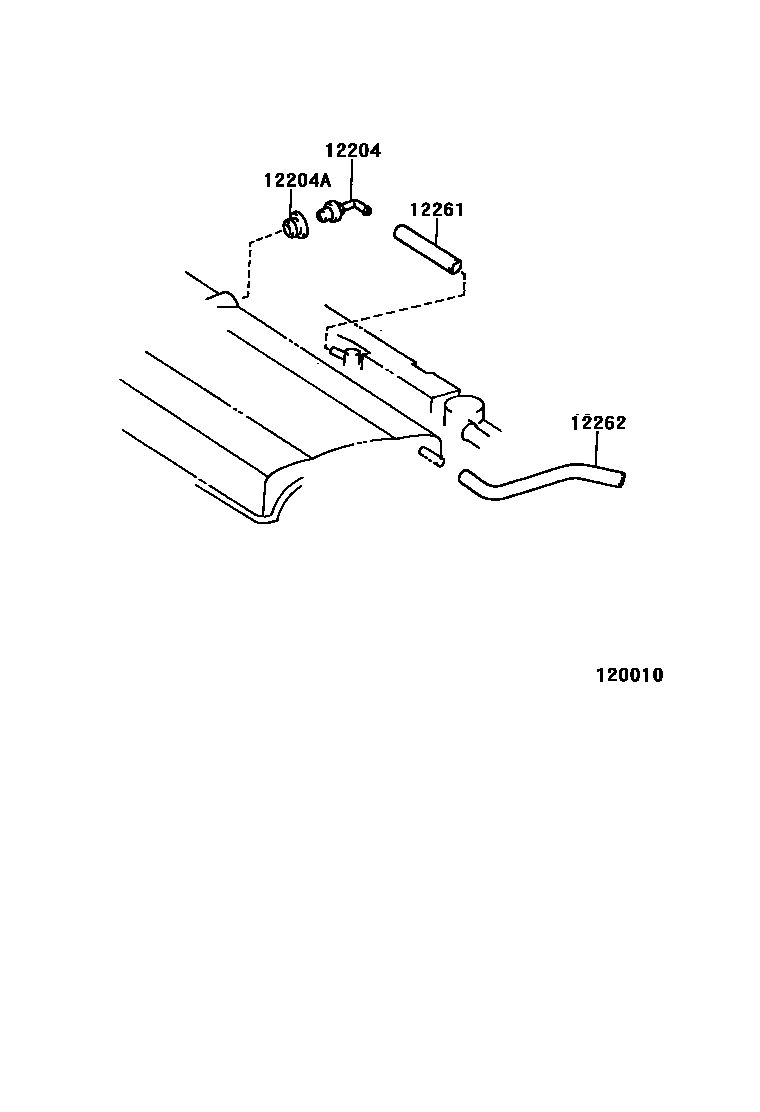

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12204VALVE SUB-ASSY, VENTILATION

main12204-11050i4AGE..AT210199608

main12204-15050i5AFE,7AFE..AT211,212199608

main12204-74030i3SFE..ST215199608

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4AGE,5AFE,7AFE..AT21#199608

12261HOSE, VENTILATION

main12261-16070i4AGE..AT210199608

main12261-64130i2CT..CT21#199608-199708

sub12261-64131

main12261-64131i2CT,3CTE..CT21#199708

main12261-74130i3SFE..ST215199608

main90910-05222i5AFE,7AFE..AT211,212199608

12262HOSE, VENTILATION, NO.2

main12262-16060i4AGE..AT210199608

main12262-74100i3SFE..ST215199608

main90445-15067i7AFE..AT211199608

main90445-15068i5AFE..AT212199608

4 parts on this diagram · 4 diagrams in section
