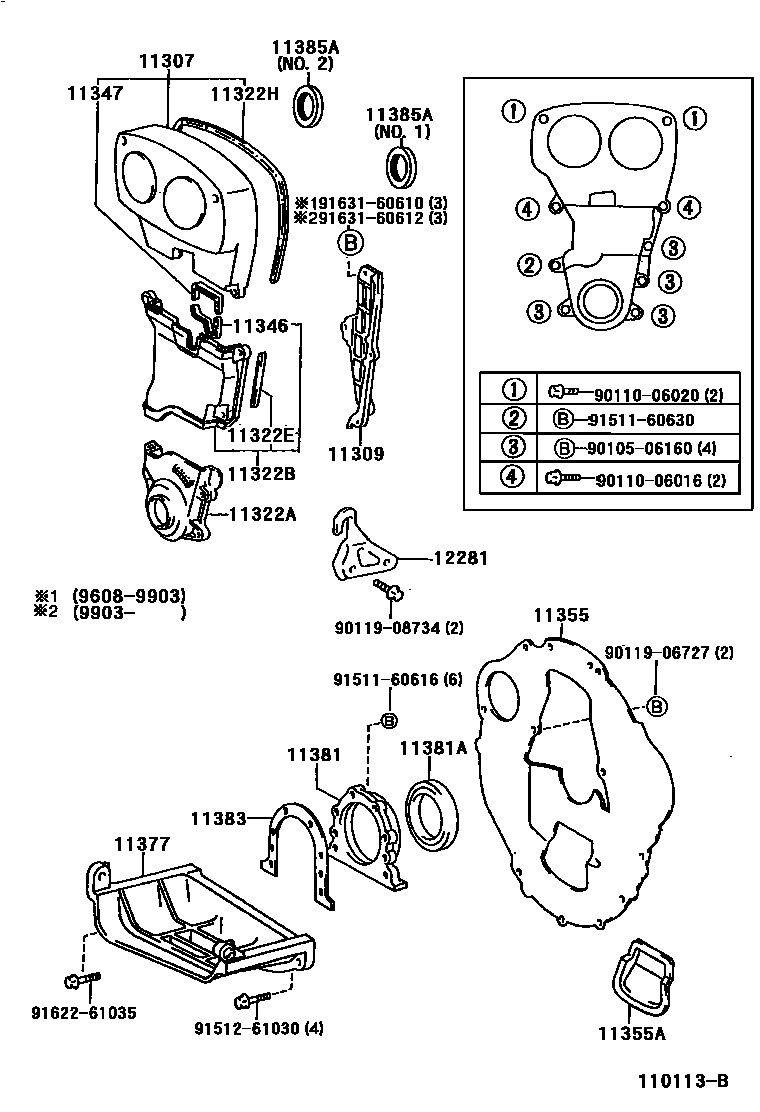

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-16090i4AGE..AT210199608

main11304-74040i3SFE..ST215199608-199808

main11304-74060i3SFE..ST215199808

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-16030i4AGE..AT210199608

11322ACOVER, TIMING BELT, NO.1

main11302-16020i4AGE..AT210199608

main11321-64020i2CT..CT21#199608-199804

sub11321-64021

main11321-64070i2CT,3CTE..CT21#199804

11322BCOVER, TIMING BELT, NO.2

main11303-16080i4AGE..AT210199608

main11322-64010i2CT,3CTE..CT21#199608

11322EGASKET, TIMING BELT COVER, NO.2

main11329-16020i4AGE..AT210199608

main11329-64020i2CT,3CTE..CT21#199608

11322HGASKET, TIMING BELT COVER, NO.3

main11319-16020i4AGE..AT210199608

11346GASKET, TIMING BELT COVER, NO.4

main11346-16040i4AGE..AT210199608

11347GASKET, TIMING BELT COVER, NO.5

main11347-16030i4AGE..AT210199608

11355PLATE, REAR END

main11355-15070i4AGE,5AFE,7AFE..AT21#..MTM199608

main11355-15080i4AGE,5AFE,7AFE..AT21#..4FC199608

main11355-64051i2CT,3CTE..CT210,211,215..5F199608-200003

sub11355-64052

main11355-64052i3CTE..CT211..5F200003

main11355-64061i2CT..CT210..4FC199608-199808

sub11355-64062

main11355-64110i3CTE..CT21#..4FC199808

main11355-74040i3SFE..ST215199608

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AGE,5AFE,7AFE..AT21#..4FC199608

main90950-01738i2CT..CT210..4FC199608-199808

main90950-01918i3CTE..CT21#..4FC199808

11377STIFFENER, REAR END PLATE

main11377-15012i4AGE,5AFE..AT210,212199608

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AGE,5AFE,7AFE..AT21#199608

main11381-63012i3SFE..ST215199608

main11381-64012i2CT,3CTE..CT21#199608-199812

sub11381-64020

main11381-64020i3CTE..CT21#199812

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AGE,5AFE,7AFE..AT21#199608

main90311-85006i3SFE..ST215199608-199801

sub90311-85009

main90311-85009i3SFE..ST215199801

main90311-90005i2CT..CT21#199608-199612

sub90311-90008

main90311-90008i2CT,3CTE..CT21#199612

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4AGE,5AFE,7AFE..AT21#199608

main11383-74021i3SFE..ST215199608

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64011i2CT,3CTE..CT21#199608

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35013i4AGE..AT210199608-199908

sub90311-35022

main90311-35022i4AGE..AT210199908

sub90311-35040

main90311-38044i2CT..CT21#199608-199611

sub90311-38081

main90311-38061i2CT,3CTE..CT21#199611-199906

sub90311-38081

main90311-38081i3CTE..CT21#199906

main90311-40015i4AGE..AT210199912

main90311-40016i4AGE..AT210199608-199912

sub90311-40015

12281HANGER, ENGINE, NO.1

main12281-15050i5AFE,7AFE..AT211,212199608

main12281-16041i4AGE..AT210199608

9010506160

main90105-06160

9011006016

main90110-06016

9011006020

main90110-06020

9011906727

main90119-06727

9011908734

main90119-08734

9151160616

main91511-60616

9151160630

main91511-60630

9151261030

main91512-61030

9162261035

main91622-61035

9163160610

main91631-60610

9163160612

main91631-60612

28 parts on this diagram · 4 diagrams in section
