SHORT BLOCK ASSEMBLY

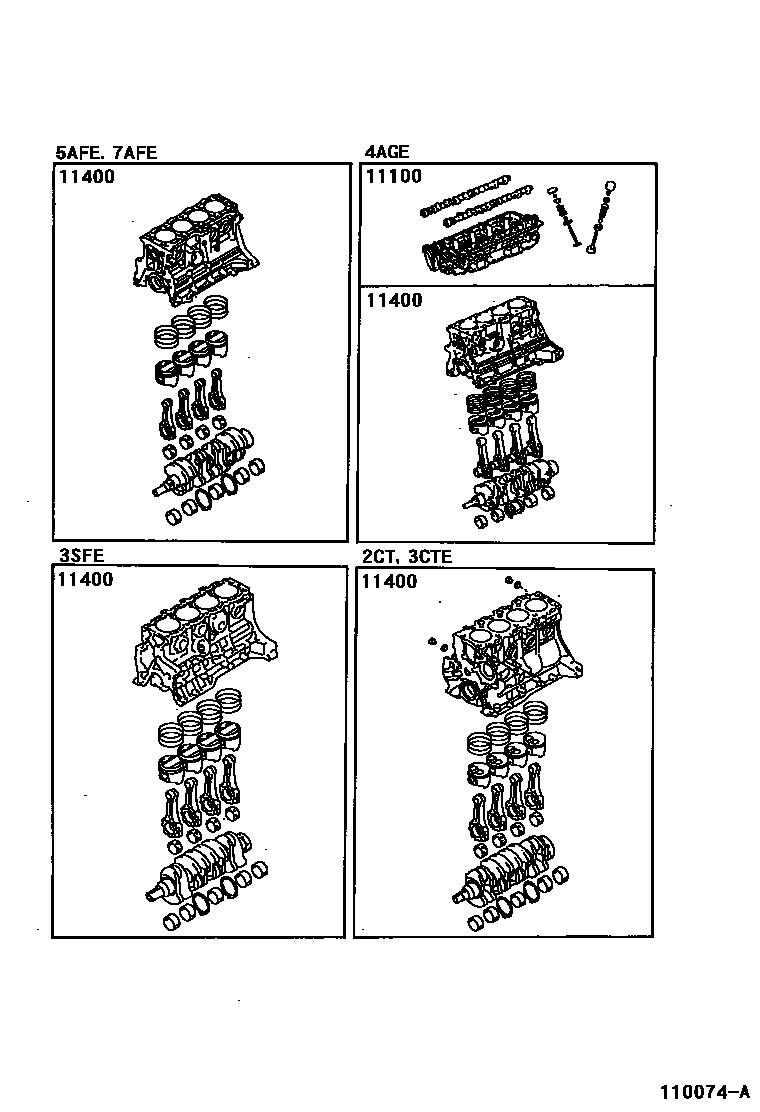

Parts diagram

11100HEAD ASSY, SHORT

main11100-16020i199608

11400BLOCK ASSY, SHORT

main11400-16390i199608

main11400-16400i199608

main11400-16410i199608

main11400-64470i199608-199808

main11400-64500i199608-199808

main11400-64571i199808-199901

main11400-64572i199901

main11400-64581i199808-199901

main11400-64582i199901

main11400-74360i199608

2 parts on this diagram · 1 diagram in section
