STANDARD TOOL

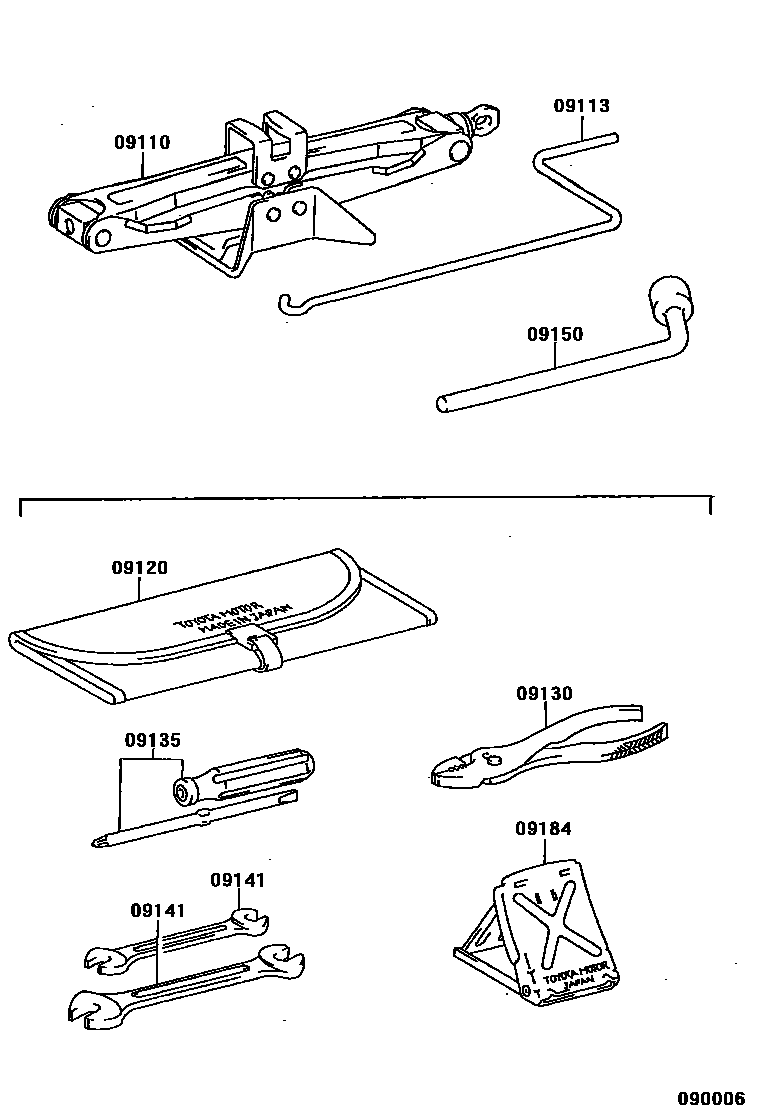

Parts diagram

09110JACK ASSY

main09111-20140i199608

09113HANDLE, JACK

main09113-20030i199608

09120BAG, TOOL

main09120-16030i199608

09130PLIERS

main99913-11500i199608

09135DRIVER, SCREW

main99915-10700i199608

09141SPANNER

main99914-10810i199608

main99914-11214i199608

09150WRENCH, HUB NUT BOX

main09150-40010i199608

09184STOPPER, WHEEL

main09184-00010i199608

8 parts on this diagram · 1 diagram in section
