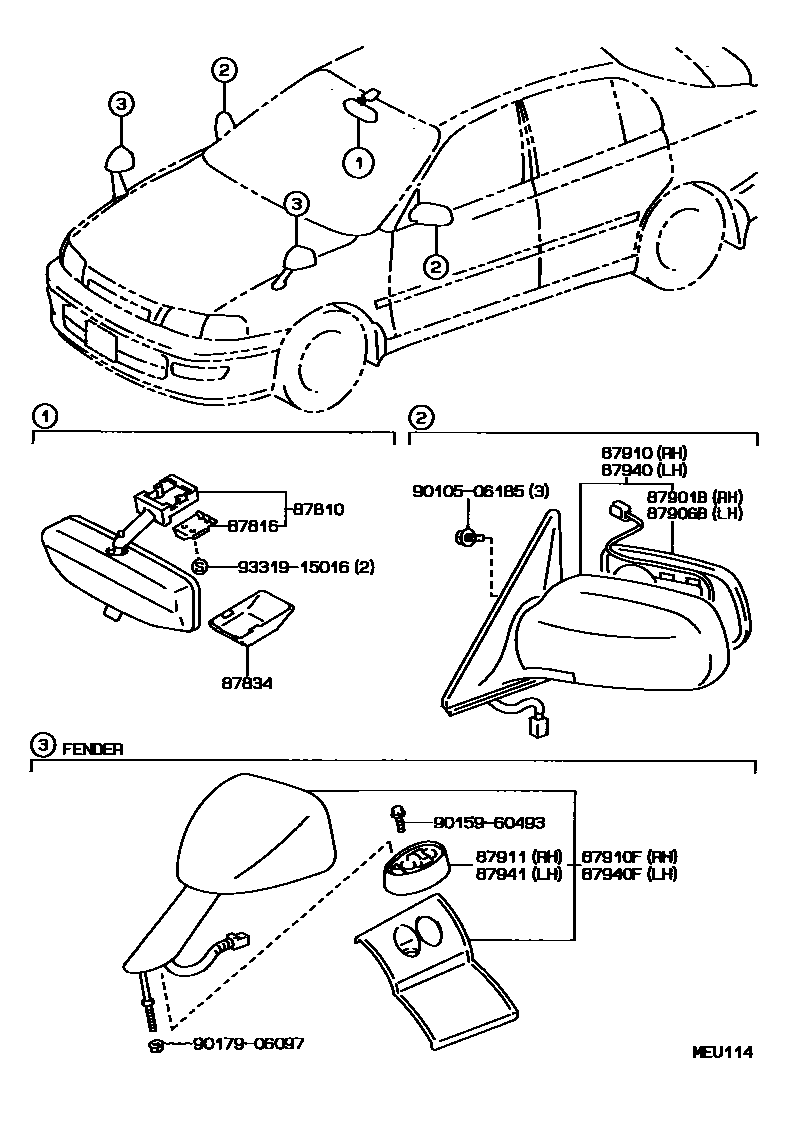

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22190-B2iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

main87810-22190-E3iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

main87810-22190-E5iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAT19#,CT19#,ST19#199208-199608

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

main87834-20080-E3iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

main87834-20080-S3iAT19#,CT19#,ST19#199208-199608

LIGHT GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-2B500iAT19#,CT19#,ST195..SG,SGI199208-199608

main87931-2B510iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87931-2B530iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-2B500iAT19#,CT19#,ST195..SG,SGI199208-199608

main87961-2B510iCT190..SG199312-199408

main87961-2B530iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-2B660iAT19#,CT19#,ST195..SG,SGI199208-199608

main87910-2B670-A0iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87910-2B670-D0iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87910-2B670-D1iAT19#,CT19#,ST19#..SE,SX,SXI199208-199408

LIGHT BEIGE ME,3K9

main87910-2B670-F0iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87910-2B670-H0iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199408

MEDIUM TORQUOISE ME,749

main87910-2B680-A0iAT192,CT19#,ST19#..SE,SL,SX199302-199303

main87910-2B680-A1iST190..SEEXT199208-199303

BLACK,183 ,6M4

main87910-2B680-D0iAT191,ST190..SEEXT199208-199608

WINE RED MICA,3J8

main87910-2B680-D1iAT19#,CT19#,ST19#..SE,SX,SXI199303-199308

main87910-2B680-F0iCT19#,ST19#..SE,SL199301-199302

main87910-2B680-H0iAT19#,CT19#,ST19#..SE,SL,SX,SXI; CT190..SG199312-199408

main87910-2B690-A0iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

main87910-2B690-A1iCT19#,ST19#..SE,SEEXT199208-199303

main87910-2B690-D0iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

main87910-2B690-D1iCT19#,ST19#..SE,SEEXT199208-199408

main87910-2B690-F0iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

main87910-2B690-H0iCT19#,ST19#..SE,SEEXT199208-199408

main87910-2B750iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199303

BLACK(183,6M4)

main87910-2B751iAT192..SG199304-199408

main87910-2D040iAT19#,CT19#,ST19#..SE,SL,SX,SXI199303-199308

main87910-2D050iCT19#,ST19#..SE,SEEXT199303-199408

main87910-2D060iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87910-2D070iAT19#,CT19#,ST195..SE,SL,SX,SXI; AT191..SEEXT199408-199608

main87910-2D080iAT190,191,CT19#,ST195..SE,SEEXT,SXI199408-199608

87910FMIRROR ASSY, FENDER, RH

main87910-2B710iAT19#,CT19#,ST19#199208-199305

main87910-2D020iAT19#,CT19#,ST19#199305-199608

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-20250iAT19#,CT19#,ST19#199208-199608

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-2B660iAT19#,CT19#,ST195..SG,SGI199208-199608

main87940-2B670-A0iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87940-2B670-D0iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87940-2B670-D1iAT19#,CT19#,ST19#..SE,SX,SXI199208-199408

LIGHT BEIGE ME,3K9

main87940-2B670-F0iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87940-2B670-H0iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199408

MEDIUM TORQUOISE ME,749

main87940-2B680-A0iCT190..SG199312-199408

main87940-2B680-A1iST190..SEEXT199208-199303

BLACK,183 ,6M4

main87940-2B680-D0iAT192,CT19#,ST19#..SE,SL,SX199302-199303

main87940-2B680-D1iAT19#,CT19#,ST19#..SE,SX,SXI; CT190..SG199312-199408

main87940-2B680-F0iAT19#,CT19#,ST19#..SE,SL,SX,SXI199312-199608

main87940-2B680-H0iAT19#,CT19#,ST19#..SE,SL,SX,SXI; CT190..SG199312-199408

main87940-2B690-A0iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

main87940-2B690-A1iCT19#,ST19#..SE,SEEXT199208-199303

main87940-2B690-D0iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

main87940-2B690-D1iCT19#,ST19#..SE,SEEXT199208-199408

main87940-2B690-F0iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI199208-199608

main87940-2B690-H0iCT19#,ST19#..SE,SEEXT199208-199408

main87940-2B750iAT19#,CT19#,ST19#..SE,SL,SX,SXI199208-199303

BLACK(183,6M4)

main87940-2B751iAT192..SG199304-199408

main87940-2D040iAT19#,CT19#,ST19#..SE,SL,SX,SXI; CT190..SG199312-199408

main87940-2D050iCT19#,ST19#..SE,SEEXT199303-199408

main87940-2D060iAT19#,CT190..SG,SGI; CT195,ST195..SG199412-199608

main87940-2D070iAT19#,CT19#,ST195..SE,SL,SX,SXI; AT191..SEEXT199408-199608

main87940-2D080iAT190,191,CT19#,ST195..SE,SEEXT,SXI199408-199608

87940FMIRROR ASSY, FENDER, LH

main87940-2B710iAT19#,CT19#,ST19#199208-199305

main87940-2B860iAT19#,CT19#,ST19#199305-199608

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-20270iAT19#,CT19#,ST19#199208-199608

9010506185

main90105-06185

9015960493

main90159-60493

9017906097

main90179-06097

9331915016

main93319-15016

15 parts on this diagram · 1 diagram in section
