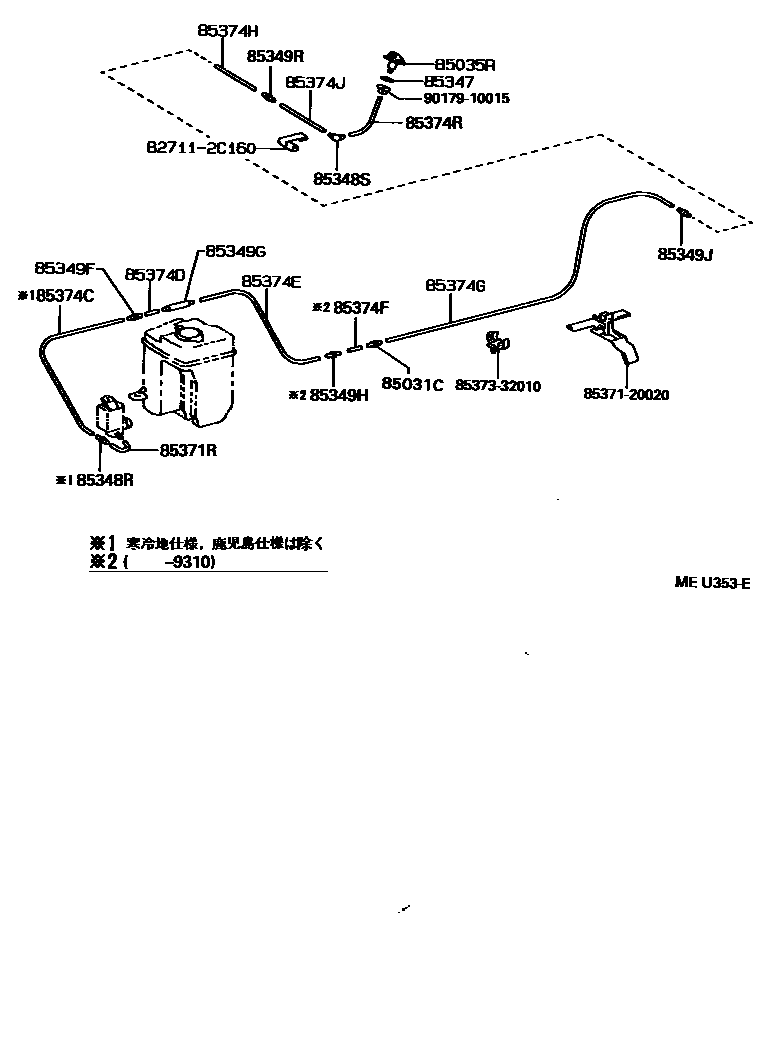

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iAT191,192,ST195..SEEXT,SL,SX199208-199608

sub85375-12520

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-20030iAT190,ST190..SEEXT,SL,SXI199208-199608

sub85391-22010

85347PACKING, REAR WASHER

main85347-12010iAT190,ST190..SEEXT,SL,SXI199208-199608

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAT190,CT19#,ST19#..SE,SEEXT,SL,SXI199208-199608

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iAT190,ST190..SEEXT,SL,SXI199208-199608

85349FJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAT190,CT19#,ST19#..SE,SL,SXI199208-199608

85349GJOINT, REAR WASHER HOSE, NO.2

main85349-32150iAT190,ST190..SEEXT,SL,SXI199208-199608

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-89122iCT19#,ST19#..SE199208-199310

85349JJOINT, REAR WASHER HOSE, NO.4

main85349-89122iAT190,ST190..SEEXT,SL,SXI199208-199608

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iAT191,192,ST195..SEEXT,SL,SX199208-199608

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85317-28040iAT190,CT19#,ST19#..SE,SL,SXI199208-199608

main90446-07001iAT191,192,ST195..SL,SX199208-199608

85374CHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.2)

main90446-07001iAT190,CT19#,ST19#..SE,SEEXT,SL,SXI199208-199608

85374DHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.3)

main90099-33080iAT19#,CT19#,ST195..SE,SL,SX,SXI199208-199608

85374EHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.4)

main90446-06013iAT190,ST190..SEEXT,SL,SXI199310-199608

main90446-06013iAT190..M;AT191,CT19#,ST19#..SE,SXI199310-199608

main90446-07001iAT190,ST190..SEEXT,SL,SXI199208-199310

main90446-07001iAT190,ST190..SEEXT,SL,SXI199208-199310

85374FHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.5)

main90099-33080iCT19#,ST19#..SE199208-199310

85374GHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.6)

main90099-33490iCT19#,ST19#..SE199208-199310

sub90099-33589

main90446-06292iAT190,ST190..SEEXT,SL,SXI199310-199608

85374HHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.7)

main90099-59077iCT19#,ST19#..SE199208-199310

sub90446-06013

main90446-06013iAT190,ST190..SEEXT,SL,SXI199310-199608

85374JHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.8)

main90446-06013iAT190,ST190..SEEXT,SL,SXI199208-199608

85374RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAT190,ST190..SEEXT,SL,SXI199208-199608

827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C160

8537120020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-20020

8537332010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32010

9017910015

main90179-10015

23 parts on this diagram · 1 diagram in section
