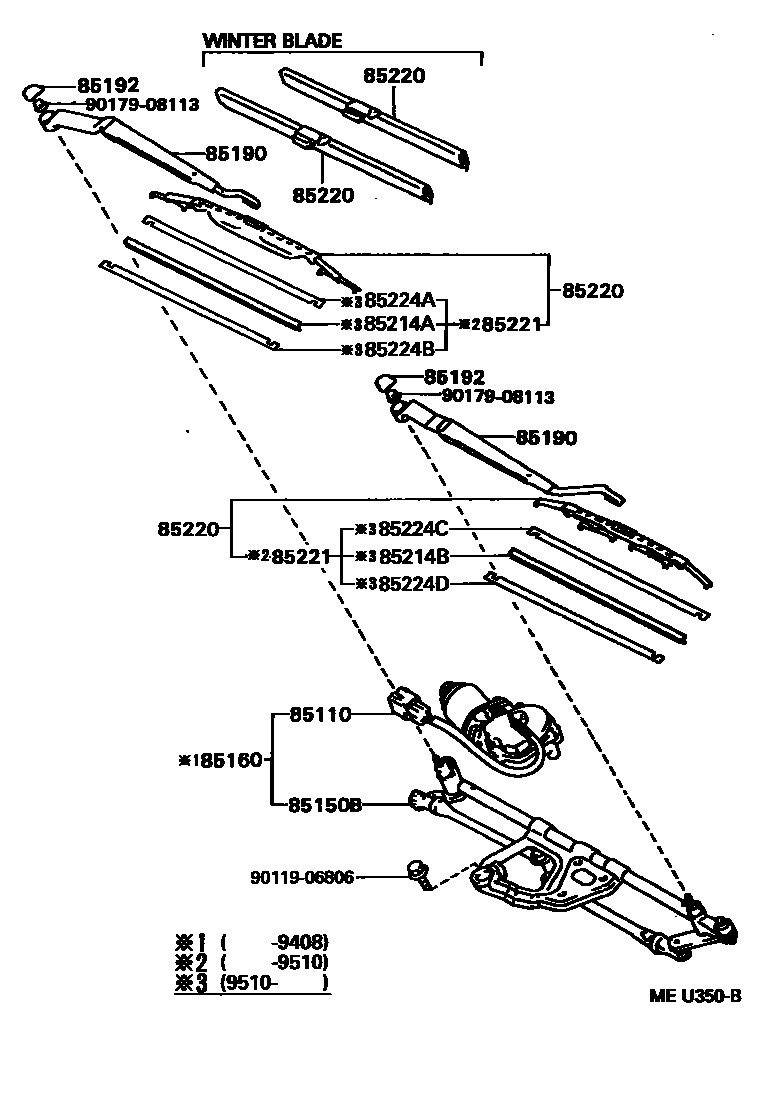

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20730iAT19#,CT19#,ST19#199208-199408

main85110-20740iAT19#,CT19#,ST19#199208-199408

main85110-20800iAT19#,CT19#,ST195199408-199608

main85110-20810iAT19#,CT19#,ST195199408-199608

85150BLINK ASSY, WIPER

main85150-20800iAT19#,CT19#,ST19#199208-199608

main85150-20810iAT19#,CT19#,ST19#199208-199608

85160LINK ASSY, WINDSHIELD WIPER

main85010-20200iAT19#,CT19#,ST19#199208-199408

main85010-20210iAT19#,CT19#,ST19#199208-199408

85190ARM ASSY, WINDSHIELD WIPER

main85211-20380iAT19#,CT19#,ST19#199208-199608

main85221-20350iAT19#,CT19#,ST19#199208-199608

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iAT19#,CT19#,ST19#199208-199608

85214ARUBBER, WIPER, RH

main85214-33060iAT19#,CT19#,ST195199510-199608

85214BRUBBER, WIPER, LH

main85214-20320iAT19#,CT19#,ST195199510-199608

85220BLADE ASSY, WINDSHIELD WIPER

main85212-20370iAT19#,CT19#,ST19#199208-199608

main85222-20310iAT19#,CT19#,ST19#199208-199608

main85291-22050iAT19#,CT19#,ST19#199208-199608

main85291-30030iAT19#,CT19#,ST19#199208-199608

85221BLADE, WINDSHIELD WIPER

main85213-20310iAT19#,CT19#,ST19#199208-199510

main85223-20310iAT19#,CT19#,ST19#199208-199510

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050iAT19#,CT19#,ST195199510-199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050iAT19#,CT19#,ST195199510-199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60050iAT19#,CT19#,ST195199510-199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60050iAT19#,CT19#,ST195199510-199608

9011906806

main90119-06806

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section
