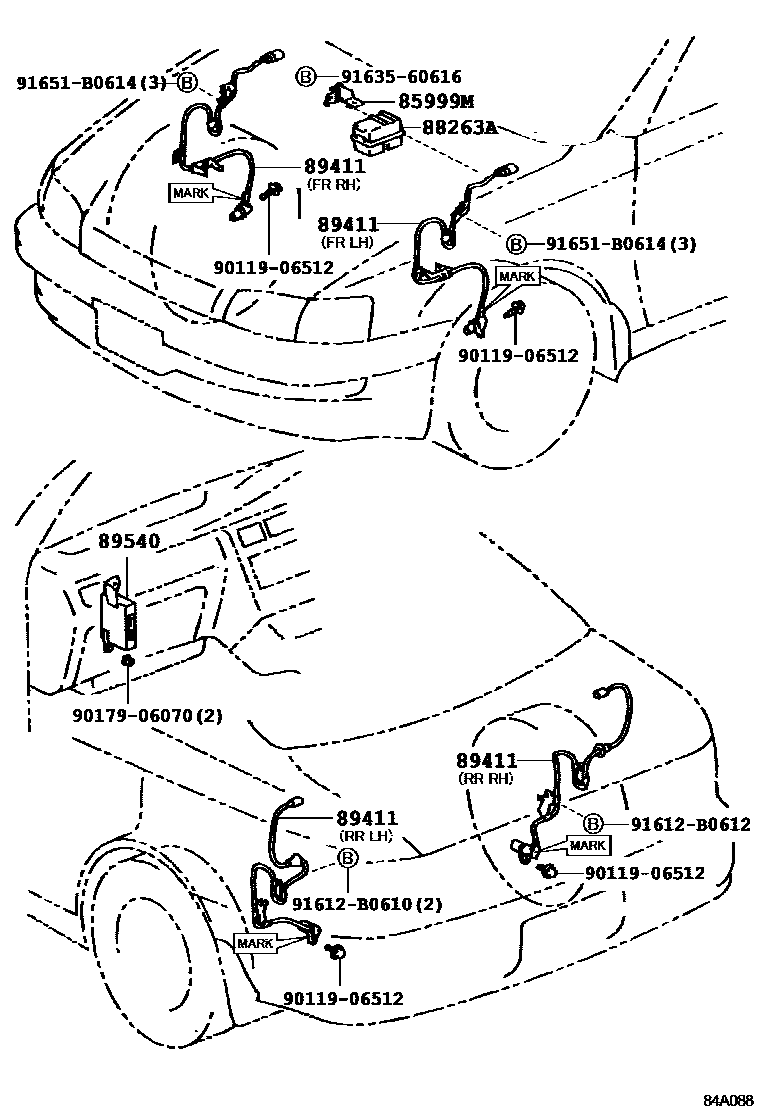

ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-20500iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI; AT190..S;AT19#,CT19#,ST19#..SG,SGI,SL,SX199208-199608

88263ARELAY, SKID CONTROL

main88263-12070iAT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI; CT19#,ST19#..SE,SEEXT199208-199408

main88263-32060iAT19#,CT19#,ST195..SG,SGI,SL,SX; AT190,191,CT19#,ST195..SE,SEEXT,SXI199408-199608

89411SENSOR, SPEED

main89542-20080iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI; AT190..S;AT19#,CT19#,ST19#..SG,SGI,SL,SX199208-199602

main89542-20130iAT19#,CT19#,ST195..SG,SGI,SL,SX; AT190,191,CT19#,ST195..SE,SEEXT,SXI199602-199608

main89543-20080iAT190..M;AT191,CT19#,ST19#..SE,SEEXT,SXI; AT190..S;AT19#,CT19#,ST19#..SG,SGI,SL,SX199208-199602

main89543-20130iAT19#,CT19#,ST195..SG,SGI,SL,SX; AT190,191,CT19#,ST195..SE,SEEXT,SXI199602-199608

main89545-20140iAT19#,CT190..SG,SGI,SL,SX; AT190,191,CT190..SE,SEEXT,SXI199601-199608

main89545-32030iAT190..M;AT191,CT190,ST190..SE,SEEXT,SXI; AT190..S;AT19#,CT190,ST190..SG,SGI,SL,SX199208-199601

main89545-32040iCT195,ST195..SE; CT195,ST195..SG,SX199208-199608

REAR RH

main89546-20140iAT19#,CT190..SG,SGI,SL,SX; AT190,191,CT190..SE,SEEXT,SXI199601-199608

main89546-32030iAT190..M;AT191,CT190,ST190..SE,SEEXT,SXI; AT190..S;AT19#,CT190,ST190..SG,SGI,SL,SX199208-199601

main89546-32040iCT195,ST195..SE; CT195,ST195..SG,SX199208-199608

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89540-20250iAT190..M;AT191,CT190,ST190..SE,SEEXT,SXI; AT190..S;AT19#,CT190,ST190..SG,SGI,SL,SX199211-199608

main89540-20270iAT19#,CT190,ST190..SG,SGI,SL,SX,SXI; CT190,ST190..SE,SEEXT199208-199211

main89541-12060iCT195,ST195..SE; CT195,ST195..SG,SX199208-199608

9011906512

main90119-06512

9017906070

main90179-06070

91612B0610

main91612-B0610

91612B0612

main91612-B0612

9163560616

main91635-60616

91651B0614

main91651-B0614

10 parts on this diagram · 2 diagrams in section
