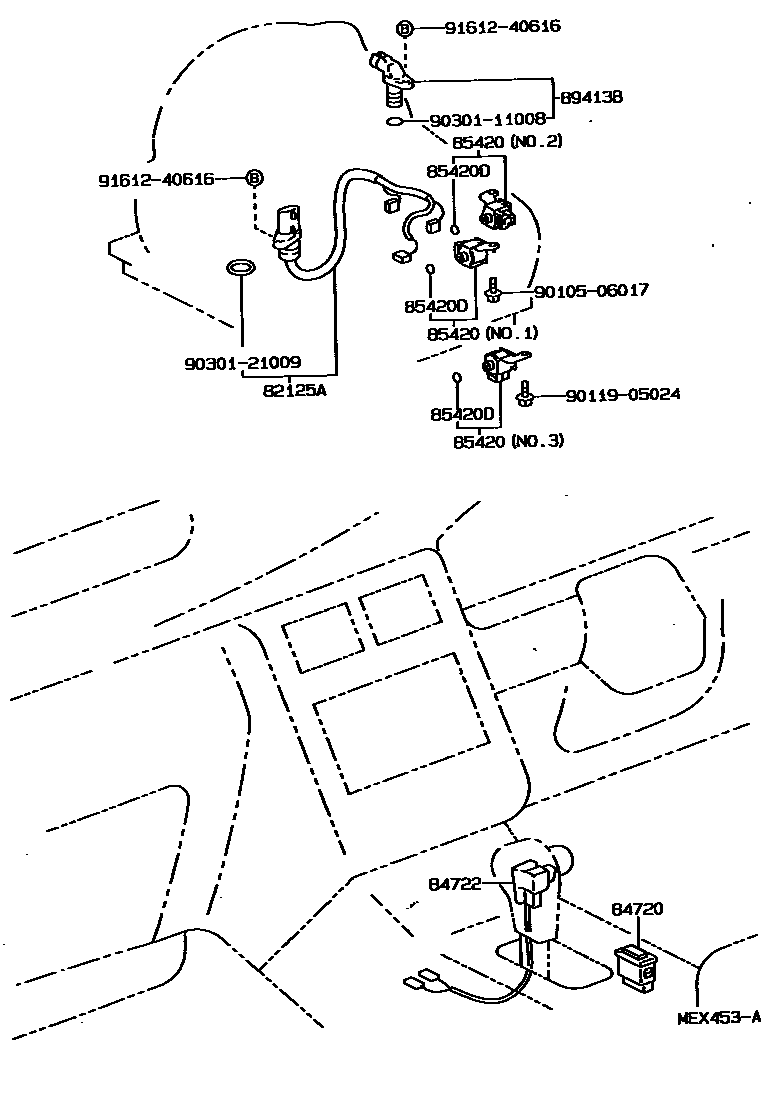

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

82125AWIRE, TRANSMISSION

main82125-12350iAT19#..ATM199208-199408

main82125-20160iST190..ATM199208-199408

main82125-20170iCT190..ATM199208-199512

main82125-20230iAT190,191..ATM199408-199608

main82125-20240iCT190..ATM199512-199608

main82125-32050iST195..ATM199208-199608

84720SWITCH ASSY, PATTERN SELECT

main84720-20080iAT19#,ST19#..ATM199208-199608

84722SWITCH, TRANSMISSION CONTROL

main84722-20110-C0iAT19#,CT190,ST19#..ATM..(SE,SEEXT,SG,SGI,SX,SXI); ST190..ATM..SL199208-199305

BLACK,TRIM1#; BLACK,TRIM1#,4#

main84722-20150-C0iAT19#,CT190,ST19#..ATM..(SE,SEEXT,SG,SGI,SX,SXI); AT191,ST190..ATM..SL199305-199608

BLACK,TRIM1#; BLACK,TRIM1#,4#

85420SOLENOID ASSY, TRANSMISSION

main85420-10011iCT190..ATM199208-199512

main85420-12062iST190..ATM199208-199408

main85420-12100iAT19#..ATM199208-199608

main85420-12120iAT19#..ATM199208-199608

main85420-12140iAT19#..ATM199208-199408

main85420-20160iAT190,191..ATM199408-199608

main85420-20180iCT190..ATM199512-199608

main85420-22080×2iST190..ATM199208-199408

main85420-32102iST195..ATM199208-199608

main85420-32120iST195..ATM199208-199608

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAT19#,ST19#..ATM; CT190..ATM199208-199608

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iST195..ATM199208-199408

9010506017

main90105-06017

9011905024

main90119-05024

9030111008

main90301-11008

9030121009

main90301-21009

9161240616

main91612-40616

11 parts on this diagram · 3 diagrams in section
