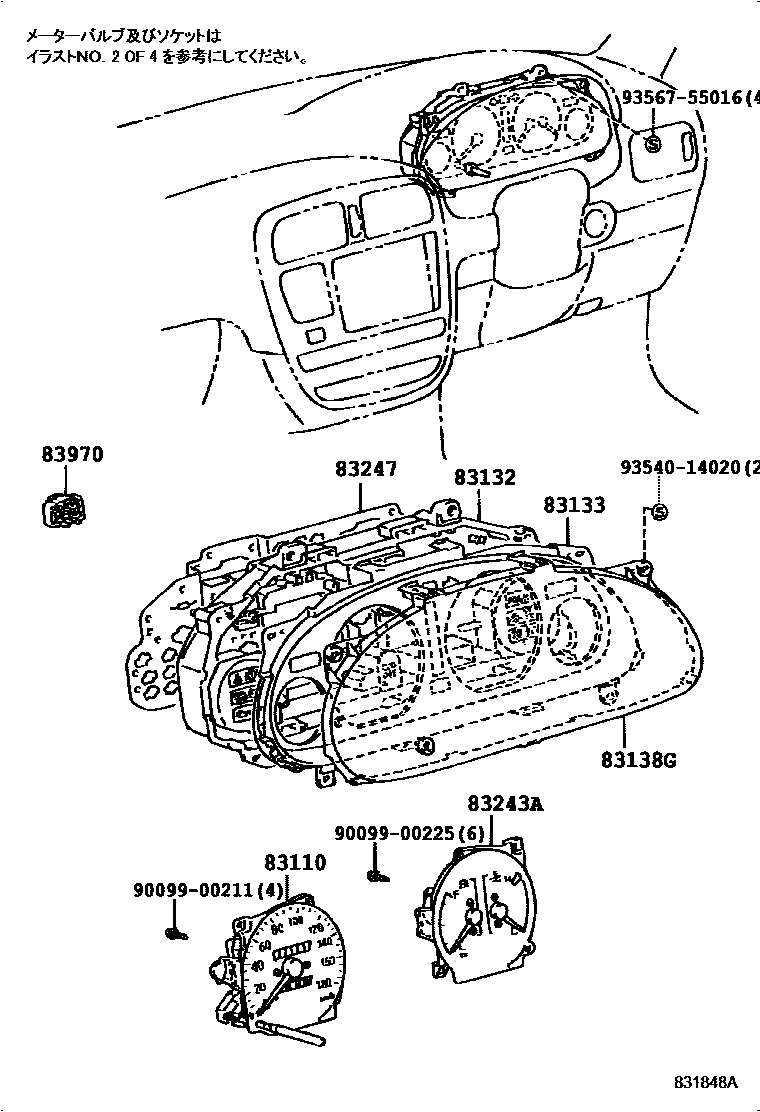

METER

0001 1��(�����) 0002 1��(�����) 0003 1����� & ���� - ��(�����) 0004 1����� & ���� - ��(�����) 0005 1 0006 1

83110SPEEDOMETER ASSY

main83110-2D410iAT192..MTM..SG;AT190,CT19#,ST195..SG,SGI199208-199304

main83110-2D420iAT19#,CT19#,ST195..SG,SGI199304-199608

main83110-2D430iAT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main83110-2D440iCT190..SG199412-199608

83132CASE, COMBINATION METER

main83132-2H670iAT19#,CT19#,ST19#..MTM..(SE,SL,SX,SXI)199208-199608

main83132-2H690iAT19#,CT190..ATM..(SG,SGI)199412-199608

main83132-2H710iAT19#,ST195..MTM..(SG,SGI)199208-199304

main83132-2H730iAT192..ATM..SG199208-199408

main83132-2H750iAT192..ATM..SG199208-199303

main83132-2H770iCT19#..MTM..SG199208-199304

main83132-2H790iCT190..ATM..SG199208-199304

main83132-2H810iAT19#,ST195..MTM..(SG,SGI)199304-199608

main83132-2H830iAT192..ATM..SG199305-199408

main83132-2H850iCT19#..MTM..SG199304-199608

main83132-2H870iCT190..ATM..SG199304-199608

main83132-2H890iAT19#,ST195..ATM..(SG,SGI)199408-199608

83133PLATE, COMBINATION METER, NO.1

main83133-20570iAT19#,CT190,ST19#..ATM..(SE,SEEXT,SL,SX,SXI)199208-199608

main83133-20590iAT19#,CT19#,ST19#..MTM..(SE,SL,SX,SXI)199208-199608

main83133-20610iAT19#,CT19#,ST195..MTM..(SG,SGI)199208-199304

main83133-20630iAT192..ATM..SG199303-199304

main83133-20650iAT19#,CT19#,ST195..MTM..(SG,SGI)199408-199608

main83133-20670iAT190,CT190,ST195..ATM..(SG,SGI)199304-199408

83138GGLASS, COMBINATION METER

main83138-2B310iAT19#,CT19#,ST19#199208-199608

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20570iAT19#,CT190..SG,SGI199412-199608

main83243-20610iAT192..ATM..SG199303-199304

main83243-20630iAT192..ATM..SG199208-199304

main83243-20750iAT191,CT19#,ST195..SE,SEEXT199408-199608

83247PLATE, METER CIRCUIT

main83247-21590iAT192,ST19#..MTM..SX199208-199408

main83247-21610iAT192,ST190..ATM..SX199208-199408

main83247-21630iST195..ATM..SX199208-199408

main83247-21650iAT190,CT19#,ST19#..MTM..(SE,SL,SXI)199208-199408

main83247-21670iAT190,ST190..ATM..(SE,SEEXT,SL,SXI)199208-199408

main83247-21690iST195..ATM..SE199208-199408

main83247-21710iCT190..ATM..SE199208-199408

main83247-21730iAT19#,CT19#,ST195..MTM..(SG,SGI)199208-199608

main83247-21750iAT192..ATM..SG199208-199408

main83247-21770iAT19#..ATM..(SG,SGI)199408-199608

main83247-21790iST195..ATM..SG199208-199608

main83247-21810iCT190..ATM..SG199208-199608

main83247-21850iST195..MTM..(SE,SX);AT19#,CT19#..SE,SEEXT,SL,SX,SXI199408-199608

main83247-21870iST195..ATM..(SE,SX)199408-199608

83970BUZZER ASSY, REVERSE WARNING

main83970-20010iAT19#,CT190,ST19#..ATM199208-199608

9009900211

main90099-00211

9009900225

main90099-00225

9354014020

main93540-14020

9356755016

main93567-55016

11 parts on this diagram · 6 diagrams in section
