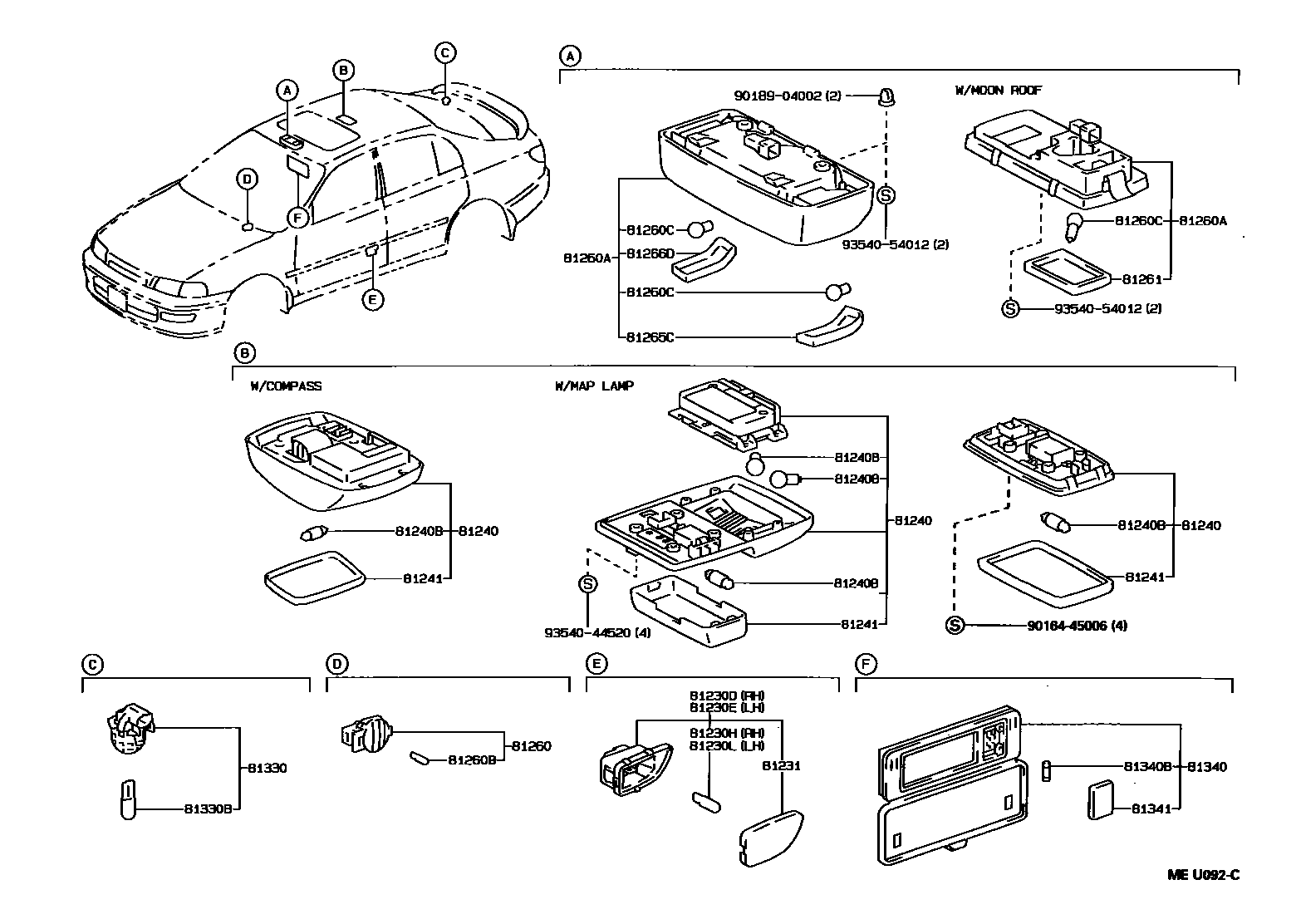

INTERIOR LAMP

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-20060iST190..SEEXT199208-199408

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81310-20040iST190..SEEXT199208-199408

81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)

main90981-11020iST190..SEEXT199208-199408

81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)

main90981-11020iST190..SEEXT199208-199408

81231LENS, COURTESY LAMP

main81231-20060iST190..SEEXT199208-199408

main81311-20040iST190..SEEXT199208-199408

81240LAMP ASSY, ROOM, NO.1

main81240-12020-B1iAT19#,CT19#,ST195199408-199608

GRAY,TRIM1#

main81240-12020-E0iAT19#,CT19#,ST19#..SG,SGI,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

main81240-12020-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

main81240-12020-S3iAT19#,CT19#,ST19#..SG,SGI,SL,SX,SXI199208-199307

LIGHT GRAY,TRIM1#

main81240-20130-B1iCT19#,ST19#..SE199208-199408

LIGHT GRAY,TRIM1#

main81240-20130-E1iCT19#,ST19#..SE199208-199408

LIGHT ROSE,TRIM4#

main81240-20150-B2iAT190,ST19#..SE,SL,SXI; ST190..SEEXT199208-199408

main81240-20150-E2iAT190,ST19#..SE,SXI; ST190..SEEXT199208-199408

main81240-32031-B0iAT190,191,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199307-199608

main81240-32031-E1iAT190,191,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

main81240-32031-E3iAT190,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

main81240-32031-S3iAT190,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199307

81240BBULB, ROOM LAMP, NO.1

main90981-12005×2iCT19#,ST19#..SE199208-199408

main90981-14004iST190..SEEXT199208-199408

main99132-12100iST190..SE,SL,SX;AT19#,CT19#,ST195199208-199608

81241LENS, ROOM LAMP, NO.1

main81241-12020iAT19#,CT19#,ST195199408-199608

main81241-20150iAT190,ST19#..SE,SL,SXI; ST190..SEEXT199208-199408

main81241-22040iCT19#,ST19#..SE199208-199408

main81241-32031iAT190,191,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

81260LAMP ASSY, GLOVE BOX

main81260-33010iCT19#,ST19#..SE,SEEXT199208-199408

81260ALAMP ASSY, MAP

main81260-20170-B1iCT19#,ST19#..SE,SEEXT199208-199212

LIGHT GRAY,TRIM1#

main81260-20170-E1iCT19#,ST19#..SE,SEEXT199208-199212

LIGHT ROSE,TRIM4#

main81260-20171-B1iAT191,CT19#,ST19#..SE,SEEXT199212-199608

LI.GRAY,TRIM1#

main81260-20171-E0iAT191,CT19#,ST195..SE,SEEXT199408-199608

ANTELOPE,TRIM4#

main81260-20171-E1iCT19#,ST19#..SE,SEEXT199212-199408

DK.ROSE,TRIM4#

main81260-22130-B0iAT190,191,ST19#..SL,SX,SXI; AT191,CT19#,ST19#..SE,SEEXT199208-199608

main81260-22130-E0iAT190,ST19#..SX,SXI; CT19#,ST19#..SE,SEEXT199208-199408

main81260-22130-E1iAT190,191,ST195..SX,SXI; AT191,CT19#,ST195..SE,SEEXT199408-199608

81260BBULB(FOR GLOVE BOX)

main90981-11018iCT19#,ST19#..SE,SEEXT199208-199408

81260CBULB(FOR MAP LAMP)

main90981-12005×2iAT191,CT19#,ST19#..SE,SEEXT199208-199608

main90981-12014iAT190,191,ST19#..SL,SX,SXI; AT191,CT19#,ST19#..SE,SEEXT199208-199608

81261LENS AND COVER, MAP LAMP

main81261-22130-B0iAT190,191,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SHADOW GRAY,TRIM1#

main81261-22130-E0iAT190,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

LIGHT ROSE,TRIM4#

main81261-22130-E1iAT190,191,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

LIGHT ANTELOPE,TRIM4#

81265CLENS, MAP LAMP, NO.1

main81265-20171iAT191,CT19#,ST19#..SE,SEEXT199208-199608

81266DLENS, MAP LAMP, NO.2

main81266-20171iAT191,CT19#,ST19#..SE,SEEXT199208-199608

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30090iAT19#,CT19#,ST19#199208-199608

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAT19#,CT19#,ST19#199208-199608

81340LAMP ASSY, VANITY

main81340-20030-B0iST190..SEEXT199208-199308

SHADOW GRAY,TRIM1#

main81340-20030-E0iST190..SEEXT199208-199308

DK.ROSE,TRIM4#

main81340-20050-B0iST190..SEEXT199308-199408

SHADOW GRAY,TRIM1#

main81340-20050-E0iST190..SEEXT199308-199408

DK. ROSE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-14007iST190..SEEXT199208-199408

81341LENS, VANITY LAMP

main81341-20030iST190..SEEXT199208-199408

9016445006

main90164-45006

9018904002

main90189-04002

9354044520

main93540-44520

9354054012

main93540-54012

24 parts on this diagram · 1 diagram in section
