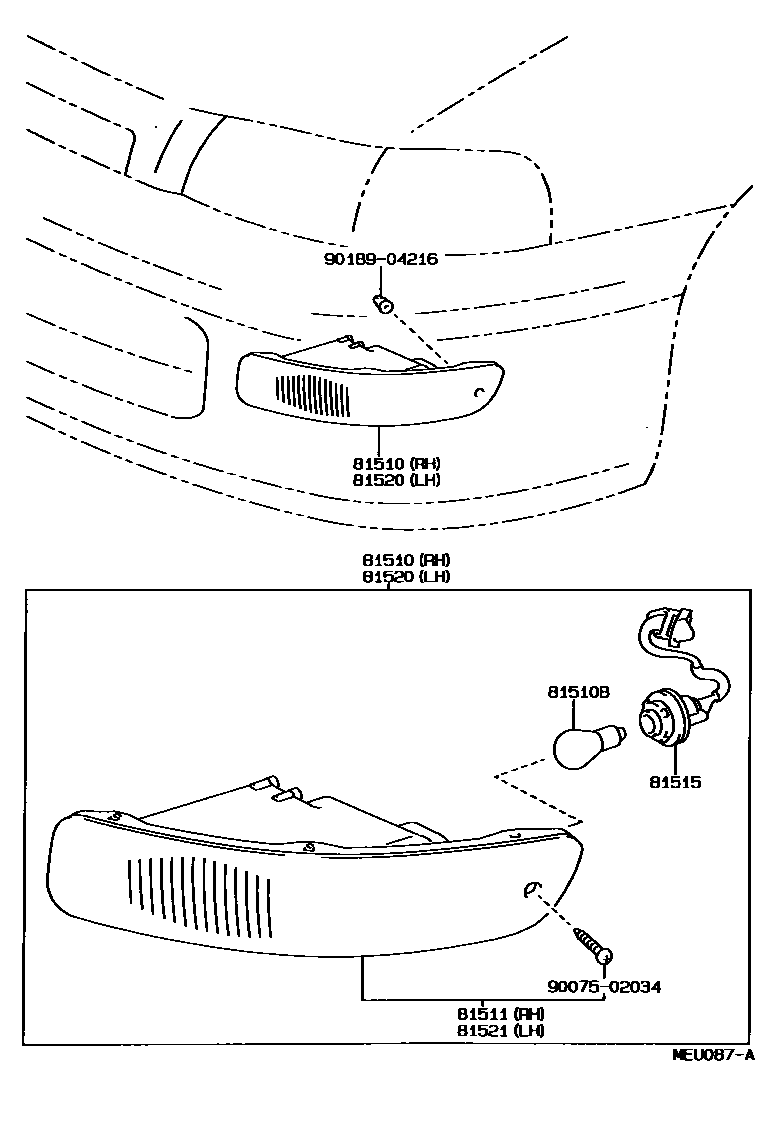

FRONT TURN SIGNAL LAMP

0001 1 0002 1��(���� ����)

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81210-20320iAT192,ST19#..SX199208-199212

main81510-20690iAT19#,CT19#,ST19#..SG,SGI,SX199208-199408

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iAT19#,CT19#,ST19#199208-199608

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81211-20320iAT192,ST19#..SX199208-199212

main81511-20690iAT19#,CT19#,ST195..SG,SGI199408-199608

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81215-20320×2iAT192,ST19#..SX199208-199212

main81515-20690×2iAT19#,CT19#,ST195..SG,SGI199408-199608

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81220-20310iAT192,ST19#..SX199208-199212

main81520-20680iAT19#,CT19#,ST19#..SG,SGI,SX199208-199408

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81221-20310iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI; AT19#,CT19#,ST195..SG,SGI199408-199608

main81521-20680iAT19#,CT19#,ST19#..SG,SGI,SX199208-199408

9007502034

main90075-02034

9018904216

main90189-04216

8 parts on this diagram · 2 diagrams in section
