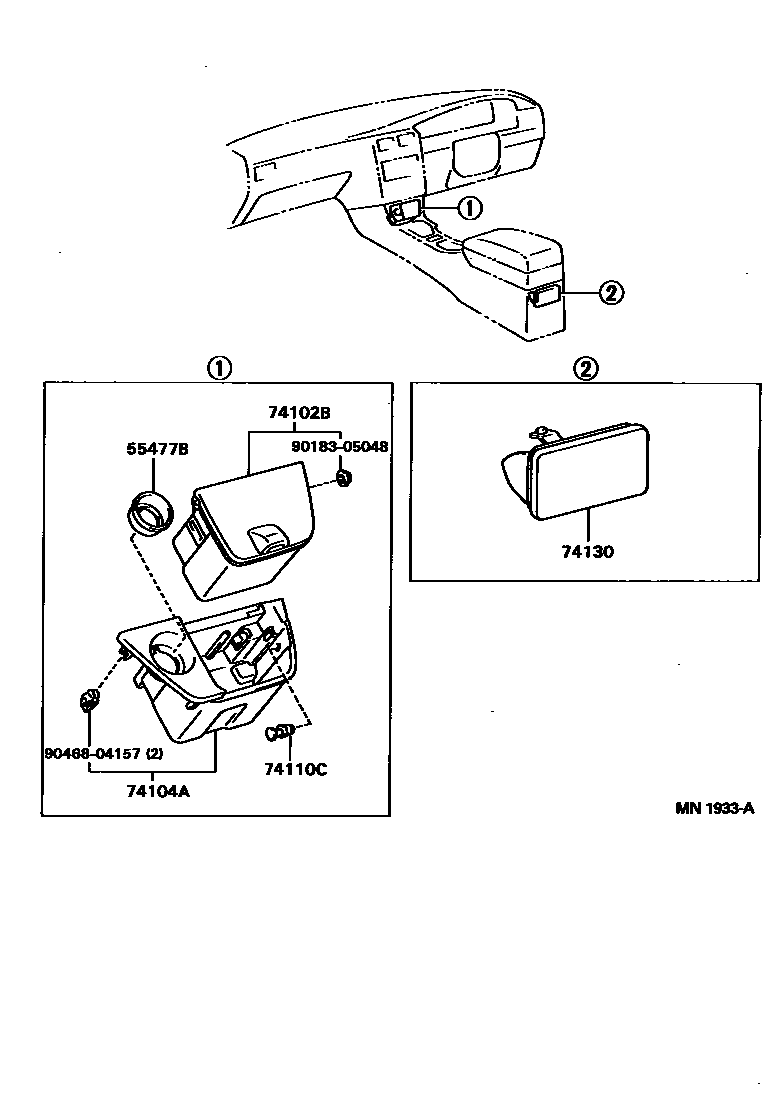

ASH RECEPTACLE

55477BBEZEL, CIGARETTE LIGHTER HOLE

main55477-20100iAT19#,CT19#,ST19#199208-199608

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-20170-C0iAT19#,CT19#,ST195..SG,SGI,SX,SXI199408-199608

BLACK,TRIM1#

main74102-20170-E0iAT19#,CT19#,ST195..SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74102-20220-C0iAT190,CT19#,ST19#..SE,SEEXT,SXI; ST190..SL199208-199308

BLACK,TRIM1#; BLACK,TRIM1#,4#

main74102-20221-C0iAT190,CT19#,ST19#..SE,SEEXT,SXI; ST190..SL199308-199408

BLACK,TRIM1#; BLACK,TRIM1#,4#

main74102-20221-E0iAT191,CT19#,ST195..SE,SEEXT199408-199608

ANTELOPE,TRIM4#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-20270-C0iAT19#,CT19#,ST19#..SG,SGI,SX199208-199408

BLACK,TRIM1#,4#

main74104-20270-E0iAT19#,CT19#,ST195..SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74104-20280-C0iAT190,CT19#,ST19#..SE,SEEXT,SXI; ST190..SL199208-199308

BLACK,TRIM1#; BLACK,TRIM1#,4#

main74104-20281-C0iAT190,CT19#,ST19#..SE,SEEXT,SXI; ST190..SL199308-199408

BLACK,TRIM1#; BLACK,TRIM1#,4#

main74104-20281-E0iAT191,CT19#,ST195..SE,SEEXT199408-199608

ANTELOPE,TRIM4#

74110CCLIP, FRONT ASH RECEPTACLE, INNER

main90467-07041-C0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199211

BLACK,BLACK,TRIM1#,4#

main90467-07108iAT19#,CT19#,ST19#199211-199608

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-22iAT19#,CT19#,ST195199408-199608

BLACK,TRIM1#

main74109-20080-E0iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

main74109-20080-E2iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DK.ROSE,TRIM4#

main74109-20080-P0iAT19#,CT19#,ST19#199208-199408

SHADOW GRAY,TRIM1#

9018305048

main90183-05048

9046804157

main90468-04157

7 parts on this diagram · 1 diagram in section
