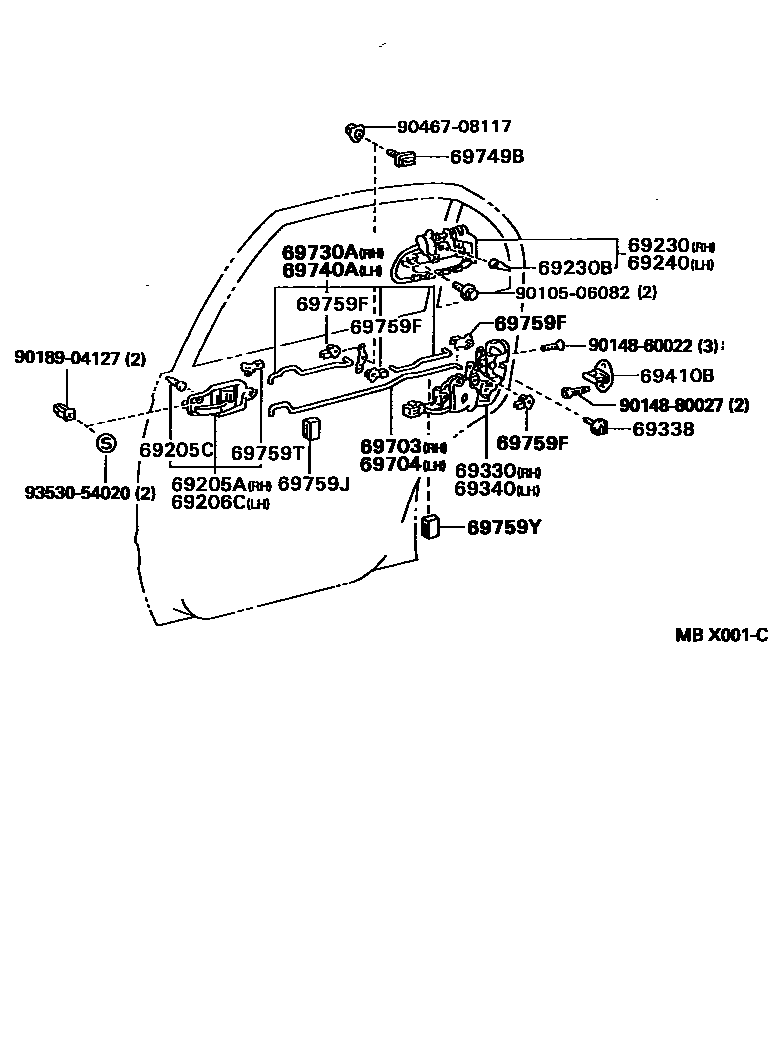

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20120-B1iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

sub69205-20120

main69205-20120-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DARK ROSE,TRIM4#

sub69205-20120

main69205-20120-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub69205-20120

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iAT19#,CT19#,ST19#199208-199608

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20120-B1iAT19#,CT19#,ST19#199208-199608

SHADOW GRAY,TRIM1#

sub69206-20120

main69206-20120-E0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI199208-199408

DARK ROSE,TRIM4#

sub69206-20120

main69206-20120-E1iAT19#,CT19#,ST195..SE,SEEXT,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

sub69206-20120

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20210iAT19#,CT19#,ST195..SG,SGI199208-199608

sub69230-21040

main69230-20220-A0iAT192..SG199304-199408

main69230-20220-A0iCT190..SG;AT192,ST190..SX199305-199307

main69230-20220-A0iCT190..SG199308-199408

main69230-20220-A0iAT19#,CT19#,ST195..SG,SGI199408-199608

main69230-20220-A0iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SUPER WHITE 2,040

main69230-20220-A0iCT195,ST195..SG199412-199608

main69230-20220-B0iAT19#,CT190..SG,SGI199412-199608

main69230-20220-B0iCT190..SG199308-199408

main69230-20220-B0iCT190..SG;AT192,ST190..SX199305-199307

main69230-20220-B0iAT19#,CT19#,ST195..SG,SGI199408-199608

main69230-20220-B0iAT192..SG199304-199408

main69230-20220-B0iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

DARK BLUEISH GRAY ME,183

main69230-20220-C0iAT19#,CT190..SG,SGI199408-199608

main69230-20220-C0iAT19#,CT190..SG,SGI199412-199608

main69230-20220-C0iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199608

BLACK ME,205

main69230-20220-D2iCT190..SG199308-199408

main69230-20220-D2iCT195,ST195..SG199412-199608

main69230-20220-D2iAT19#,CT190..SG,SGI199408-199608

main69230-20220-D2iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

WINE RED MICA,3J8

main69230-20220-D2iCT190..SG;AT192,ST190..SX199305-199307

main69230-20220-D2iAT192..SG199304-199408

main69230-20220-D3iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

LIGHT BEIGE ME,3K9

main69230-20220-D3iCT190..SG199308-199408

main69230-20220-F0iCT195,ST195..SG199412-199608

main69230-20220-F0iCT190..SG;AT192,ST190..SX199305-199307

main69230-20220-F0iAT192..SG199304-199408

main69230-20220-F0iCT190..SG199308-199408

main69230-20220-F0iAT19#,CT19#,ST195..SG,SGI199408-199608

main69230-20220-F0iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

PALE YELLOW OPAL,574

main69230-20220-G1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

DK.MOSS GREEN MICA M,6M4

main69230-20220-G1iCT190..SG199308-199408

main69230-20220-G4iAT19#,CT190..SG,SGI199604-199608

DK GREEN MICA,6M1

main69230-20220-G4iAT19#,CT190..SG,SGI199604-199608

main69230-20220-H1iCT190..SG199308-199408

main69230-20220-H1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

MEDIUM TORQUOISE ME,749

main69230-20220-J2iAT19#,CT190..SG,SGI199408-199608

main69230-20220-J2iAT19#,CT190..SG,SGI199412-199608

main69230-20220-J2iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199608

DK.BLUE MM,8G5

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iAT19#,CT19#,ST19#199208-199608

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20210iAT19#,CT19#,ST195..SG,SGI199208-199608

sub69240-21040

main69240-20220-A0iCT195,ST195..SG199412-199608

main69240-20220-A0iCT190..SG;AT192,ST190..SX199305-199307

main69240-20220-A0iAT192..SG199304-199408

main69240-20220-A0iCT190..SG199308-199408

main69240-20220-A0iAT19#,CT19#,ST195..SG,SGI199408-199608

main69240-20220-A0iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

SUPER WHITE 2,040

main69240-20220-B0iCT195,ST195..SG199412-199608

main69240-20220-B0iCT190..SG199308-199408

main69240-20220-B0iAT19#,CT190..SG,SGI199408-199608

main69240-20220-B0iCT190..SG;AT192,ST190..SX199305-199307

main69240-20220-B0iAT192..SG199304-199408

main69240-20220-B0iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

DARK BLUEISH GRAY ME,183

main69240-20220-C0iCT195,ST195..SG199412-199608

main69240-20220-C0iAT19#,CT190..SG,SGI199408-199608

main69240-20220-C0iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199608

BLACK ME,205

main69240-20220-D2iAT19#,CT190..SG,SGI199412-199608

main69240-20220-D2iAT19#,CT190..SG,SGI199408-199608

main69240-20220-D2iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

WINE RED MICA,3J8

main69240-20220-D2iCT190..SG;AT192,ST190..SX199305-199307

main69240-20220-D2iCT190..SG199308-199408

main69240-20220-D2iAT192..SG199304-199408

main69240-20220-D3iCT190..SG199308-199408

main69240-20220-D3iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI199208-199408

LIGHT BEIGE ME,3K9

main69240-20220-F0iAT19#,CT190..SG,SGI199408-199608

main69240-20220-F0iCT190..SG199308-199408

main69240-20220-F0iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

PALE YELLOW OPAL,574

main69240-20220-F0iCT195,ST195..SG199412-199608

main69240-20220-F0iCT190..SG;AT192,ST190..SX199305-199307

main69240-20220-F0iAT192..SG199304-199408

main69240-20220-G1iCT190..SG199308-199408

main69240-20220-G1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

DK.MOSS GREEN MICA M,6M4

main69240-20220-G4iAT19#..SX,SXI199604-199608

DK GREEN MICA,6M1

main69240-20220-G4iAT19#..SX,SXI199604-199608

main69240-20220-H1iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199408

MEDIUM TORQUOISE ME,749

main69240-20220-H1iCT190..SG199308-199408

main69240-20220-J2iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199408-199608

DK.BLUE MM,8G5

main69240-20220-J2iAT19#,CT19#,ST195..SG,SGI199408-199608

main69240-20220-J2iCT195,ST195..SG199412-199608

69330LOCK ASSY, REAR DOOR, RH

main69305-20070iAT19#,CT19#,ST195..SG,SGI199208-199608

main69305-20080iCT190..SG199308-199408

main69305-20080iAT19#,ST19#..SL,SX,SXI199208-199608

main69305-20080iCT190..SG199412-199608

main69305-20090iAT191,CT19#,ST19#..SE,SEEXT199208-199608

69338KNOB, CHILD PROTECTOR LOCK LEVER

main69338-32010iAT19#,CT19#,ST19#199208-199608

69340LOCK ASSY, REAR DOOR, LH

main69306-20070iAT19#,CT19#,ST195..SG,SGI199208-199608

main69306-20080iAT19#,ST19#..SL,SX,SXI199208-199608

main69306-20080iCT190..SG199308-199408

main69306-20080iCT190..SG199412-199608

main69306-20090iAT191,CT19#,ST19#..SE,SEEXT199208-199608

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iAT19#,CT19#,ST19#199208-199608

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-20030iAT19#,CT19#,ST19#199208-199608

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-20030iAT19#,CT19#,ST19#199208-199608

69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH

main69730-20040iAT19#,CT19#,ST19#199208-199608

69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH

main69740-20040iAT19#,CT19#,ST19#199208-199608

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32030iAT19#,CT19#,ST19#199208-199608

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20380iAT19#,CT19#,ST19#199208-199608

LH,BLACK

main69759-24030iAT19#,CT19#,ST19#199208-199608

RH,RED

main69759-24050iAT19#,CT19#,ST19#199208-199608

GREEN

main69759-24060iAT19#,CT19#,ST195199208-199608

GRAY

69759JSILENCER, DOOR LOCK LINK

main69759-12060iAT19#,CT19#,ST19#199208-199608

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iAT19#,CT19#,ST19#199208-199408

LH,PINK

main69759-14050iAT19#,CT19#,ST195199408-199608

PINK

main69759-24070iAT19#,CT19#,ST195199408-199608

main69759-24070iAT19#,CT19#,ST19#199208-199408

RH,YELLOW

69759YSILENCER, REAR DOOR LOCK LINK

main69759-12060iAT19#,CT19#,ST19#199208-199608

9010506082

main90105-06082

9014860022

main90148-60022

9014880027

main90148-80027

9018904127

main90189-04127

9046708117

main90467-08117

9353054020

main93530-54020

25 parts on this diagram · 1 diagram in section
