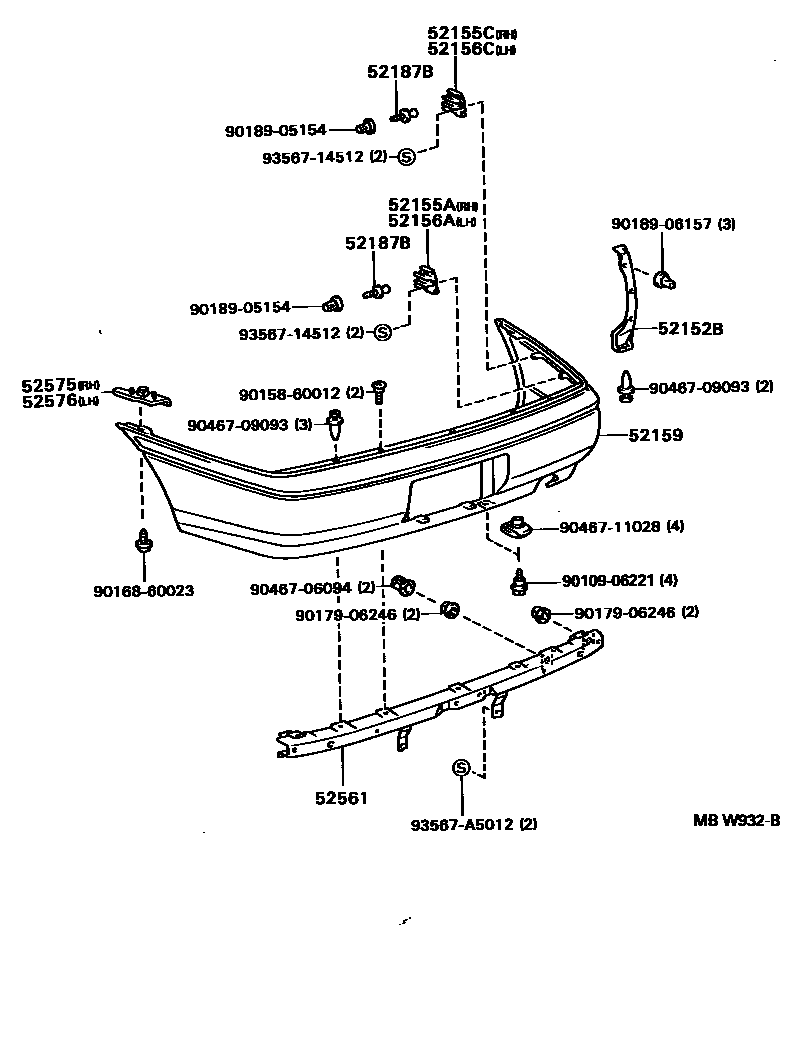

REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52155ASUPPORT, REAR BUMPER SIDE, RH
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52159COVER, REAR BUMPER
SUPER WHITE 2,040
DARK BLUEISH GRAY ME,183
BLACK ME,205
WINE RED MICA,3J8
LIGHT BEIGE ME,3K9
PALE YELLOW OPAL,574
DK.MOSS GREEN MICA M,6M4
DK GREEN MICA,6M1
MEDIUM TORQUOISE ME,749
DK.BLUE MM,8G5
52187BGUIDE, REAR BUMPER LOCATION
52561RETAINER, REAR BUMPER, UPPER CENTER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
9010906221
main90109-06221
9015860012
main90158-60012
9016860023
main90168-60023
9017906246
main90179-06246
9018905154
main90189-05154
9018906157
main90189-06157
9046706094
main90467-06094
9046709093
main90467-09093
9046711028
main90467-11028
9356714512
main93567-14512
93567A5012
main93567-A5012
21 parts on this diagram · 1 diagram in section
