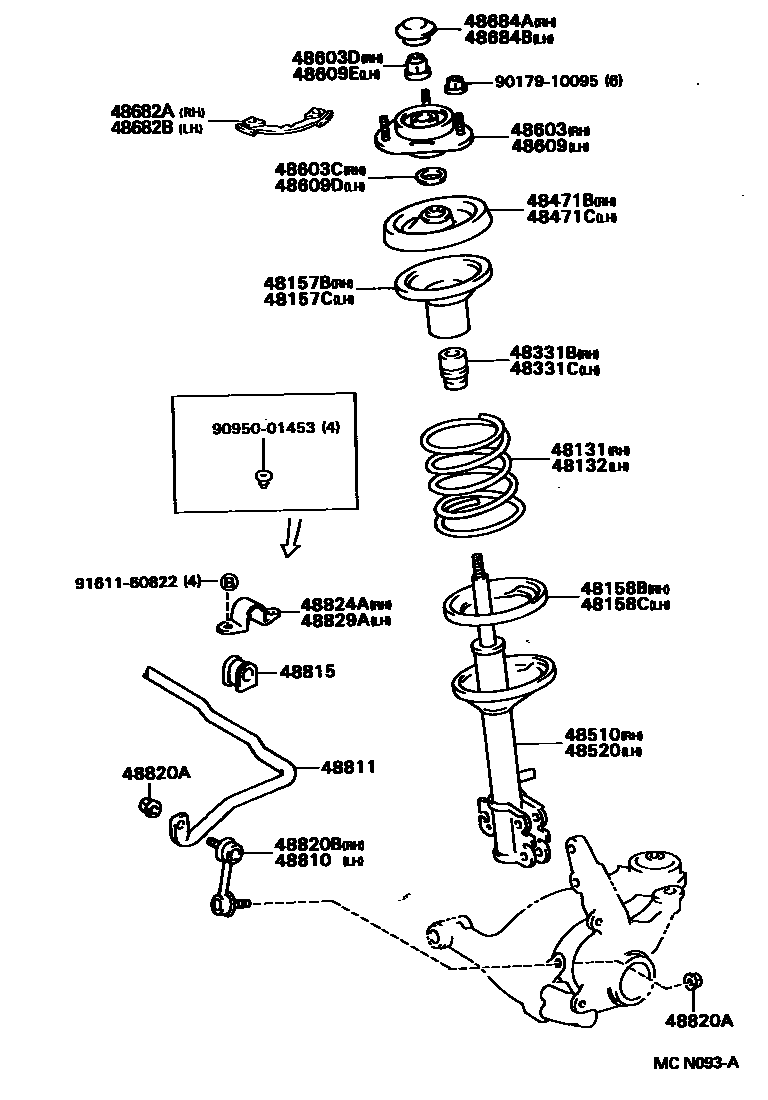

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
175/70R14,5.5JJ
175/70R14,5.5JJ
sub48131-2P290
sub48131-2P310
sub48131-2P020
sub48131-2S520
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-20850
sub48510-20710
sub48510-29346
sub48510-29455
sub48510-20871
sub48510-29455
sub48510-29337
sub48510-29338
sub48510-29445
sub48510-29378
sub48510-29445
sub48510-2B031
sub48510-29337
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-20850
sub48520-20710
sub48520-29166
sub48520-29265
sub48520-20871
sub48520-29265
sub48520-29157
sub48520-29158
sub48520-29255
sub48520-29188
sub48520-29335
sub48520-29255
sub48520-2B031
sub48520-29157
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
175/70R14,5.5JJ
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
175/70R14,5.5JJ
48810LINK ASSY, FRONT STABILIZER, LH
sub48810-44010
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
sub48820-44010
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9017910095
main90179-10095
9095001453
main90950-01453
9161160822
main91611-60822
32 parts on this diagram · 2 diagrams in section
