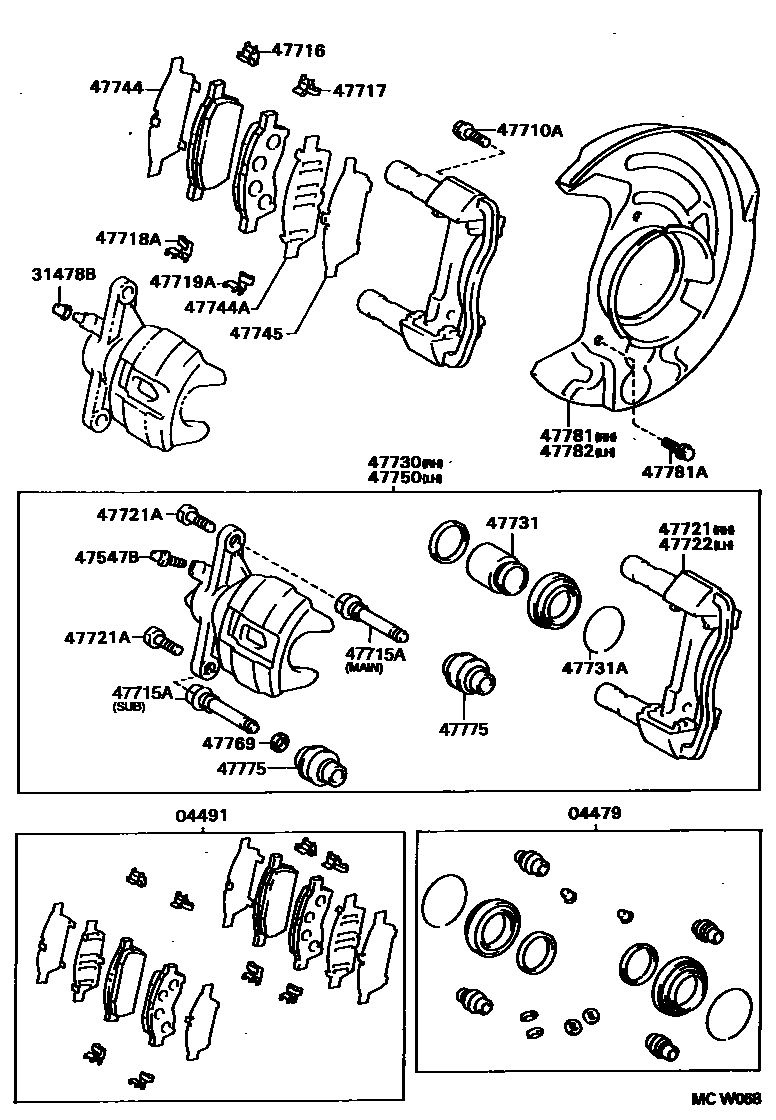

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1175/70R14,������ 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20170iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main04479-20170iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main04479-32021iAT19#..SG,SGI199208-199608

04491PAD KIT, DISC BRAKE, FRONT

main04491-12610iAT19#..SG,SGI199208-199505

sub04465-12140

main04491-20880iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199505

sub04465-20110

main04491-20880iAT19#..SG,SGI199408-199505

175/70R14,5.5JJ

sub04465-20110

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT19#,CT19#,ST19#199208-199608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAT19#,CT19#,ST19#199208-199608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAT19#,CT19#,ST19#199208-199608

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199212

main47715-50010iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199212-199608

SUB PIN SIDE

main47715-50030iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199212-199608

MAIN PIN SIDE

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32031iAT19#..SG,SGI199208-199608

main47716-33010iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47716-33010iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main47716-33020iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47717-32031iAT19#..SG,SGI199208-199608

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33010iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33020iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20350iAT19#..SG,SGI199208-199608

main47721-20370iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47721-20370iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main90105-08164iAT19#..SG,SGI199408-199608

main90119-09003iAT19#..SG,SGI199208-199608

main90119-09004iAT19#..SG,SGI199208-199608

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20350iAT19#..SG,SGI199208-199608

main47722-20080iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47722-20080iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20460iAT19#..SG,SGI199208-199608

main47730-20480iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47730-20480iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

47731PISTON, FRONT DISC BRAKE

main47731-12130iAT19#..SG,SGI199208-199608

main47731-20190iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47731-20190iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iAT19#..SG,SGI199208-199608

main90522-66001iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main90522-66001iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main47744-20120iCT19#,ST19#199208-199608

main47744-32010iAT19#..SG,SGI199208-199608

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-33010iCT19#,ST19#199208-199608

main47744-33010iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main47745-32040iAT19#..SG,SGI199208-199608

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-32040iAT19#..SG,SGI199208-199608

main47745-33010iAT19#..SEEXT,SL,SX,SXI199208-199608

main47745-33010iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20460iAT19#..SG,SGI199208-199608

main47750-20480iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main47750-20480iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAT19#..SG,SGI199208-199608

main47769-50010iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main47769-50010iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16020iAT19#..SG,SGI199208-199405

main47775-20080iCT19#,ST195199507-199608

175/70R14,5.5JJ

sub47775-30070

main47775-20080iCT19#,ST195;AT19#..SEEXT,SL,SX,SXI199208-199507

sub47775-30070

main47775-32010iAT19#..SG,SGI199405-199608

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20280iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47781-20280iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main47781-20290iAT19#..SG,SGI199208-199608

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAT19#,CT19#,ST19#199208-199608

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20280iAT19#..SG,SGI199408-199608

175/70R14,5.5JJ

main47782-20280iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main47782-20290iAT19#..SG,SGI199208-199608

25 parts on this diagram · 3 diagrams in section
