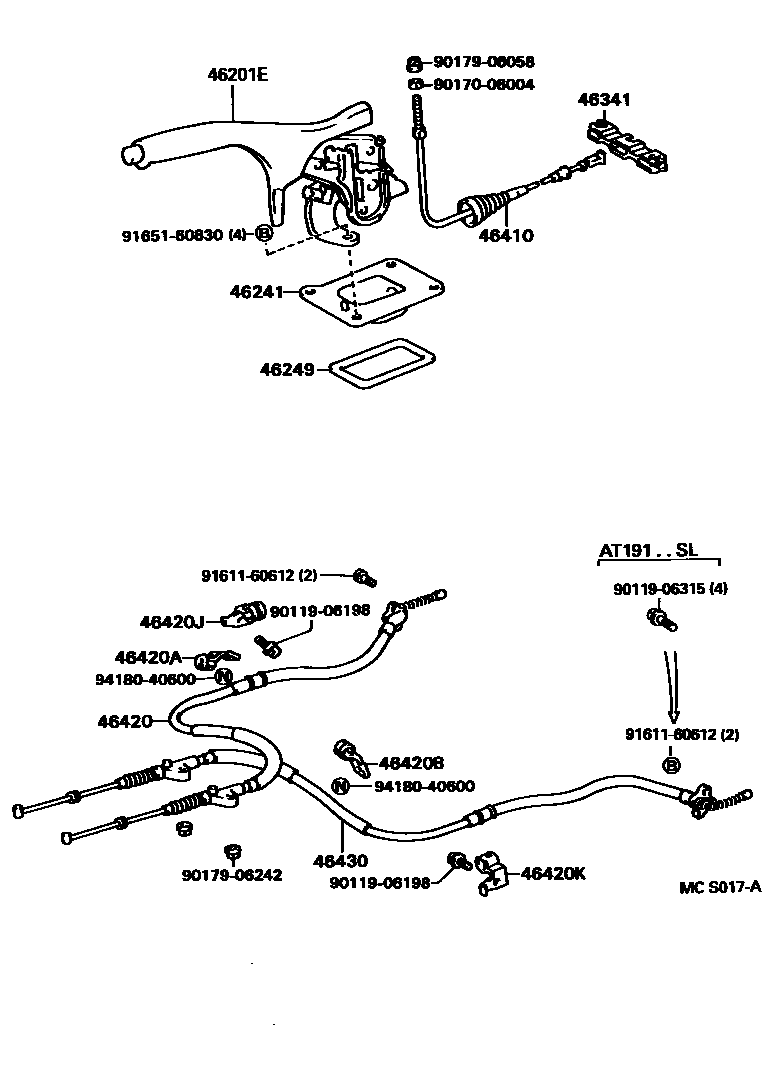

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20230-C0iAT19#,CT19#,ST19#..SE,SEEXT,SG,SGI,SX,SXI; AT191,ST190..SL199208-199608

BLACK,TRIM1#; BLACK,TRIM1#,4#

46241BOOT, PARKING BRAKE LEVER

main46241-20120iAT19#,CT19#,ST19#199208-199608

46249SHIELD, PARKING BRAKE HOLE

main46249-20050iAT19#,CT19#,ST19#199208-199608

46341EQUALIZER, PARKING BRAKE

main46341-12020iAT19#,CT190,ST190199208-199211

main46341-20090iAT19#,CT190,ST190199211-199511

main46341-20100iCT195,ST195199211-199608

main46341-24010iCT195,ST195199208-199211

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20380iAT19#,CT190,ST190199208-199608

main46410-20390iCT195,ST195199208-199608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20350iAT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI199208-199210

main46420-20351iAT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI199210-199608

main46420-20360iAT191,ST190..SL199208-199608

main46420-20370iCT195,ST195199208-199608

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01771iAT19#,CT190,ST190199208-199608

main90949-01775iCT195,ST195199208-199608

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01772iAT19#,CT190,ST190199208-199608

main90949-01776iCT195,ST195199208-199608

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46451-20020iAT19#,CT190,ST190199211-199608

main90949-01665iCT195,ST195199208-199608

main90949-01709iAT19#,CT190,ST190199208-199211

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46451-20030iAT19#,CT190,ST190199211-199608

main90949-01711iAT19#,CT190,ST190199208-199211

main90949-01777iCT195,ST195199208-199608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20360iAT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI199208-199210

main46430-20361iAT19#,CT190,ST190..SE,SEEXT,SG,SGI,SX,SXI199210-199608

main46430-20450iAT191,ST190..SL199208-199608

main46430-20460iCT195,ST195199208-199608

9011906198

main90119-06198

9011906315

main90119-06315

9017006004

main90170-06004

9017906058

main90179-06058

9017906242

main90179-06242

9161160612

main91611-60612

9165160830

main91651-60830

9418040600

main94180-40600

19 parts on this diagram · 3 diagrams in section
