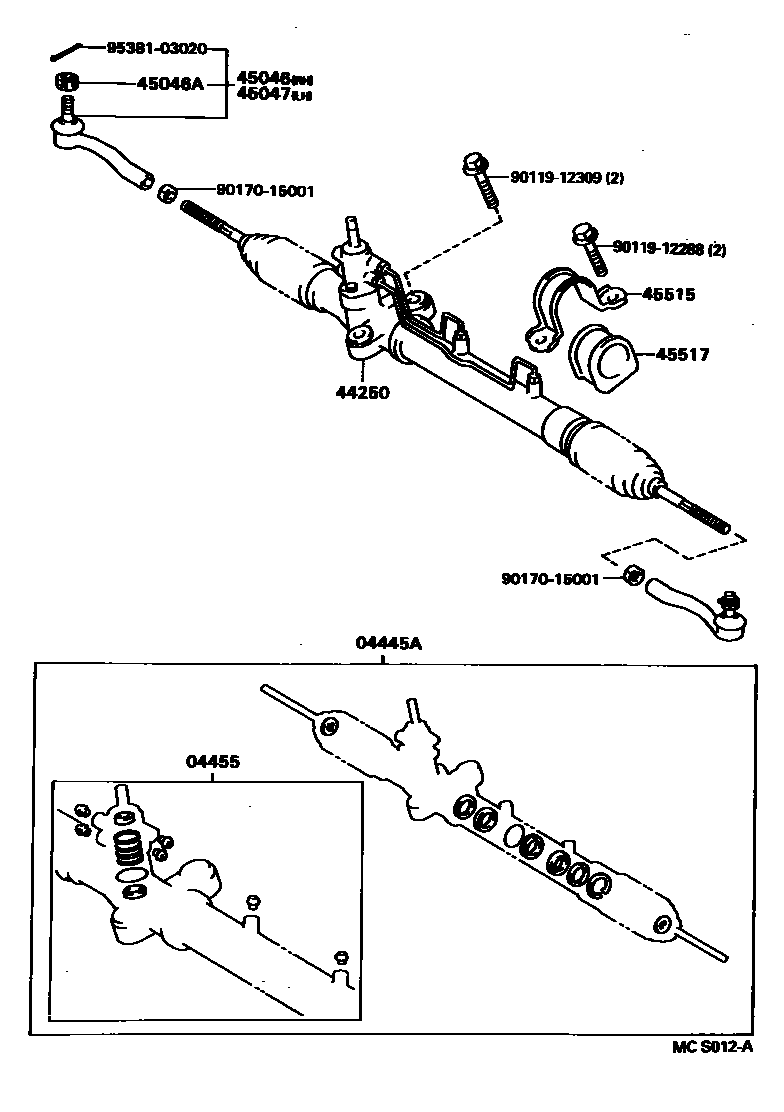

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20140iCT190..SG199208-199405

sub04445-20200

main04445-20160iCT190..SE;CT195,ST195199208-199411

sub04445-20161

main04445-20161iCT190..SE;CT195,ST195199411-199608

main04445-20170iAT19#,ST190199208-199608

main04445-20200iCT190..SG199405-199608

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20120iCT19#,ST195199208-199608

main04455-20130iAT19#,ST190199208-199608

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-20550iCT190..SG199208-199601

sub44250-20690

main44250-20560iAT19#..SG,SGI,SX199208-199512

sub44250-20680

main44250-20570iCT190..SE199208-199601

sub44250-20620

main44250-20590iCT195,ST195199208-199601

sub44250-20732

sub44410-2B181

main44250-20600iAT190,191,ST190..SE,SEEXT,SL,SX,SXI199208-199512

sub44250-20610

main44250-20610iAT190,191..SEEXT,SL,SXI199512-199606

sub44250-20611

main44250-20611iAT190,191..SEEXT,SL,SXI199606-199608

main44250-20620iCT190..SE199601-199605

sub44250-20621

main44250-20621iCT190..SE199605-199608

main44250-20680iAT19#..SG,SGI,SX199512-199606

sub44250-20681

main44250-20681iAT19#..SG,SGI,SX199606-199608

main44250-20690iCT190..SG199601-199608

sub44250-20691

main44250-20731iCT195,ST195199601-199608

sub44250-20732

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCT195,ST195199208-199608

main45046-29275iAT19#,CT190,ST190199208-199511

sub45046-29335

main45046-29335iAT19#,CT190199511-199608

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAT19#,CT19#,ST19#199208-199608

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCT195,ST195199208-199608

main45047-29075iAT19#,CT190,ST190199208-199511

sub45047-29105

main45047-29105iAT19#,CT190199511-199608

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-20150iCT190199208-199608

main45515-20160iAT19#,ST190199208-199608

main45515-20180iCT195,ST195199208-199408

main45515-20280iCT195,ST195199408-199608

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-20130iCT195,ST195199208-199608

main45517-20140iCT190..SG199208-199608

main45517-20150iCT190..SE199208-199608

sub45517-20250

main45517-20190iAT19#,ST190199208-199608

sub45517-44010

9011912288

main90119-12288

9011912309

main90119-12309

9017015001

main90170-15001

9538103020

main95381-03020

12 parts on this diagram · 5 diagrams in section
