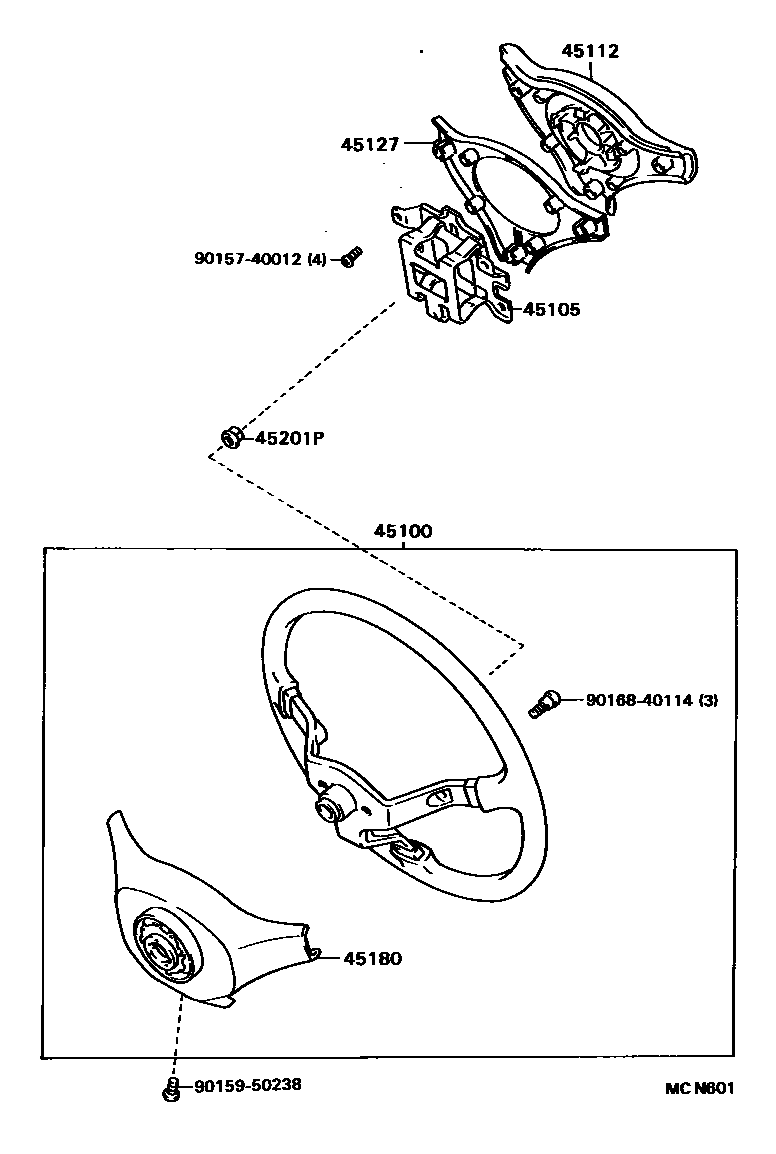

STEERING WHEEL

0001 1TYPE 1 0002 1TYPE 2 0003 1 0004 1SRS ������ 0005 1 0006 1LEATHER TYPE 0007 1SRS �������

45100WHEEL ASSY, STEERING

main45100-2B080-C0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199408-199608

main45100-2B080-E1iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199408-199608

main45100-2B180-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

main45100-2B200-C0iST190..SEEXT; ST190..SL;AT191..SEEXT,SL199208-199608

main45100-2B200-E0iAT191..SEEXT199408-199608

main45100-2B210-C0iST190..SEEXT; ST190..SL199208-199309

main45100-2B211-C0iST190..SEEXT; ST190..SL199309-199312

main45100-2B212-C0iST190..SEEXT; ST190..SL199312-199408

main45100-2B220-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199309

main45100-2B221-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199309-199408

main45100-2B230-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199309

main45100-2B231-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199309-199408

main45100-2B420-C0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199408-199411

main45100-2B420-E0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199408-199411

main45100-2B440-C0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199411-199607

main45100-2B440-E0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199411-199607

main45100-2B450-C0iAT191..SEEXT,SL199411-199607

main45100-2B450-E0iAT191..SEEXT199411-199607

main45100-2B620-C0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199607-199608

main45100-2B620-E0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199607-199608

main45100-2B630-C0iAT191..SEEXT,SL199607-199608

main45100-2B630-E0iAT191..SEEXT,SL199607-199608

main45100-32300-C0iAT191..SEEXT,SL199408-199411

main45100-32300-E1iAT191..SEEXT199408-199411

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20380iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199408-199608

main45105-20410iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

main45105-20420iAT191,ST190..SEEXT,SL199208-199608

main45105-20430iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

45112PAD, STEERING WHEEL

main45112-20620-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199309

main45112-20621-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199309-199408

main45112-20630-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

main45112-20640-C0iST190..SEEXT; ST190..SL;AT191..SEEXT,SL199208-199608

BLACK,TRIM1#; BLACK,TRIM1#,4#

main45112-20640-E0iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

45127INSERT, HORN BUTTON, UPPER NO.1

main45127-20010iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

main45127-20020iAT191,ST190..SEEXT,SL199208-199608

45180COVER SUB-ASSY, STEERING WHEEL

main45180-20120-C0iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199408-199608

BLACK,TRIM1#

main45180-20120-E1iAT19#,CT19#,ST195..SE,SG,SGI,SX,SXI199408-199608

ANTELOPE,TRIM4#

main45180-20200-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

main45180-20210-C0iST190..SEEXT; ST190..SL;AT191..SEEXT,SL199208-199608

BLACK,TRIM1#; BLACK,TRIM1#,4#

main45180-20210-E0iAT191..SEEXT199408-199608

ANTELOPE,TRIM4#

main45180-20220-C0iAT19#,CT19#,ST19#..SE,SG,SGI,SX,SXI199208-199408

45201PNUT, STEERING WHEEL SET

main90179-12071iAT19#,CT19#,ST19#199306-199608

main90179-12086iAT19#,CT19#,ST19#199208-199306

9015740012

main90157-40012

9015950238

main90159-50238

9016840114

main90168-40114

9 parts on this diagram · 7 diagrams in section
