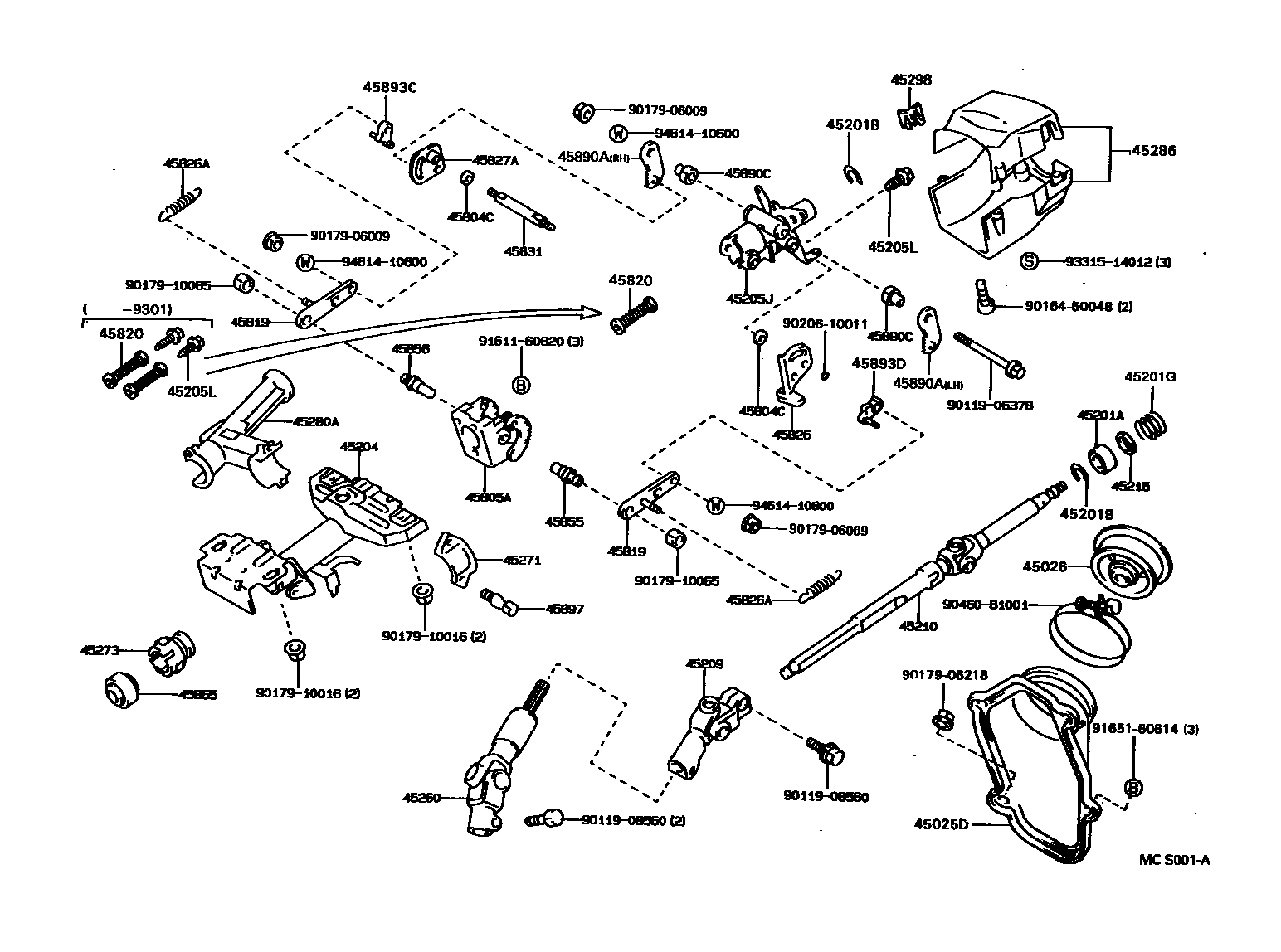

STEERING COLUMN & SHAFT

0001 1��� ������� 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20350iAT19#,CT190,ST190199208-199608

main45025-20360iCT195,ST195199208-199608

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-20090iAT19#,CT19#,ST19#199208-199212

main45026-20091iAT19#,CT19#,ST19#199212-199608

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iCT190..SG199308-199408

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iCT190..SG199308-199408

main90520-17269iAT19#,CT19#,ST195..SG,SGI199408-199608

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iCT190..SG199308-199408

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-20150iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12251iCT190..SG199308-199408

45205LSCREW(FOR STEERING COLUMN TUBE)

main90119-06569iCT190..SG199308-199408

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-20040iCT190..SG199308-199408

45210SHAFT ASSY, STEERING MAIN

main45210-12400iCT190..SG199308-199408

main45210-20330iAT19#,CT19#,ST195..SG,SGI199208-199608

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iCT190..SG199308-199408

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-20260iAT19#,CT190,ST190199208-199608

main45260-20280iCT195,ST195199208-199608

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAT19#,CT19#,ST195..SG,SGI199208-199608

main45271-12060iCT190..SG199308-199408

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAT19#,CT19#,ST195..SG,SGI199208-199308

main45273-16020iAT19#,CT19#,ST195..SG,SGI199511-199608

main45273-20030iAT19#,CT19#,ST195..SG,SGI199308-199511

main45273-20040iCT190..SG199308-199408

main45273-20050iAT19#,CT19#,ST195..SE,SEEXT,SL,SX,SXI199511-199608

main45273-22020iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199308

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-20530iAT19#,CT19#,ST195..SG,SGI199208-199608

main45280-20550iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

45286COVER, STEERING COLUMN

main45286-20941-C0iAT19#,CT19#,ST195..SG,SGI199208-199402

BLACK,TRIM1#,4#

main45286-20942-C0iAT19#,CT19#,ST19#..SE,SEEXT,SX,SXI; ST190..SL199208-199408

BLACK,TRIM1#; BLACK,TRIM1#,4#

main45286-20942-E0iAT19#,CT19#,ST195..SE,SEEXT,SX,SXI199408-199608

ANTELOPE,TRIM4#

main45286-20947-C0iAT19#,CT19#,ST195..SG,SGI199402-199408

BLACK,TRIM1#,4#

main45286-20947-E0iAT19#,CT19#,ST195..SG,SGI199408-199608

ANTELOPE,TRIM4#

45298PLUG, STEERING COLUMN COVER

main45298-20020-C0iAT19#,CT19#,ST19#..SG,SGI,SX,SXI199208-199402

BLACK,TRIM1#,4#

main45298-20020-E0iAT19#,ST195..SX,SXI199408-199608

ANTELOPE,TRIM4#

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283×2iCT190..SG199308-199408

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iCT190..SG199308-199408

45819RETAINER, TILT LEVER

main45819-12020×2iCT190..SG199308-199408

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010×2iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199301

main45820-12020iCT190..SG199308-199408

main45820-20010×2iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199301

45826LEVER, STEERING TILT

main45826-12021iCT190..SG199308-199408

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029×2iCT190..SG199308-199408

45827ALEVER, STEERING TILT SUB

main45827-12020iCT190..SG199308-199408

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iCT190..SG199308-199408

45855BOLT, TILT STEERING, NO.1

main45855-12030iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main45855-12040iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

45856BOLT, TILT STEERING, NO.2

main45856-12030iCT190..SG199308-199408

main45856-12040iCT190..SG199308-199408

45865COLLAR, STEERING MAIN SHAFT

main45865-12060iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

45890APAWL ASSY, TILT STEERING

main45890-12021iCT190..SG199308-199408

main45890-12031iCT190..SG199308-199408

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iCT190..SG199308-199408

main90389-07005iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main90389-07006iCT190..SG199308-199408

main90389-07007iCT190..SG199308-199408

main90389-07008iCT190..SG199308-199408

main90389-07009iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main90389-07010iCT190..SG199308-199408

main90389-07011iCT190..SG199308-199408

45893CSTOPPER, STEERING PAWL, RH

main45893-12071iCT190..SG199308-199408

main45893-12160iCT190..SG199308-199408

main45893-12170iCT190..SG199308-199408

main45893-12180iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main45893-12190iCT190..SG199308-199408

45893DSTOPPER, STEERING PAWL, LH

main45893-12021iCT190..SG199308-199408

main45893-12120iAT19#,CT19#,ST19#..SE,SEEXT,SL,SX,SXI199208-199608

main45893-12130iCT190..SG199308-199408

main45893-12140iCT190..SG199308-199408

main45893-12150iCT190..SG199308-199408

45897BOLT, STEERING LOCK SET

main45897-12020×2iAT19#,CT19#,ST19#199208-199608

9011906378

main90119-06378

9011908560

main90119-08560

9016450048

main90164-50048

9017906009

main90179-06009

9017906218

main90179-06218

9017910016

main90179-10016

9017910065

main90179-10065

9020610011

main90206-10011

9046081001

main90460-81001

9161160820

main91611-60820

9165160614

main91651-60614

9331514012

main93315-14012

9461410600

main94614-10600

46 parts on this diagram · 2 diagrams in section
