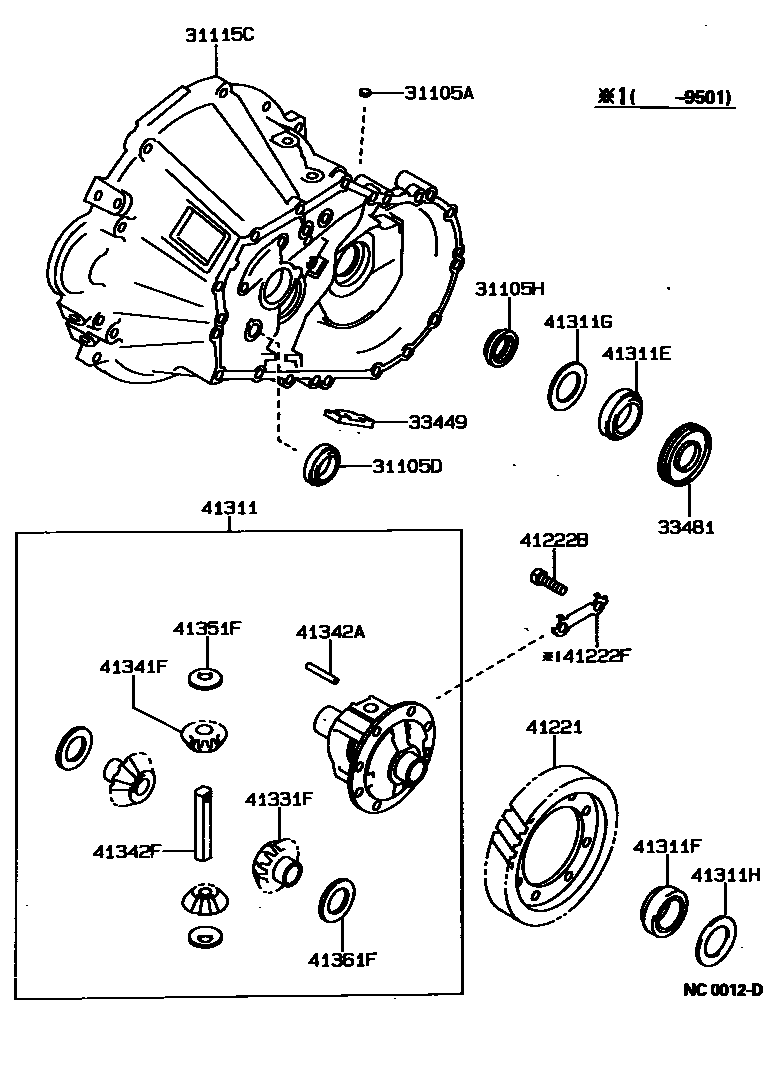

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C50,C51 0002 1S50 0003 1E56F,E57F 0004 1A245E 0005 1A241E,A241L 0007 1A540H

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-33020iCT190..MTM199208-199608

sub31105-33022

main31105-33030iST190..MTM199208-199408

sub31105-32080

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iAT19#..MTM199208-199608

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25016iAT19#..MTM199208-199608

main90311-30006iCT19#,ST19#..MTM199208-199608

sub90311-30017

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34016iAT19#..MTM199208-199608

main90311-35019iCT190..MTM199410-199507

main90311-35026iCT190,ST190..MTM199208-199410

sub90311-35019

main90311-35033iCT190..MTM199507-199608

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12040iAT19#..MTM199208-199405

sub31115-16040

sub33125-12011

main31115-16040iAT19#..MTM199405-199603

sub31115-16041

main31115-16041iAT19#..MTM199603-199608

sub31115-16042

main31115-33010iCT195,ST195..MTM199208-199309

sub31115-33011

sub31121-20010

main31115-33011iCT195,ST195..MTM199309-199606

sub31115-33012

main31115-33012iCT195,ST195..MTM199606-199608

sub31115-33013

33449MAGNET, TRANSMISSION

main33449-12020iAT19#..MTM199208-199608

main33449-20010iCT195,ST195..MTM199208-199608

main33449-32020iCT190,ST190..MTM199208-199608

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12040iCT190,ST190..MTM199208-199608

main33481-12080iCT195,ST195..MTM199208-199503

main33481-32060iAT19#..MTM199208-199608

main33481-42040iCT195,ST195..MTM199503-199608

sub33481-42041

sub41342-42030

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12190iAT190..ATM199208-199408

main41221-12260iCT195199208-199608

main41221-12290iST195..MTM199208-199608

main41221-12310iAT192..MTM199208-199608

sub41221-52280

main41221-12320iAT190,191..MTM199208-199608

sub41221-52250

main41221-17030iCT190,ST190..ATM199208-199608

main41221-20230iAT192..ATM199208-199608

main41221-32070iST195..ATM199208-199608

main41221-32080iST190..MTM199208-199408

main41221-32090iCT190..MTM199208-199608

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iCT190,ST190..MTM199208-199506

main90101-11353iAT19#,CT190..ATM199208-199608

main90105-11040iAT19#,CT190..MTM199501-199608

main90105-12150iST195..ATM199208-199608

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-12040iAT19#..MTM199208-199501

main41222-12050iAT19#..ATM199208-199608

main41222-20030iCT190,ST190..ATM199208-199608

main41222-32010iCT190,ST190..MTM199208-199506

41311CASE, FRONT DIFFERENTIAL

main41301-12040iAT19#..MTM199208-199412

sub41301-12041

sub90105-11040

main41301-12041iAT19#..MTM199412-199608

main41301-17021iAT19#..ATM199208-199308

sub41301-20150

sub90366-42001

main41301-20112iST190..ATM199208-199608

main41301-20150iAT19#..ATM199308-199608

main41301-32060iCT190,ST190..MTM199208-199608

sub41301-32061

main41302-32030iST195..ATM199208-199608

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iAT19#..MTM199208-199608

main90366-40016iCT190,ST190..MTM199208-199608

main90366-57001iCT195,ST195..MTM199208-199608

main90366-67004iST195..ATM199208-199608

main90368-38010iAT19#..ATM199208-199608

main90368-40002iST190..ATM199208-199608

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iCT190,ST190..MTM199208-199508

sub90366-40064

main90366-40064iCT190..MTM199508-199608

main90366-42001iAT19#..ATM199308-199608

main90366-44001iCT190,ST190..ATM199208-199608

main90366-50014iCT195,ST195..MTM199208-199608

main90366-55034iST195..ATM199208-199608

main90368-38010iAT19#..MTM199208-199608

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41012iAT19#..MTM199408-199608

main90201-41024iAT19#..ATM199208-199608

main90201-41045iAT19#..MTM199208-199408

sub90201-41012

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41024iAT19#..ATM199208-199608

main90201-41025iAT19#..ATM199208-199608

main90201-41026iAT19#..ATM199208-199608

main90201-41027iAT19#..ATM199208-199608

main90201-41028iAT19#..ATM199208-199608

main90201-41029iAT19#..ATM199208-199608

main90201-41030iAT19#..ATM199208-199608

main90201-41031iAT19#..ATM199208-199608

main90201-41032iAT19#..ATM199208-199608

main90201-41033iAT19#..ATM199208-199608

main90201-41034iAT19#..ATM199208-199608

main90201-41035iAT19#..ATM199208-199608

main90201-41036iAT19#..ATM199208-199608

main90201-41039iAT19#..ATM199208-199608

main90201-41040iAT19#..ATM199208-199608

main90201-41041iAT19#..ATM199208-199608

main90201-41042iAT19#..ATM199208-199608

main90201-41043iAT19#..ATM199208-199608

main90201-41044iAT19#..ATM199208-199608

main90201-41046iAT19#..MTM199208-199608

sub90564-41014

main90201-41047iAT19#..MTM199208-199608

sub90564-41015

main90201-41048iAT19#..MTM199208-199608

sub90564-41016

main90201-41049iAT19#..MTM199208-199608

sub90564-41017

main90201-41050iAT19#..MTM199208-199608

sub90564-41018

main90201-41051iAT19#..MTM199208-199608

sub90564-41019

main90201-41052iAT19#..MTM199208-199608

sub90564-41020

main90201-41053iAT19#..MTM199208-199608

sub90564-41021

main90201-41054iAT19#..MTM199208-199608

sub90564-41022

main90201-41055iAT19#..MTM199208-199608

sub90564-41023

main90201-41056iAT19#..MTM199208-199608

sub90564-41024

main90201-41057iAT19#..MTM199208-199608

sub90564-41025

main90201-41058iAT19#..MTM199208-199608

sub90564-41026

main90201-41059iAT19#..MTM199208-199608

sub90564-41027

main90201-41060iAT19#..MTM199208-199608

sub90564-41028

main90201-41061iAT19#..MTM199208-199608

sub90564-41029

main90201-41062iAT19#..MTM199208-199608

sub90564-41030

main90201-41063iAT19#..MTM199208-199608

sub90564-41031

main90201-41064iAT19#..MTM199208-199608

sub90564-41032

main90201-45004iCT190,ST190..ATM199208-199608

main90201-45005iCT190,ST190..ATM199208-199608

main90201-45006iCT190,ST190..ATM199208-199608

main90201-45007iCT190,ST190..ATM199208-199608

main90201-45008iCT190,ST190..ATM199208-199608

main90201-45009iCT190,ST190..ATM199208-199608

main90201-45010iCT190,ST190..ATM199208-199608

main90201-45011iCT190,ST190..ATM199208-199608

main90201-45012iCT190,ST190..ATM199208-199608

main90201-45013iCT190,ST190..ATM199208-199608

main90201-45014iCT190,ST190..ATM199208-199608

main90201-45015iCT190,ST190..ATM199208-199608

main90201-45016iCT190,ST190..ATM199208-199608

main90201-45017iCT190,ST190..ATM199208-199608

main90201-45018iCT190,ST190..ATM199208-199608

main90201-45019iCT190,ST190..ATM199208-199608

main90201-45020iCT190,ST190..ATM199208-199608

main90201-45021iCT190,ST190..ATM199208-199608

main90201-45022iCT190,ST190..ATM199208-199608

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011iAT19#199208-199608

main41331-12030iCT195,ST195199208-199608

main41331-32010iST190;CT190..MTM199208-199608

41341FPINION, FRONT DIFFERENTIAL

main41341-12030iAT19#199208-199608

main41341-20011iCT195,ST195199208-199608

main41341-22030iCT190199208-199608

sub41039-28010

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iAT19#,CT190199208-199608

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12040iCT195,ST195..MTM199208-199608

main41342-12140iAT19#199208-199608

sub41342-20060

main41342-20060iAT19#..ATM199308-199608

main41342-32020iCT190,ST190199208-199608

sub41342-52060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12010iCT195,ST195..MTM199208-199608

main41351-12020iAT19#199208-199608

main41351-32010iST190;CT190..MTM199208-199608

main41351-32030iST195..ATM199208-199608

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12330iCT195,ST195..MTM199208-199608

main41361-12340iST195..ATM199208-199608

main41361-12350iST195..ATM199208-199608

main41361-12360iST195..ATM199208-199608

main41361-12370iCT195,ST195..MTM199208-199608

main41361-12380iST195..ATM199208-199608

main41361-12390iCT195,ST195..MTM199208-199608

main41361-12400iCT195,ST195..MTM199208-199608

main41361-12410iCT195,ST195..MTM199208-199608

main41361-12420iCT195,ST195..MTM199208-199608

main41361-17010iAT19#,ST190..ATM199208-199608

main41361-17020iAT19#,ST190..ATM199208-199608

main41361-17030iAT19#,ST190..ATM199208-199608

main41361-17040iAT19#,ST190..ATM199208-199608

main41361-17050iAT19#,CT190,ST190..ATM199208-199608

main41361-17060iAT19#,CT190..ATM199208-199608

main41361-22020iAT19#,CT190,ST190..MTM199208-199608

main41361-22030iAT19#,CT190,ST190..MTM199208-199608

main41361-22040iAT19#,CT190,ST190..MTM199208-199608

main41361-22140iAT19#,CT190,ST190..MTM199208-199608

main41361-22150iAT19#,CT190,ST190..MTM199208-199608

main41361-22160iAT19#,CT190,ST190..MTM199208-199608

21 parts on this diagram · 6 diagrams in section
