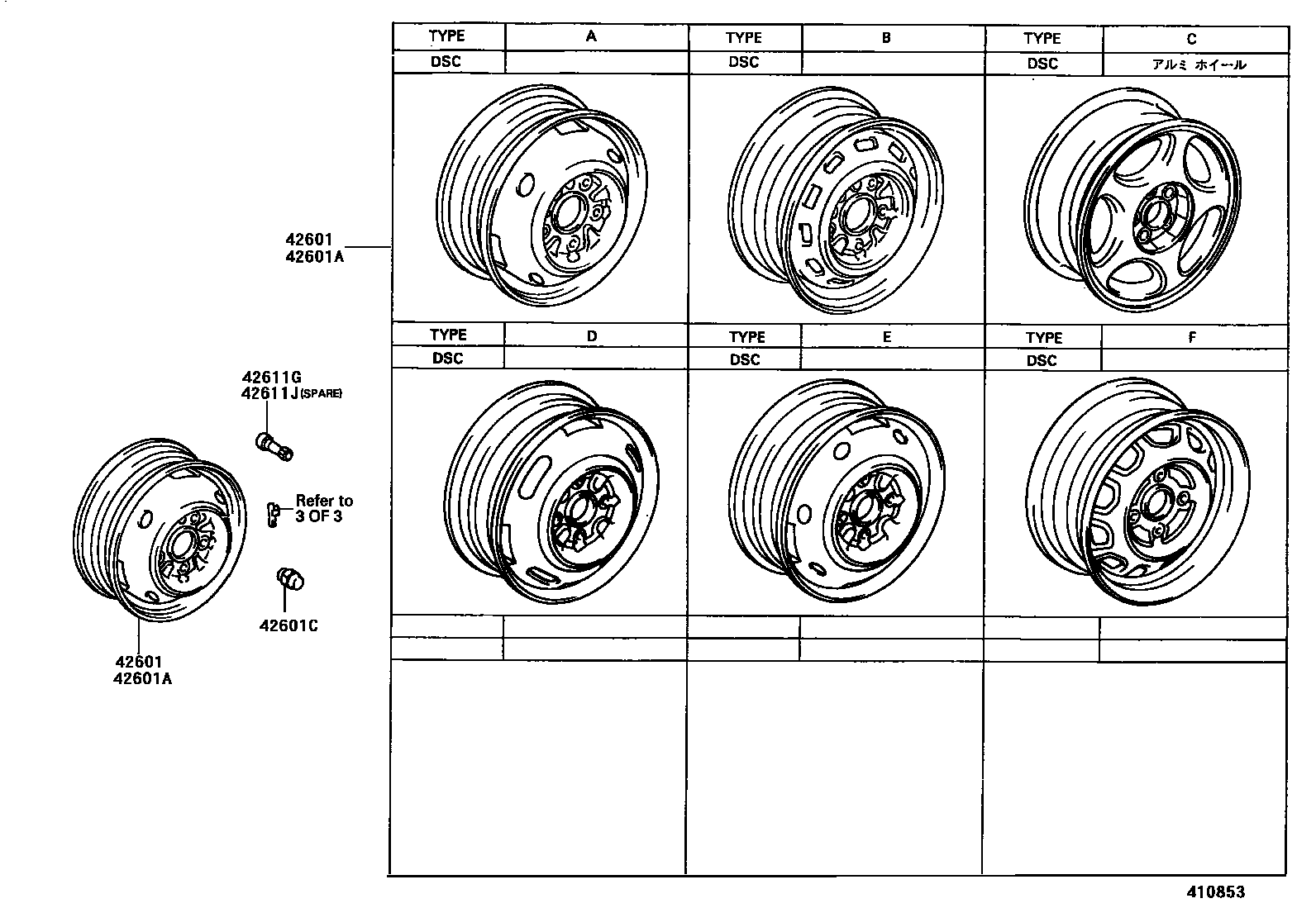

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-1A160-03×4iAT19#..SG,SGI199408-199608

main42611-20870-01×4iAT19#..SG,SGI; CT190;AT19#..SX,SXI199408-199608

main42611-20880-01×4iCT195,ST195;ST190..SEEXT,SL199208-199408

main42611-2B030×4iAT190,CT190,ST190..SE,SEEXT,SX,SXI; CT195,ST195..SE,SX; ST190..SL199208-199408

42601AWHEEL, DISC (FOR SPARE)

main42611-16200iAT19#..SG,SGI199208-199408

main42611-1A010iAT19#..SG,SGI199208-199408

main42611-1A160-03iAT19#..SG,SGI199208-199408

main42611-20440iAT19#..SG,SGI; CT19#,ST195;AT19#..SEEXT,SL,SX,SXI199408-199608

main42611-20870-01iAT19#..SG,SGI; CT190;AT19#..SX,SXI199408-199608

main42611-20880-01iAT191,CT195,ST195..SE,SEEXT,SG,SL,SX199408-199608

main42611-2B030iAT190,CT190,ST190..SE,SEEXT,SX,SXI; CT195,ST195..SE,SX; ST190..SL199208-199408

42601CNUT, HUB (FOR AXLE)

main90942-01007×20iCT19#,ST195;AT19#,ST190..SE,SEEXT,SL,SX,SXI199208-199608

main90942-01021×16iAT19#..SG,SGI199208-199608

main90942-01062×20iAT191..SL; CT195,ST195..SE,SX199408-199608

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAT19#,CT19#,ST19#199208-199608

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAT19#,CT19#,ST19#199208-199608

5 parts on this diagram · 3 diagrams in section
