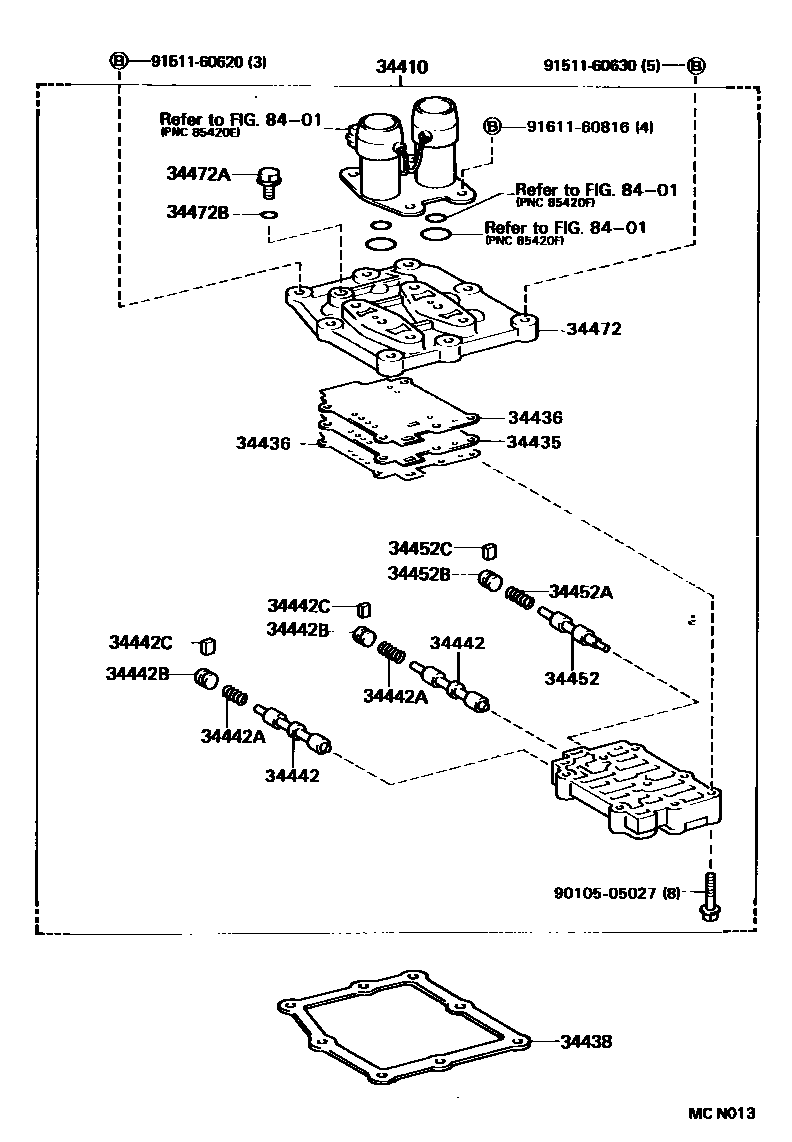

TRANSFER VALVE BODY & VALVE LEVER

0001 1 0002 1

34410BODY ASSY, TRANSFER CONTROL VALVE

main34410-20010iST195..ATM199408-199608

main34410-32011iST195..ATM199208-199301

main34410-32020iST195..ATM199301-199408

34435PLATE, TRANSFER VALVE BODY, LOWER

main34435-20010iST195..ATM199408-199608

main34435-32011iST195..ATM199208-199301

main34435-32020iST195..ATM199301-199408

34436GASKET, TRANSFER LOWER VALVE BODY, NO.1

main34436-20010×2iST195..ATM199408-199608

main34436-32011×2iST195..ATM199208-199408

34438GASKET, TRANSFER VALVE BODY

main34438-20010iST195..ATM199408-199608

main34438-32011iST195..ATM199208-199408

34442VALVE, LOW-HIGH SHIFT

main34442-32010×2iST195..ATM199208-199408

34442ASPRING, COMPRESSION(FOR LOW-HIGH SHIFT VALVE)

main90501-07070×2iST195..ATM199208-199408

34442BPLUG(FOR LOW-HIGH SHIFT VALVE)

main90339-04028×2iST195..ATM199208-199408

34442CKEY, STRAIGHT(FOR LOW-HIGH SHIFT VALVE)

main90282-03011×2iST195..ATM199208-199408

34452VALVE, TRANSFER DIRECT CLUTCH MODULATOR

main34452-20010iST195..ATM199408-199608

main34452-32010iST195..ATM199208-199408

34452ASPRING (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)

main90501-06048iST195..ATM199208-199408

main90501-11070iST195..ATM199408-199608

34452BPLUG (FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)

main90339-04017iST195..ATM199208-199408

main90339-04028iST195..ATM199408-199608

34452CKEY, STRAIGHT(FOR TRANSFER DIRECT CLUTCH MODULATOR VALVE)

main90282-03005iST195..ATM199408-199608

main90282-03011iST195..ATM199208-199408

34472COVER, TRANSFER VALVE BODY

main34472-32011iST195..ATM199208-199408

34472APLUG (FOR TRANSFER VALVE BODY COVER)

main90341-08001iST195..ATM199208-199608

34472BRING, O (FOR TRANSFER VALVE BODY COVER PLUG)

main90301-06196iST195..ATM199208-199608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010505027

main90105-05027

9151160620

main91511-60620

9151160630

main91511-60630

9161160816

main91611-60816

20 parts on this diagram · 2 diagrams in section
