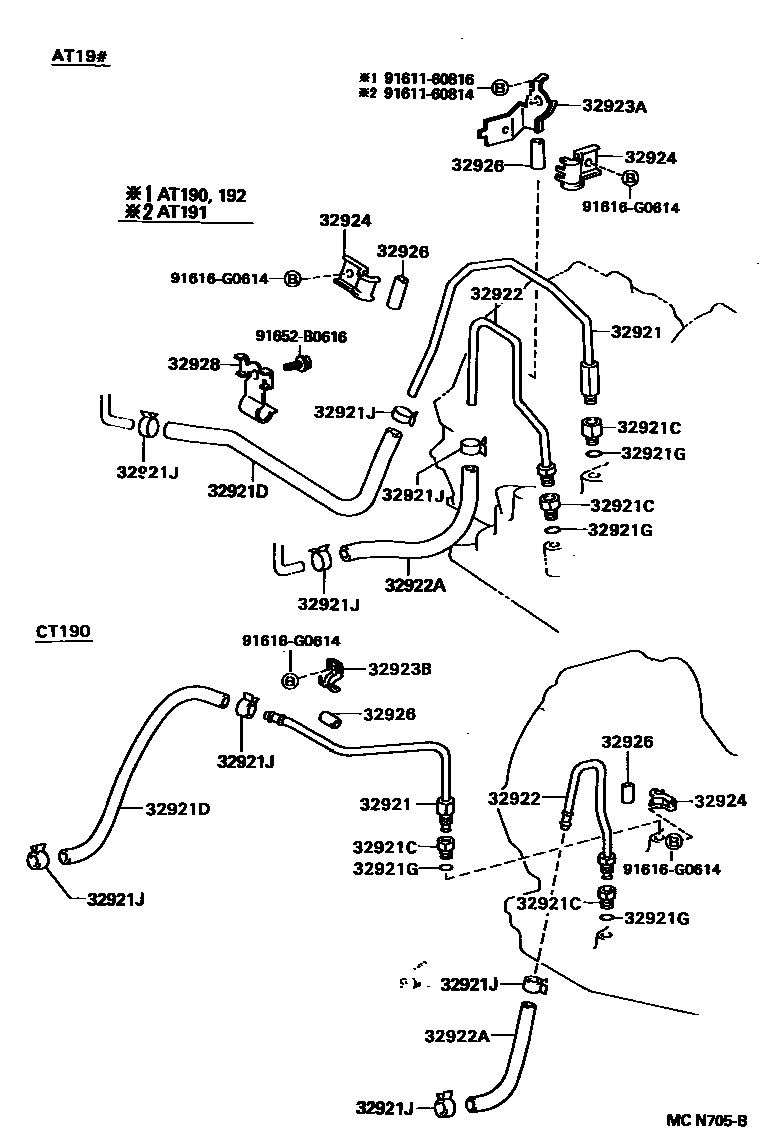

OIL COOLER & TUBE (ATM)

0001 1A245E,A241L 0002 1A241E,A540H

32921TUBE, OIL COOLER INLET, NO.1

main32921-20310iST190..ATM199208-199408

main32921-20320iCT190..ATM199208-199608

main32921-20360iAT19#..ATM199208-199608

main32921-32140iST195..ATM199208-199608

32921CUNION(FOR OIL COOLER TUBE)

main32901-32050iST195..ATM199208-199608

OUTLET

main32918-32010iST195..ATM199208-199608

INLET

main90404-16031×2iCT190,ST190..ATM199208-199608

main90404-16032×2iAT19#..ATM199208-199608

32921DHOSE(FOR OIL COOLER INLET)

main32941-20110iAT19#..ATM199208-199401

main32941-20111iAT190,192..ATM199401-199608

main32943-20071iAT191..ATM199408-199608

main90445-17106iST190..ATM199208-199408

main90445-17112iCT190..ATM199208-199608

main90445-17117iST195..ATM199208-199608

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iCT190,ST19#..ATM199208-199608

main90301-11006×2iAT19#..ATM199208-199608

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iAT19#,CT190,ST19#..ATM199208-199608

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20360iCT190,ST190..ATM199208-199608

main32922-20380iAT19#..ATM199208-199608

main32922-32021iST195..ATM199208-199608

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17097iAT19#..ATM199208-199608

main90445-17106iCT190,ST19#..ATM199208-199608

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20160iAT19#..ATM199208-199608

main32923-32030iST195..ATM199302-199608

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20130iST190..ATM199208-199408

main32923-32060iST195..ATM199302-199608

main32924-20090iCT190..ATM199208-199608

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20080×2iAT19#,ST190..ATM; CT190..ATM199208-199608

main90462-12071×2iST195..ATM199208-199608

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010×2iAT19#,CT190,ST190..ATM199208-199608

main32926-30020iST195..ATM199208-199608

main32926-32010iST195..ATM199208-199608

main32926-36050iCT190..ATM199208-199302

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20100iAT19#..ATM199208-199401

main32928-20120iAT19#..ATM199401-199608

9161160814

main91611-60814

9161160816

main91611-60816

91616G0614

main91616-G0614

91652B0616

main91652-B0616

16 parts on this diagram · 2 diagrams in section
