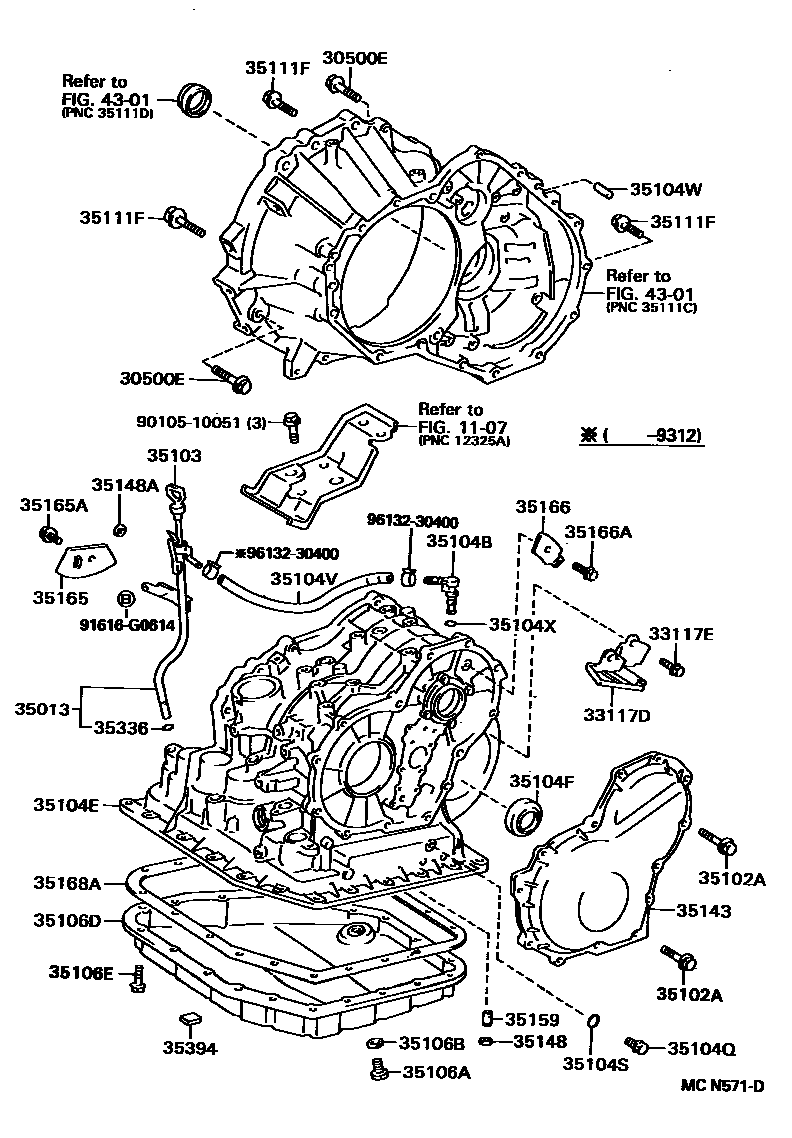

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A245E 0002 1A245E 0003 1A241E,A241L 0005 1A540H 0006 1A540H

1107MOUNTING

→ Go to FIG 11-07

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040×2iCT190..ATM; ST195..ATM199408-199608

main90105-10077iAT19#,CT190,ST19#..ATM199208-199608

main90119-12168iAT19#..ATM199208-199608

main91619-61245×3iAT19#..ATM; CT190,ST19#..ATM199208-199608

main91651-41022iCT190,ST19#..ATM199208-199302

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAT19#,CT190,ST190..ATM199208-199608

main33117-32050iST195..ATM199208-199608

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAT19#,CT190,ST19#..ATM199208-199608

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20520iCT190..ATM199208-199312

main35013-20521iCT190..ATM199312-199608

main35013-20530iST190..ATM199208-199408

main35013-20540iST195..ATM199208-199608

main35013-20550iAT19#..ATM199208-199408

main35013-20650iAT19#..ATM199408-199608

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20030iCT190,ST190..ATM199208-199608

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iAT19#..ATM199208-199608

main90105-08065×10iCT190,ST190..ATM199208-199608

main90105-08068×5iCT190,ST190..ATM199208-199408

main91511-80625×11iAT19#..ATM199208-199608

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20240iST190..ATM199208-199408

main35103-20260iCT190..ATM199208-199312

main35103-20261iCT190..ATM199312-199608

main35103-20270iST195..ATM199208-199408

main35103-20280iAT19#..ATM199208-199408

main35103-20350iAT192..ATM199408-199608

main35103-20360iAT190,191..ATM199408-199608

main35103-20370iST195..ATM199408-199608

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iCT190,ST190..ATM199208-199608

main90930-03132iAT19#..ATM199208-199608

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12230iAT192..ATM199408-199608

main35104-20100iAT190,191..ATM199408-199608

main35104-32063iST195..ATM199208-199309

main35104-32064iST195..ATM199309-199406

main35104-32065iST195..ATM199406-199608

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34013iAT19#..ATM199208-199608

main90311-35020iCT190,ST190..ATM199208-199408

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAT19#,CT190,ST190..ATM; ST195..ATM199208-199608

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAT19#,CT190,ST190..ATM; ST195..ATM199208-199608

35104VHOSE (FOR BREATHER PLUG)

main35121-20021iST195..ATM199208-199408

main35121-20030iST195..ATM199408-199608

main90447-11017iAT19#..ATM199208-199608

main90447-11018iCT190,ST190..ATM199208-199608

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10007×2iCT190,ST190..ATM199208-199307

HOUSING SIDE

main90250-10021×2iAT19#..ATM199208-199608

main90250-10232×2iST195..ATM199208-199608

main90250-11001×2iCT190,ST190..ATM199208-199608

RR COVER SIDE

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iST195..ATM199208-199608

main90301-06010iAT19#..ATM199208-199608

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAT19#,CT190,ST190..ATM199208-199408

main90341-10011iAT19#..ATM199408-199608

main90341-18016iST195..ATM199208-199608

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAT19#,CT190,ST190..ATM199208-199608

main90430-18008iST195..ATM199208-199608

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iCT190,ST190..ATM199208-199608

main35106-12090iAT19#..ATM199208-199602

main35106-12120iAT19#..ATM199602-199608

main35106-32032iST195..ATM199208-199608

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iAT19#,CT190,ST190..ATM; ST195..ATM199208-199608

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iCT190,ST190..ATM199208-199608

main90105-08066×2iST190..ATM199208-199408

main90105-08068×3iCT190,ST190..ATM199208-199408

main90105-08071×2iAT19#..ATM; CT190,ST190..ATM199208-199608

main90105-08082iCT190..ATM199208-199608

main90105-08288×3iAT19#..ATM199208-199608

35143COVER, TRANSMISSION CASE, REAR

main35143-12030iAT19#..ATM199208-199608

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010×2iAT19#,CT190,ST190..ATM; ST195..ATM199208-199608

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×2iST190..ATM199208-199408

35159GASKET, BRAKE DRUM

main35159-20010iAT19#,CT190,ST190..ATM199208-199608

main35159-32011iST195..ATM199208-199608

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAT19#..ATM199208-199608

main35165-20010iCT190,ST190..ATM199208-199608

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAT19#,CT190,ST190..ATM199208-199608

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iCT190,ST190..ATM199208-199608

main35166-12020iAT19#..ATM199208-199608

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAT19#,CT190,ST190..ATM199208-199608

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iCT190,ST190..ATM199208-199608

main35168-12030iAT19#..ATM199208-199608

main35168-32020iST195..ATM199208-199608

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAT19#,CT190,ST19#..ATM199208-199608

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iAT19#..ATM; CT190,ST19#..ATM199208-199212

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9010510051

main90105-10051

91616G0614

main91616-G0614

9613230400

main96132-30400

36 parts on this diagram · 5 diagrams in section
