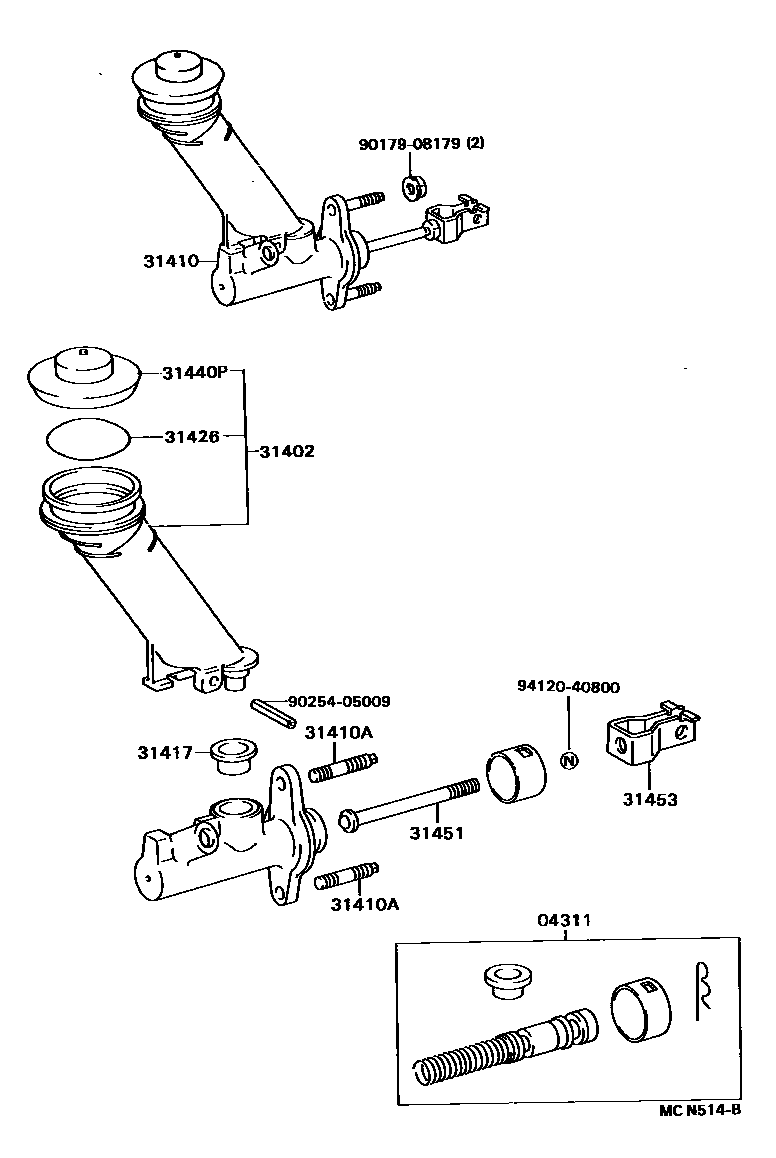

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12070iAT19#,CT19#,ST19#..MTM199208-199403

sub04311-12100

main04311-12110iAT19#,CT19#,ST195..MTM199411-199608

main04311-60150iAT19#,CT19#,ST19#..MTM199403-199411

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20080iAT19#,ST190..MTM199208-199608

sub31402-20180

main31402-20090iCT19#,ST195..MTM199208-199608

sub31402-20180

main31402-20120iCT19#..MTM199212-199608

sub31402-20180

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20520iAT19#,ST190..MTM199208-199608

sub31410-20640

main31410-20540iST195..MTM199208-199608

sub31410-20640

main31410-20570iCT19#..MTM199208-199608

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAT19#,CT19#,ST19#..MTM199208-199608

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iAT19#,CT19#,ST19#..MTM199208-199608

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iAT19#,CT19#,ST195..MTM199208-199608

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAT19#,CT19#,ST19#..MTM199208-199608

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iAT19#..MTM199408-199608

main31451-35070iAT19#,ST190..MTM199208-199408

main31451-35080iCT19#..MTM199208-199408

main31451-36040iCT19#,ST195..MTM199208-199608

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iCT19#,ST195..MTM199208-199608

main31453-10020iAT19#,ST190..MTM199208-199304

main31453-10040iAT19#,ST190..MTM199304-199608

9017908179

main90179-08179

9025405009

main90254-05009

9412040800

main94120-40800

12 parts on this diagram · 4 diagrams in section
