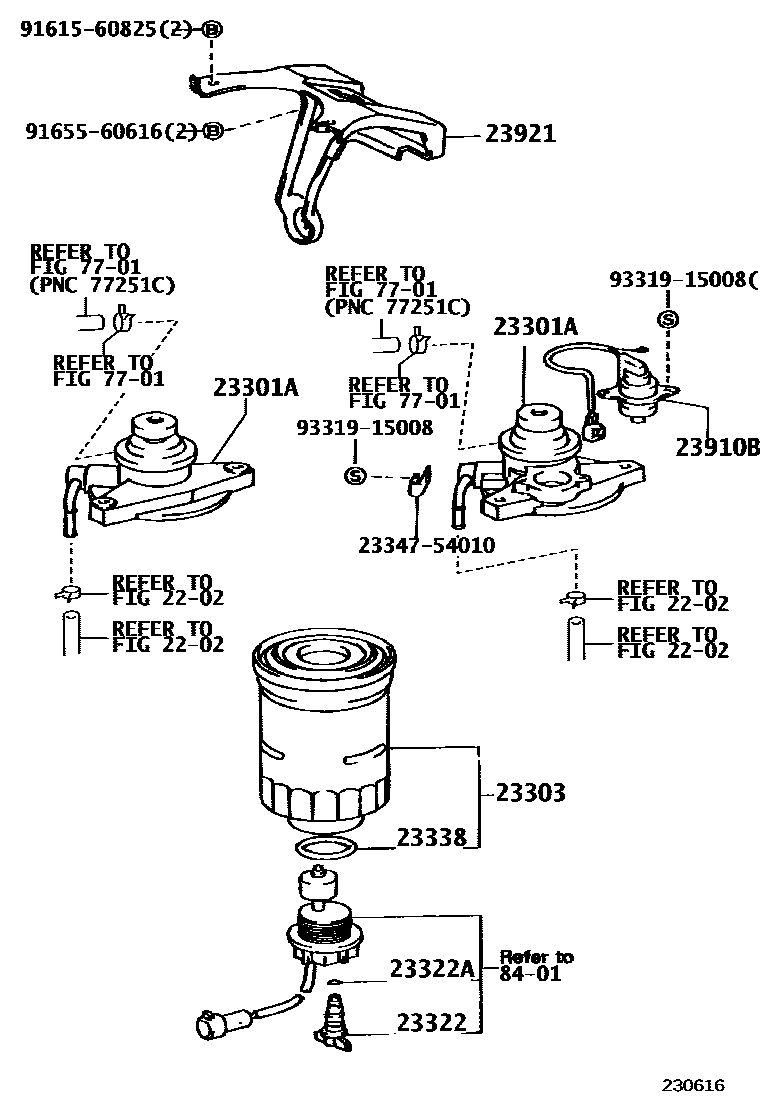

FUEL FILTER

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23301ACAP ASSY, FUEL FILTER

main23301-64340i2C..CT19#199208-199608

main23301-64350i2C..CT19#199208-199608

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2C..CT19#199208-199608

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2C..CT19#199208-199608

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2C..CT19#199208-199608

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2C..CT19#199208-199608

23910BHEATER ASSY, FUEL

main23910-64030i2C..CT19#199208-199608

23921SUPPORT, FUEL FILTER

main23921-64210i2C..CT19#199208-199608

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2334754010CLIP, CORD

main23347-54010

9161560825

main91615-60825

9165560616

main91655-60616

9331915008

main93319-15008

14 parts on this diagram · 1 diagram in section
