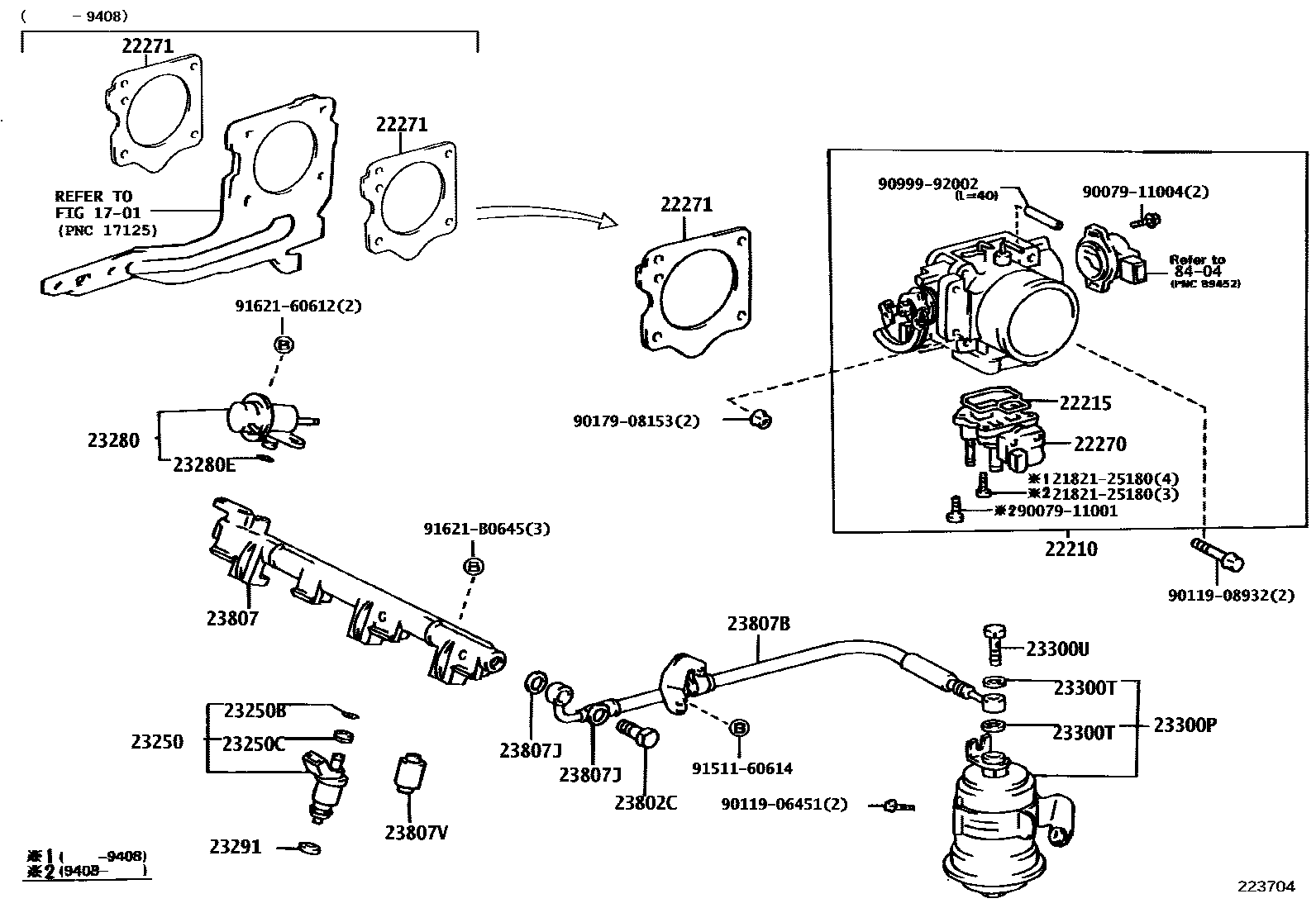

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1701

22210BODY ASSY, THROTTLE

main22210-15070i5AFE..AT192199208-199608

main22210-16770i4AFE..AT190..MTM199208-199408

main22210-16780i4AFE..AT190..ATM199208-199408

main22210-16820i4AFE,7AFE..AT190,191..MTM199408-199608

main22210-16830i4AFE..AT190..ATM199408-199608

main22210-16840i7AFE..AT191..ATM199408-199608

main22210-74800i4SFE..ST190..MTM199208-199408

main22210-74810i4SFE..ST190..ATM199208-199408

main22210-74820i3SFE..ST195..MTM199208-199309

sub22210-7A100

main22210-74830i3SFE..ST195..ATM199208-199309

sub22210-7A110

main22210-7A100i3SFE..ST195..MTM199309-199608

main22210-7A110i3SFE..ST195..ATM199309-199608

22215GASKET, THROTTLE BODY COVER

main22215-74400i4AFE,5AFE,7AFE..AT19#199208-199608

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-15010i5AFE..AT192199208-199608

main22270-16060i4AFE,7AFE..AT190,191199408-199608

main22270-74040i3SFE..ST195..ATM199208-199309

sub22270-74250

main22270-74050i3SFE..ST195..MTM199208-199309

sub22270-74240

main22270-74140i4SFE..ST190..MTM199208-199408

main22270-74150i4SFE..ST190..ATM199208-199408

main22270-74240i3SFE..ST195..MTM199309-199608

main22270-74250i3SFE..ST195..ATM199309-199608

22271GASKET, THROTTLE BODY

main22271-15020i4AFE,7AFE..AT190,191199208-199608

main22271-74021i3SFE,4SFE..ST19#199208-199309

sub22271-74022

main22271-74022i3SFE,4SFE..ST19#199309-199608

23250INJECTOR ASSY, FUEL

main23209-15030i5AFE..AT192199208-199608

main23209-16120i4AFE,7AFE..AT190,191199208-199608

main23209-74040i3SFE..ST195199208-199608

main23209-74130i4SFE..ST190199208-199408

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i4AFE,5AFE,7AFE..AT19#199208-199608

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3SFE,4SFE..ST19#199208-199608

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15020i5AFE..AT192199208-199308

main23280-15030i5AFE..AT192199308-199608

main23280-16150i4AFE,7AFE..AT190,191199208-199608

main23280-74100i3SFE,4SFE..ST19#199208-199404

main23280-74151i3SFE,4SFE..ST19#199404-199608

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE,5AFE,7AFE..AT19#199208-199608

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i4AFE,5AFE,7AFE..AT19#199208-199608

23300PFILTER, FUEL(FOR EFI)

main23300-19315i4AFE,5AFE,7AFE..AT19#199208-199608

sub23300-19335

main23300-79335i3SFE,4SFE..ST19#199208-199608

23300TGASKET(FOR FUEL FILTER)

main90430-12026i4AFE,5AFE,7AFE..AT19#199208-199608

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AFE,5AFE,7AFE..AT19#199208-199608

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i3SFE,4SFE..ST19#199208-199608

main90401-12097i4AFE,5AFE,7AFE..AT19#199208-199608

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-15040i5AFE..AT192199208-199608

sub23814-15041

main23814-16120i4AFE..AT190199208-199408

sub23814-16121

main23814-16130i4AFE,7AFE..AT190,191199408-199608

main23814-74070i3SFE,4SFE..ST19#199208-199404

sub23814-74110

main23814-74100i3SFE,4SFE..ST19#199404-199405

sub23814-74110

main23814-74110i3SFE,4SFE..ST19#199405-199608

sub23814-74080

23807BHOSE, FUEL DELIVERY PIPE

main23271-16160i4AFE,7AFE..AT190,191199408-199608

main23271-16170i5AFE..AT192199208-199608

main23271-16180i4AFE..AT190199208-199408

main23271-74380i3SFE,4SFE..ST19#199208-199608

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026i4AFE,5AFE,7AFE..AT19#199208-199608

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11020i3SFE,4SFE..ST19#199208-199508

main90561-06014i4AFE,7AFE..AT190,191199208-199608

main90561-08020i5AFE..AT192199208-199608

main90561-08053i3SFE..ST195199508-199608

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011906451

main90119-06451

9011908932

main90119-08932

9017908153

main90179-08153

9099992002

main90999-92002

9151160614

main91511-60614

9162160612

main91621-60612

91621B0645

main91621-B0645

30 parts on this diagram · 6 diagrams in section
