STARTER

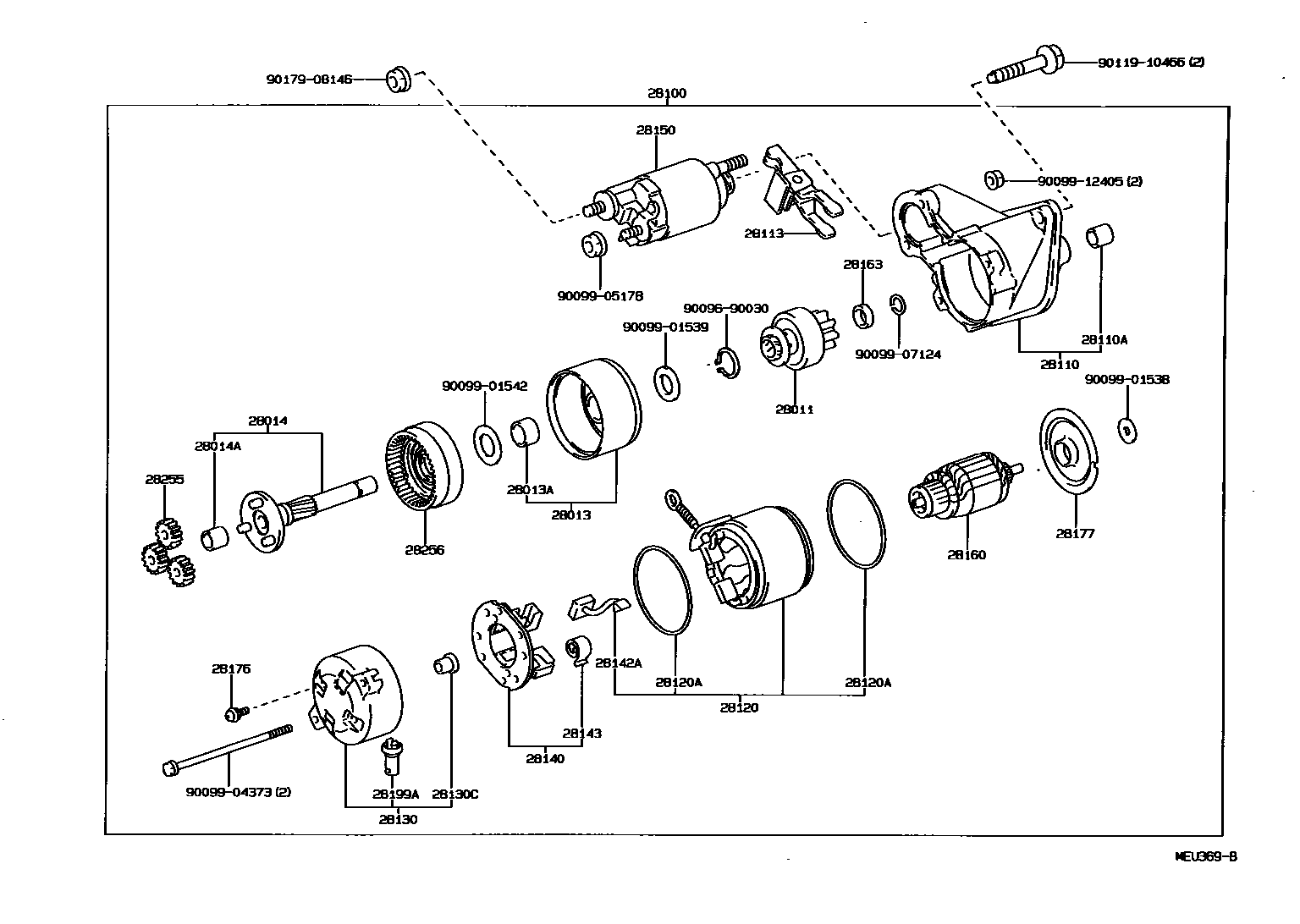

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-64010i199208-199408

main28011-64130i199208-199608

main28011-70020i199208-199608

main28011-74070i199208-199608

main28011-76070i199208-199608

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i199208-199608

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i199208-199608

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i199208-199608

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i199208-199608

28100STARTER ASSY

main28100-16160i199208-199608

main28100-16180i199208-199608

main28100-64200i199208-199402

main28100-64210i199208-199402

main28100-64300i199402-199608

main28100-64310i199402-199408

main28100-74130i199208-199608

28110HOUSING ASSY, STARTER DRIVE

main28110-16130i199208-199608

main28110-16160i199208-199608

main28110-64170i199402-199608

main28110-64200i199208-199402

main28110-74100i199208-199608

main28115-64040i199408-199608

main28115-64210i199208-199402

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i199208-199608

28113LEVER, STARTER PINION DRIVE

main28113-16070i199208-199608

28120YOKE ASSY, STARTER

main28120-16180i199409-199608

main28120-64040i199208-199408

main28120-64130i199208-199608

main28120-70020i199208-199608

main28120-76061i199208-199409

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i199208-199408

main90099-14092×2i199208-199608

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-16070i199208-199608

main28130-16180i199208-199608

main28130-64130i199208-199608

main28130-74120i199208-199608

28130CBEARING, STARTER FLANGE

main90099-10183i199208-199608

28140HOLDER ASSY, STARTER BRUSH

main28140-64040i199408-199608

main28140-64130i199208-199608

main28140-70020i199208-199608

main28140-74120i199208-199608

main28140-76060i199208-199608

28142ASTARTER KIT

main28142-70020×2i199208-199608

28143SPRING, STARTER BRUSH

main28143-70020×4i199208-199608

main28143-76060×4i199208-199608

main90099-17112×4i199208-199608

main90099-17115×4i199408-199608

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i199208-199608

main28150-16181i199208-199608

main28150-64200i199208-199402

main28150-64210i199208-199402

main28150-64300i199402-199608

main28150-64310i199408-199608

main28150-74130i199208-199409

main28150-74140i199409-199608

28160ARMATURE ASSY, STARTER

main28160-64041i199208-199408

main28160-70021i199208-199608

main28160-74070i199208-199608

main28160-76060i199208-199608

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i199208-199608

28176SCREW, STARTER

main28176-15090×2i199208-199510

main90099-00270×2i199510-199608

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i199208-199608

28199APROTECTOR, DUST STARTER

main28199-46080×2i199408-199608

main28199-74110i199208-199608

28255GEAR, PLANET

main28255-70020×3i199208-199608

28256GEAR, STARTER INTERNAL

main28256-70020i199208-199608

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9011910466

main90119-10466

9017908146

main90179-08146

34 parts on this diagram · 5 diagrams in section
