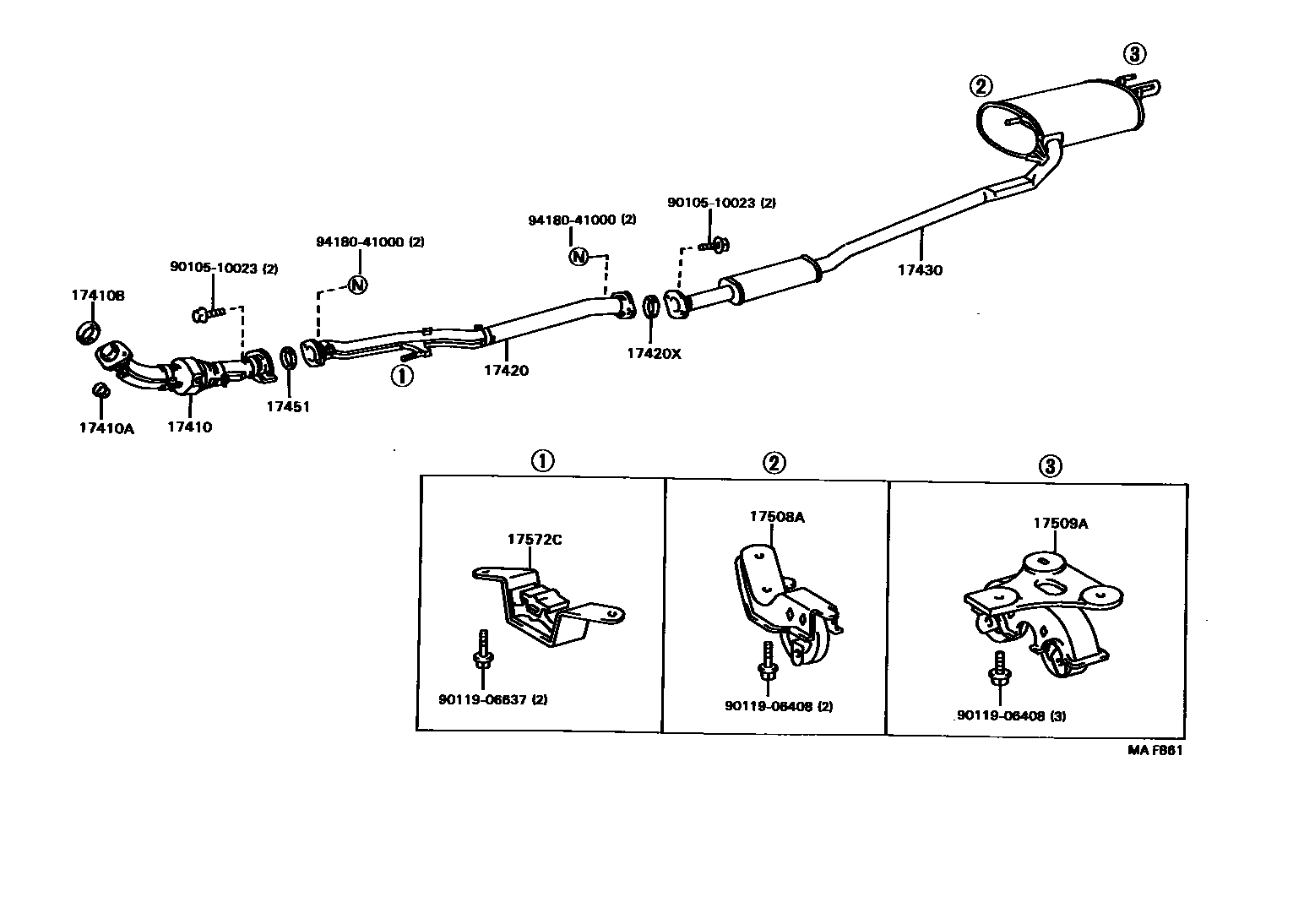

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-16840i4AFE..AT190199408-199608

main17410-1A050i5AFE..AT192..MTM199208-199608

main17410-1A060i4AFE..AT190199208-199408

main17410-1A070i5AFE..AT192..ATM199208-199608

main17410-1A190i7AFE..AT191199408-199608

main17410-64571i2C..CT190199208-199402

main17410-64580i2C..CT195199208-199608

main17410-64620i2C..CT190199402-199608

main17410-7A080i4SFE..ST190199208-199408

main17410-7A130i3SFE..ST195199208-199601

main17410-7A131i3SFE..ST195199601-199608

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i4AFE,7AFE,3SFE..AT190,191,ST195; 5AFE,2C..AT192,CT19#199408-199608

17410BGASKET, EXHAUST PIPE

main90917-06061i2C..CT19#199208-199608

main90917-06064×2i4AFE,7AFE..AT190,191199408-199608

main90917-06065i4AFE,5AFE..AT19#199208-199408

main90917-06066i3SFE,4SFE..ST19#199208-199608

17420PIPE ASSY, EXHAUST, CENTER

main17420-16600i4AFE..AT190199208-199408

main17420-74660i4SFE..ST190199208-199408

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06046i4AFE,4SFE..AT190,ST190199208-199408

17430PIPE ASSY, EXHAUST, TAIL

main17430-1A320i5AFE..AT192199208-199402

main17430-1A340i4AFE..AT190199208-199402

main17430-1A480i5AFE..AT192199402-199608

main17430-1A490i4AFE..AT190199402-199408

main17430-1A500i4AFE,7AFE..AT190,191199408-199608

main17430-64750i2C..CT190199208-199402

main17430-64790i2C..CT195199208-199402

main17430-6A020i2C..CT190199402-199608

main17430-6A030i2C..CT195199402-199608

main17430-7A220i3SFE..ST195199208-199402

main17430-7A230i4SFE..ST190199208-199408

main17430-7A480i3SFE..ST195199402-199608

17451GASKET, EXHAUST PIPE

main90917-06046i3SFE..ST195; 4AFE,7AFE..AT190,191199408-199608

main90917-06048i2C..CT19#; 5AFE..AT192199208-199608

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-74030i4AFE,5AFE,7AFE,2C,4SFE..AT19#,CT190,ST190199208-199608

main17508-74070i2C,3SFE..CT195,ST195199208-199608

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-74110i4AFE,5AFE,7AFE,2C,3SFE,4SFE..AT19#,CT19#,ST19#199208-199608

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-64170i2C..CT195199208-199608

main17571-64230i2C..CT190199208-199402

main17571-74330i4AFE,5AFE,4SFE..AT19#,ST190199208-199211

main17571-74331i4AFE,5AFE,4SFE..AT19#,ST190199211-199305

main17571-74332i4AFE,5AFE,4SFE..AT19#,ST190199305-199310

main17571-74333i4AFE,5AFE,4SFE..AT19#,ST190199310-199408

main17571-74340i3SFE..ST195199208-199608

main17571-74430i4AFE,5AFE,7AFE..AT19#199408-199608

9010510023

main90105-10023

9011906408

main90119-06408

9011906637

main90119-06637

9418041000

main94180-41000

14 parts on this diagram · 7 diagrams in section
