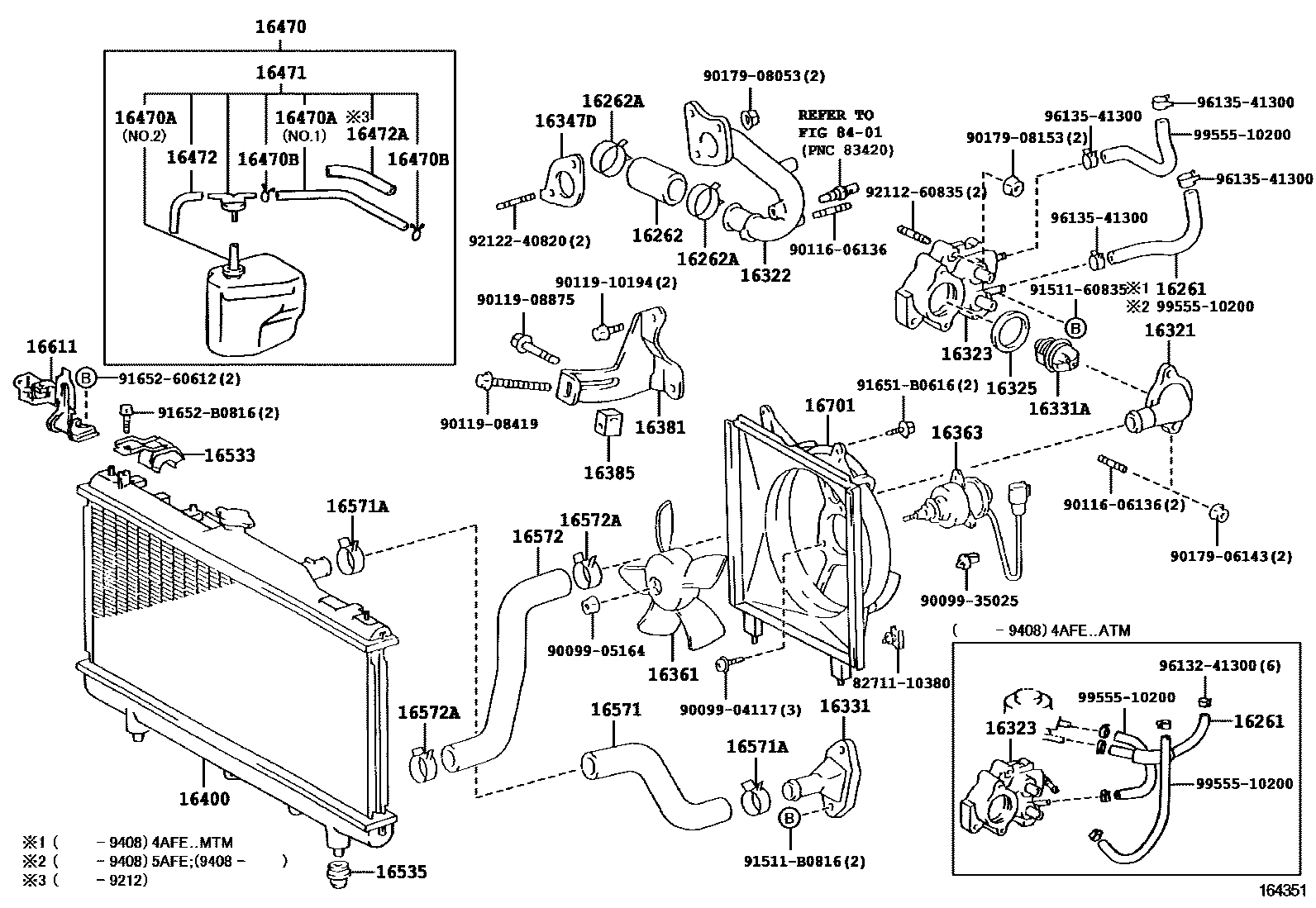

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-16040i4AFE..AT190199208-199408

main16261-64060i2C..CT19#199208-199608

main16261-74010i3SFE,4SFE..ST19#199208-199608

16262HOSE, WATER INLET

main16262-15040i4AFE,5AFE,7AFE..AT19#199208-199608

sub16262-16030

16262ACLIP(FOR WATER INLET HOSE)

main90467-37002i4AFE,5AFE,7AFE..AT19#199208-199608

sub90467-37005

16321INLET, WATER

main16321-15040i4AFE,5AFE,7AFE..AT19#199208-199608

main16321-64020i2C..CT19#199208-199608

main16321-74030i3SFE,4SFE..ST19#199208-199608

sub16321-74050

16322PIPE, WATER INLET

main16322-15050i4AFE,5AFE..AT190,192199208-199608

main16322-16060i7AFE..AT191199408-199608

16323HOUSING, WATER INLET

main16323-15180i5AFE..AT192199208-199608

main16323-16450i4AFE..AT190199208-199408

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i3SFE,4SFE..ST19#199208-199301

sub16325-63011

main16325-63011i3SFE,4SFE..ST19#199301-199608

16331OUTLET, WATER

main16331-15080i4AFE,5AFE,7AFE..AT19#199208-199608

main16331-64030i2C..CT19#199408-199608

main16331-64070i2C..CT19#199208-199408

main16331-74200i3SFE,4SFE..ST19#199208-199608

16331ATHERMOSTAT

main90916-03046i2C..CT19#199208-199608

main90916-03090i3SFE..ST195199603-199608

16347DGASKET, WATER BY-PASS

main16347-15010i4AFE,5AFE,7AFE..AT19#199208-199608

16361FAN

main16361-11010i4SFE..ST190..MTM199208-199608

main16361-11020i7AFE..AT191;4AFE,5AFE..AT190,192..ATM199208-199608

main16361-64030i2C..CT195;2C..CT190..ATM199208-199608

main16361-74070i3SFE..ST195..ATM199208-199608

16363MOTOR, COOLING FAN

main16363-11010i4SFE..ST190..MTM199208-199608

main16363-11020i4SFE..ST190..ATM;3SFE..ST195..MTM199208-199608

main16363-11030i3SFE..ST195..ATM199208-199608

main16363-64090i2C..CT195;2C..CT190..ATM199208-199608

main16363-74020i2C..CT190..MTM199208-199608

16381BAR, FAN BELT ADJUSTING

main16381-15080i4AFE,5AFE,7AFE..AT19#199208-199608

main16381-64080i2C..CT19#199208-199608

16385SLIDER, FAN BELT ADJUSTING

main16385-15020i4AFE,5AFE,7AFE..AT19#199208-199608

sub16385-15030

main16385-64011i2C..CT19#199208-199608

16400RADIATOR ASSY

main16400-11581i7AFE..AT191..ATM199408-199608

main16400-15570i4AFE,5AFE..AT190,192..MTM199208-199608

main16400-15580i5AFE..AT192..ATM199208-199402

sub16400-15581

main16400-15581i5AFE..AT192..ATM199402-199608

main16400-15590i4AFE..AT190..ATM199208-199402

sub16400-15591

main16400-15591i4AFE..AT190..ATM199402-199608

main16400-16470i7AFE..AT191..MTM199408-199608

main16400-64780i2C..CT190..MTM199208-199301

sub16400-64781

main16400-64781i2C..CT190..MTM199301-199408

sub16400-64801

main16400-64790i2C..CT190..ATM199208-199301

sub16400-64791

main16400-64791i2C..CT190..ATM199301-199608

main16400-64800i2C..CT195199208-199301

sub16400-64801

main16400-64801i2C..CT195199301-199608

sub16400-64791

main16400-74780i4SFE..ST190..MTM199208-199402

sub16400-74840

main16400-74790i4SFE..ST190..ATM199208-199408

main16400-74820i3SFE..ST195..MTM199208-199608

sub16400-74790

main16400-74830i3SFE..ST195..ATM199208-199608

main16400-74840i4SFE..ST190..MTM199402-199408

sub16400-74790

16470TANK ASSY, RADIATOR RESERVE

main16470-74230i4AFE,5AFE,7AFE..AT19#199208-199608

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i3SFE,4SFE..ST19#199208-199608

main90445-12078i2C..CT19#199408-199608

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AFE,5AFE,7AFE..AT19#199208-199608

16471CAP SUB-ASSY, RESERVE TANK

main16405-74220i4AFE,5AFE,7AFE..AT19#199208-199608

16472HOSE, BREATHER

main85338-35060i4AFE,5AFE,7AFE..AT19#199208-199608

16472APROTECTOR, HOSE

main16477-74110i2C..CT19#199208-199212

16533SUPPORT, RADIATOR, UPPER

main16533-64130i2C..CT19#199208-199608

main16533-74200i4AFE,5AFE..AT19#199208-199211

sub16533-74201

main16533-74201i4SFE..ST190;3SFE..ST195..MTM199211-199608

main16533-74210i3SFE..ST195..ATM199208-199211

sub16533-74211

main16533-74211i3SFE..ST195..ATM199211-199608

16535SUPPORT, RADIATOR, LOWER

main16535-74010i4AFE,5AFE..AT190,192199208-199608

sub90916-04002

main16535-74020i7AFE..AT191..MTM199208-199608

main16535-74070i2C..CT19#199208-199608

main16535-74130i7AFE..AT191..ATM199208-199608

16571HOSE, RADIATOR, INLET

main16571-16210i4AFE,5AFE,7AFE..AT19#199208-199608

main16571-64200i2C..CT190199208-199608

main16571-64210i2C..CT195199208-199608

main16571-74260i4SFE..ST190199208-199408

main16571-74270i3SFE..ST195199208-199608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i2C..CT19#199208-199312

sub90467-34003

main90467-34003i4AFE,5AFE,7AFE..AT19#199208-199608

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-16140i4AFE,5AFE..AT19#199208-199402

sub16572-16210

main16572-16210i4AFE,5AFE,7AFE..AT19#199402-199608

main16572-64230i2C..CT190199208-199608

main16572-64240i2C..CT195199208-199306

sub16572-64241

main16572-64241i2C..CT195199306-199608

main16572-74190i3SFE,4SFE..ST19#199208-199608

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i2C..CT19#199208-199312

sub90467-34003

main90467-34003i3SFE,4SFE..ST19#199312-199608

sub90467-34004

main90467-34003i4AFE,5AFE..AT19#199208-199312

sub90467-34004

main90467-37001i2C..CT19#199208-199608

WATER INLET SIDE

sub90467-37003

16611BRACKET, RADIATOR RESERVE TANK

main16611-74110i3SFE,4SFE..ST19#199208-199608

16701SHROUD SUB-ASSY, FAN

main16711-64351i2C..CT190..MTM199208-199608

main16711-64360i2C..CT195;2C..CT190..ATM199208-199301

sub16711-64361

main16711-64361i2C..CT195;2C..CT190..ATM199301-199510

sub16711-64362

main16711-64362i2C..CT195;2C..CT190..ATM199510-199608

main16711-74080i3SFE..ST195..ATM199208-199608

main16711-74430i4AFE,5AFE..AT190,192..MTM199208-199608

main16711-74440i4SFE..ST190..ATM;3SFE..ST195..MTM199208-199608

8401

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9009904117

main90099-04117

9009905164

main90099-05164

9009935025

main90099-35025

9011606136

main90116-06136

9011908419

main90119-08419

9011908875

main90119-08875

9011910194

main90119-10194

9017906143

main90179-06143

9017908053

main90179-08053

9017908153

main90179-08153

9151160835

main91511-60835

91511B0816

main91511-B0816

91651B0616

main91651-B0616

9165260612

main91652-60612

91652B0816

main91652-B0816

9211260835

main92112-60835

9212240820

main92122-40820

9613241300

main96132-41300

9613541300

main96135-41300

9955510200

main99555-10200

51 parts on this diagram · 5 diagrams in section
