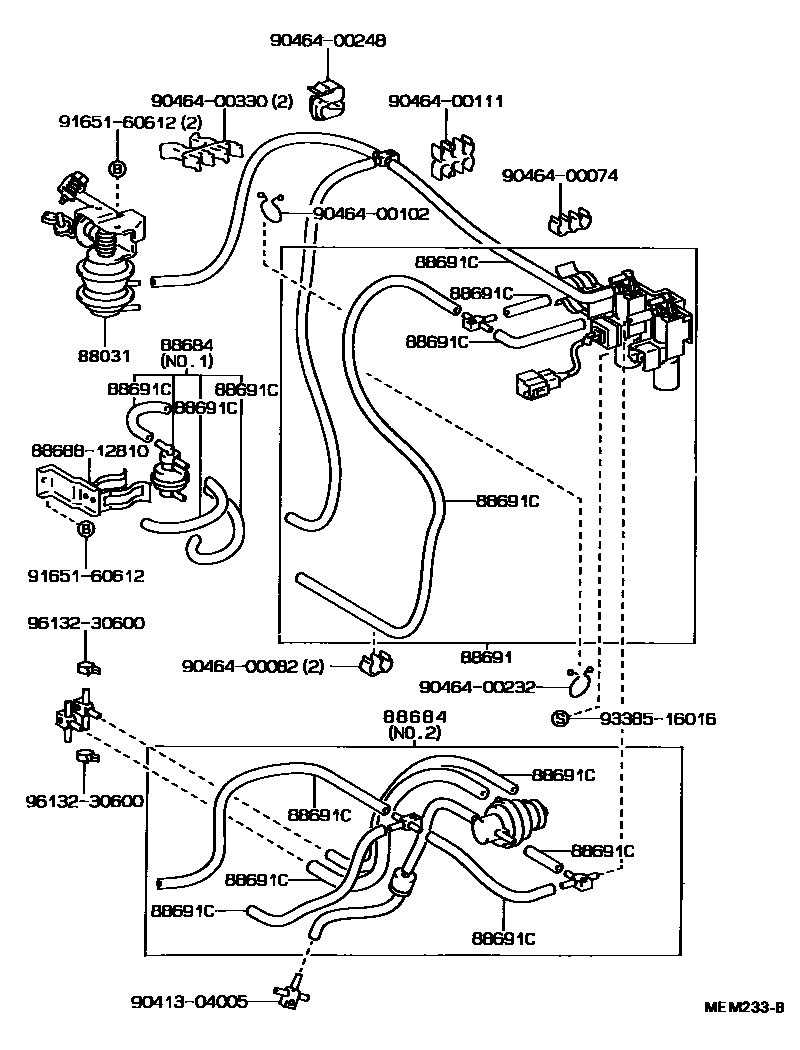

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0003 1 0004 1 0005 1 0008 1 0009 1 0010 1 0011 1

88031ACTUATOR SET, IDLE-UP

main88031-12180iAT170..4F..SG; AT170..4FC..SG; AT170..5F..SG198903-198910

main88031-12181iAT170..4F..SG; AT170..4FC..SG; AT170..5F..SG; AT170..DX,SE,SV198910-199005

main88031-12200iET176199005-199211

main88031-16080iET176198805-199005

main88031-20080iCT170..4FC..SE199007-199208

88684VALVE, VACUUM

main88684-20010iET176..MTM199005-199211

main88684-20020iET176..3FC199005-199211

main88684-22010iAT175;AT170,ST170..DX,SE,SG199012-199208

main88684-22020iAT170..4F..SG; AT170..4FC..SG; AT170..5F..SG198805-198903

main88684-22030iAT170..4FC..(DX,SE,SV)198805-199005

main88684-22040iAT170..4F..SG; AT170..5F..SG198805-198903

main88684-22050iET176..MTM198805-199005

main88684-22060iET176..3FC198805-199005

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88609-20340iAT175..SGEXT198808-199005

main88690-20850iCT17#..VAN,WG;CT170..SED..5F199007-199211

main88690-2B080iST170..SE,SX; ST170..SGEXT198903-199005

main88690-2B110iET176198805-199005

main88690-2B170iAT170..MTM..(DX,SE,SV)198805-199005

main88690-2B180iAT170..4FC..SG198805-198903

main88690-2B200iCT17#..DX,SG198805-198903

main88690-2B360iAT170..4FC..SGEXT199005-199208

main88690-2B380iET176199005-199211

main88690-2B400iCT17#..4FC..(DX,SV)199007-199211

main88691-10010iAT170,171,ST170..S,SV,SX; AT170,175,ST170..SED199005-199012

main88691-12150iAT170,171,ST170..S,SV,SX; AT170,175,ST170..SED199005-199012

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main90445-08234iCT170..4FC..SE; CT170..4FC..SG199012-199208

main90445-08260iCT170..SE;CT176..5F; CT170..SG198903-199005

main90999-92002×4iAT170..4FC..(DX,SE,SV); AT170..4FC..(DX,SV);AT170..MTM..(DX,SE,SV); AT170..4FC..SG; AT170..DX,SE,SV; AT170..MTM..(DX,SE,SV); AT171,175..GLIM,SG,SGEXT; AT171..4FC..S; AT171..S198805-199005

main90999-92003iAT170..(4FC,5F)..SG; AT170..4F..SG; AT170..4FC..SG; AT170..5F..SG198805-198903

main90999-92004iAT170..4F..SG; AT170..5F..SG; ST170198805-198903

main90999-92006iAT170..4F..SG; AT170..4FC..SG; AT170..5F..SG198903-199005

8868812810BRACKET, COOLER DIAPHRAGM

main88688-12810

9041304005

main90413-04005

9046400074

main90464-00074

9046400082

main90464-00082

9046400102

main90464-00102

9046400111

main90464-00111

9046400232

main90464-00232

9046400248

main90464-00248

9046400330

main90464-00330

9165160612

main91651-60612

9338516016

main93385-16016

9613230600

main96132-30600

16 parts on this diagram · 8 diagrams in section
