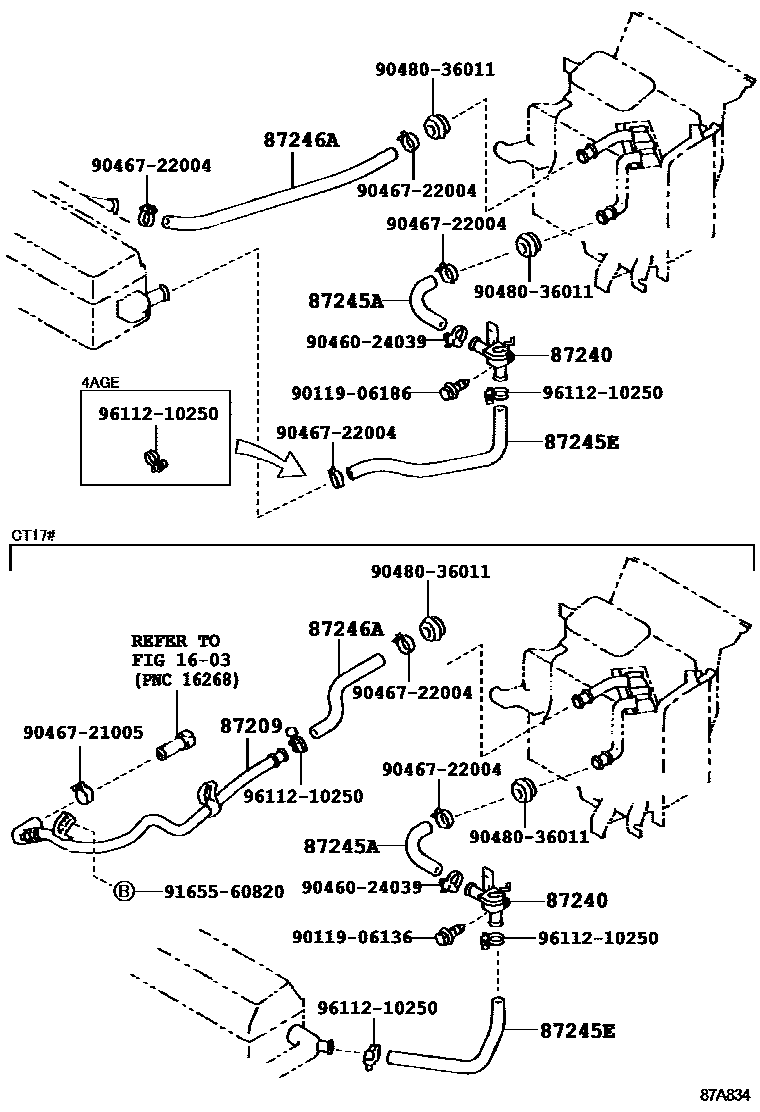

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87209HOSE SUB-ASSY, WATER

main87209-12400iCT17#198805-199106

main87209-12440iCT170199106-199211

87240VALVE ASSY, HEATER WATER

main87240-20230iAT17#,CT17#,ET176,ST170198805-199211

87245AHOSE, HEATER WATER, INLET A

main87245-2B220iAT17#,CT17#,ET176,ST170198805-199211

87245EHOSE, HEATER WATER, INLET E

main87245-2B240iAT17#..DX,S,SE,SG,SGEXT,SV198805-199211

main87245-2B250iST170198805-199005

main87245-2B260iST170199005-199211

main87245-2B270iCT17#198805-199211

main87245-2B280iET176198805-199211

main87245-2B410iAT171..GLIM198805-199208

87246AHOSE, HEATER WATER, OUTLET A

main87245-2B290iAT170,171..DX,S,SE,SG,SGEXT,SV198805-199106

main87245-2B291iAT170,171..DX,S,SE,SG,SGEXT,SV199106-199109

main87245-2B292iAT170,171..DX,S,SE,SG,SGEXT,SV199109-199211

main87245-2B300iST170198805-199211

main87245-2B310iCT17#198805-199211

main87245-2B320iET176198805-199211

main87245-2B420iAT171..GLIM198805-199208

main87245-2B470iAT175198808-199106

main87245-2B471iAT175199106-199109

main87245-2B472iAT175199109-199208

9011906136

main90119-06136

9011906186

main90119-06186

9046024039

main90460-24039

9046721005

main90467-21005

9046722004

main90467-22004

9048036011

main90480-36011

9165560820

main91655-60820

9611210250

main96112-10250

14 parts on this diagram · 2 diagrams in section
