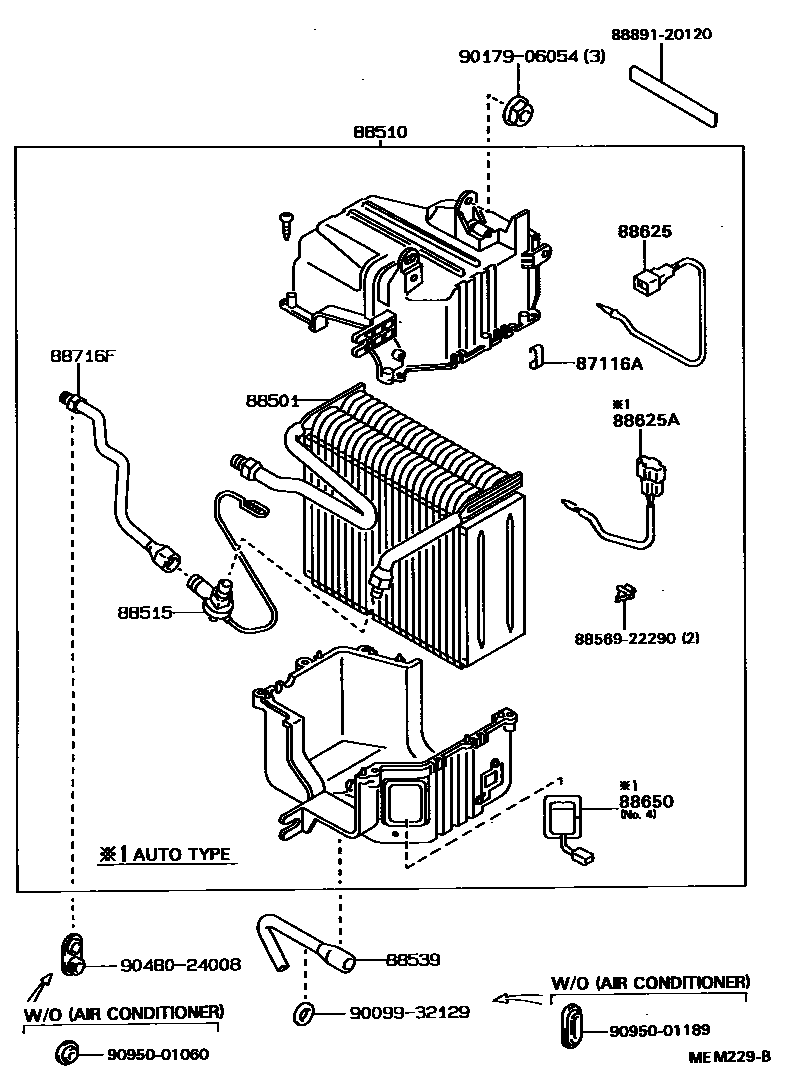

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×3iAT170..4FC..(DX,SG,SV); AT171..5F..S198805-199005

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20220iAT17#; CT176198805-199211

88510UNIT ASSY, COOLER

main88510-20780iAT171..5F..S198805-199001

main88510-20800iAT170..4F..SG; AT170..4FC..SG; AT170..5F..SG; CT170..SG198903-199005

main88510-20810iAT171..4FC;AT175..SGEXT;AT171,CT176..5F..(DX,GLIM,SG);AT170,CT170,ST170..SE,SG,SGEXT,SX; CT176..4FC198805-199005

88515VALVE, COOLER EXPANSION

main88515-16040iAT170..(SE,SGEXT,SV)..EFI; AT170..4FC..SE..CBR; AT171,ST170; AT175,CT170..SE,SGEXT198904-199211

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20160iAT170..(4FC,5F)..SG; AT170..4F..SG; AT171,CT170..S,SE; CT170..SG; CT176; ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX198805-198903

main88539-20180iAT175198808-199208

88625THERMISTOR, COOLER, NO.1

main88625-24050iAT17#; CT170..4FC..SG; CT176199005-199211

main88625-32040iAT171..5F..S198805-199005

88625ATHERMISTOR, COOLER NO.2

main88625-20230iAT170..SGEXT; AT171..EFI199005-199211

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20450iAT170..(4FC,5F)..SG; AT170..4F..SG; AT170..DX,SE,SV198805-199005

main88650-20470iCT17#199005-199012

main88650-20480iCT176..DX198805-199005

main88650-20490iAT170..(4FC,5F)..SG; AT170..4F..SG; AT171,ST170..S,SGEXT,SX198805-199005

main88650-20500iAT17#,CT170..GLIM,SE,SGEXT; AT170..(4FC,5F)..SG; AT170..4F..SG; AT171..S; ST170198805-198903

main88650-20510iST170198805-199005

main88650-20590iAT170..4FC..SE; AT171,175..GLIM,S,SGEXT; CT170..SE; ST170..SGEXT,SX198805-198904

main88650-20600iET176..MTM198805-198911

main88650-20610iET176..MTM198805-198911

main88650-20620iAT171,175..S,SG,SGEXT198805-199005

main88650-20630iAT171..GLIM198805-198908

main88650-20631iAT171..GLIM198908-199208

main88650-20640iET176..3FC198808-198911

main88650-20650iET176..3FC198808-198911

main88650-20750iST170199005-199012

NO.1

main88650-20760iAT17#..DX,S,SE,SG,SGEXT; AT170..SV199005-199012

NO.1

main88650-20770iET176..MTM198911-199005

main88650-20780iET176..MTM199005-199211

NO.1

main88650-20790iET176..3FC198911-199005

main88650-20800iET176..3FC198911-199005

main88650-2B130iAT170,CT170..SV199005-199211

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2B420iAT170..4FC..(DX,SG,SV); AT171..5F..S198805-199005

8856922290CLAMP (FOR COOLER RELAY)

main88569-22290

8889120120PACKING (FOR COOLER)

main88891-20120

9009932129

main90099-32129

9017906054

main90179-06054

9048024008

main90480-24008

9095001060

main90950-01060

9095001189

main90950-01189

16 parts on this diagram · 3 diagrams in section
