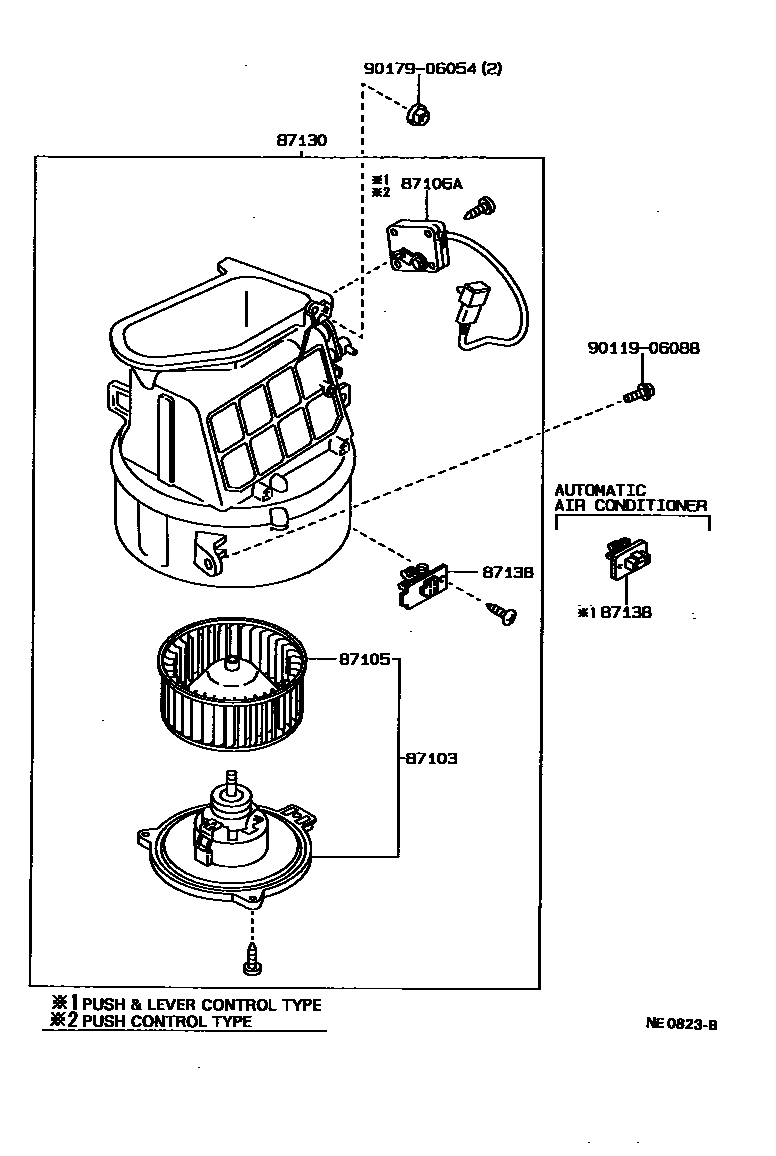

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1W(AUTO AIR CONDITIONER)

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20020iAT17#,CT17#,ET176,ST170198805-199107

main87103-26010iAT17#,CT17#,ET176,ST170199107-199211

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20100iAT17#,CT17#,ET176,ST170198805-199211

87106ASERVO SUB-ASSY, DAMPER

main87106-20090iAT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG; ST170..SGEXT198903-199005

main87106-20100iAT170,CT170..SG; ST170..SGEXT198903-199005

main87106-20110iAT170,CT170..SG; ST170..SGEXT198903-199005

main87106-20190iAT17#,ST170..S,SGEXT,SX199005-199211

RADIATOR,NO.1

87130BLOWER ASSY, HEATER, FRONT

main87130-20340iST170..(SGEXT,SX)..CI;AT170,171,CT17#,ET176..(DX,S,SG,STD,SV)..(CBR,DSL,EFI)198805-199211

main87130-20360iAT171,ST170..(S,SE)..(CI,EFIS);AT170,171,CT170,ST170..(GLIM,SE,SGEXT,SX)..(CBR,DSL,EFI)198805-199211

main87130-20420iAT175..SG198808-199208

main87130-20430iAT175..SE,SGEXT199005-199208

87138RESISTOR, HEATER BLOWER

main87138-20130iAT17#,CT17#,ET176,ST170198805-199211

main88635-20080iAT170..(4FC,5F)..SG; AT170..4F..SG; AT171,ST170..S,SGEXT,SX198805-199005

9011906088

main90119-06088

9017906054

main90179-06054

7 parts on this diagram · 3 diagrams in section
