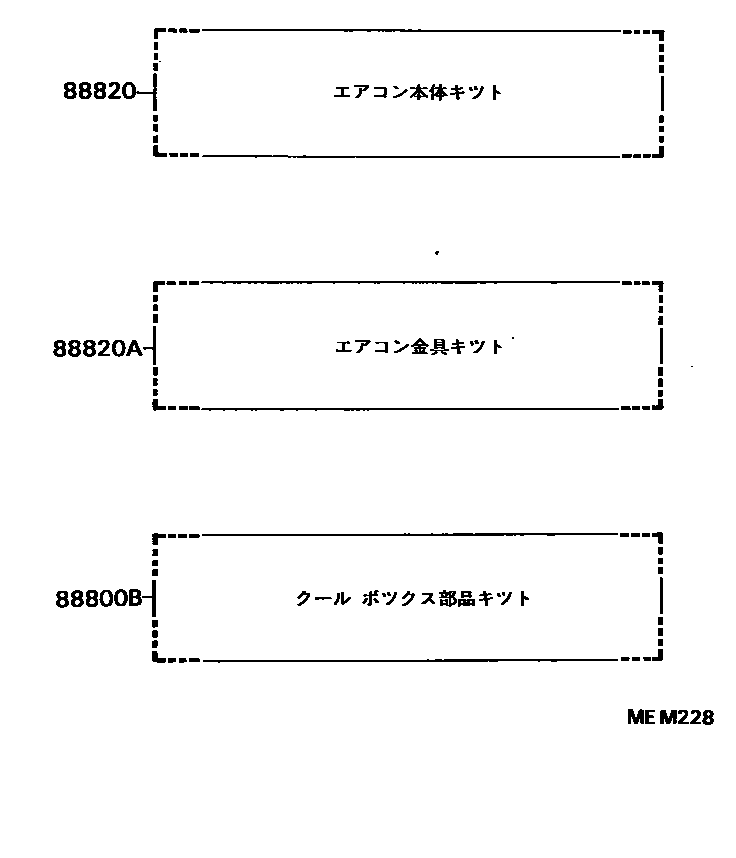

HEATING & AIR CONDITIONING - SET

88800BCOOL BOX AND ACCESSORY ASSY, NO.1

main88800-20370iAT170..(4FC,5F)..SG; AT170..4F..SG; AT171,CT170..S,SE; AT175,ET176;AT170,171,ST170..DX,GLIM,SE,SGEXT,SV,SX; CT17#..DX,SG198805-198903

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-20160iAT171..5F..S198805-199005

main88820-20200iAT170..4F..SG; AT170..4FC..SG; AT170..5F..SG; CT170..SG198903-199005

main88820-20210iAT170..(DX,SV)..CBR;AT170..(DX,SG)..EFI;AT175,ET176..DX,SG,STD198805-199211

main88820-20320iCT170..4FC..SV; CT170..5F..SV; CT170..SED..4FC;AT171,CT176..GLIM,S,SG; CT176..DX199005-199211

main88820-20330iCT170..SE;AT17#,ST170..GLIM,S,SE,SGEXT,SV,SX; CT170..SV199005-199211

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-2B221iAT170..MTM..(DX,SV); AT170..MTM..SG198805-199005

main88830-2B231iAT170..MTM..SG198903-199005

main88830-2B261iST170..SGEXT,SX198805-199005

main88830-2B271iST170..SGEXT198903-199005

main88830-2B341iCT170..5F..SG198805-199005

main88830-2B351iCT176..5F..DX198805-199005

main88830-2B361iCT170..4FC..SG198903-199005

main88830-2B381iET176..MTM198805-199005

main88830-2B391iET176..MTM198805-199005

main88830-2B401iCT176..5F..DX; CT176..5F..SG;CT170..4FC..SG198805-199005

main88830-2B411iCT176..5F..DX; CT176..5F..SG;CT170..4FC..SG198805-199005

main88830-2B421iCT170..5F..SG198805-199005

main88830-2B431iCT176..5F..DX198805-199005

main88830-2B441iCT170..4FC..SG198903-199005

main88830-2B451iCT170..5F..SE198805-199005

main88830-2B461iCT170..5F..SG198903-199005

main88830-2B581iET176..3FC198805-199005

main88830-2B591iET176..3FC198805-199005

main88830-2B601iAT170..4FC..SG198903-199005

main88830-2B631iAT170..4FC..(DX,SV); AT170..4FC..SG198805-199005

main88830-2B900iAT171..5F..S198805-199005

main88830-2B910iAT171..5F..S198805-199005

main88830-2B920iAT171..5F..S198805-199005

main88830-2B930iAT171..5F..S198805-199005

main88830-2B940iCT170..5F..SE198805-199005

main88830-2B950iCT170..5F..SG198903-199005

main88830-2B960iCT170..4FC..SE198805-199005

main88830-2B970iCT170..4FC..SE198805-199005

main88830-2B980iST170..SGEXT,SX198805-199005

main88830-2B990iST170..SX198905-199005

main88830-2B991iST170..SE; ST170..SGEXT198904-199005

main88830-2D030iAT171..GLIM198805-199005

main88830-2D040iAT171..GLIM198805-199005

main88830-2D050iAT170..4F..SG; AT170..5F..SG198805-199005

main88830-2D060iAT170..MTM..SG198903-199005

main88830-2D070iAT170..4FC..SG198805-199005

main88830-2D080iAT170..4FC..SE198805-199005

main88830-2D250iAT175..5F..SG198808-199005

main88830-2D260iAT175..4FC..SG198808-199005

main88830-2D410iAT171..4FC..S198805-199005

main88830-2D420iAT171..4FC..S198805-199005

main88830-2D430iAT171..4FC..S198805-199005

main88830-2D440iAT171..4FC..S198805-199005

main88830-2D660iAT175..5F..SGEXT198808-199005

main88830-2D670iAT175..4FC..SGEXT198808-199005

main88830-2D700iAT175..5F..SGEXT198808-199005

main88830-2D710iAT175..4FC..SGEXT198808-199005

main88830-2G170iAT170..MTM..(DX,SG)199005-199208

main88830-2G180iAT170..MTM..(SE,SGEXT)199005-199208

main88830-2G240iST170199005-199211

main88830-2G310iCT170..5F..SG199005-199208

main88830-2G320iCT170..5F..SG199012-199208

main88830-2G370iCT170..5F..SG199005-199208

main88830-2G380iCT170..5F..SG199012-199208

main88830-2G490iCT17#..5F..(DX,SV); CT176..SG199005-199211

main88830-2G500iCT170..4FC..SG199012-199208

main88830-2G550iCT17#..5F..(DX,SV)199005-199211

main88830-2G560iCT17#..5F..(DX,SV)199005-199211

main88830-2G570iCT176..4FC198805-199208

main88830-2G580iCT17#..4FC..(DX,SV)199005-199211

main88830-2G590iCT17#..4FC..(DX,SV)199005-199007

main88830-2G600iCT17#..4FC..(DX,SV)199005-199211

main88830-2G610iET176..MTM199005-199211

main88830-2G620iET176..MTM199005-199211

main88830-2G630iET176..3FC199005-199211

main88830-2G640iET176..3FC199005-199211

main88830-2G650iAT175..5F..SG199005-199208

main88830-2G660iAT175..5F..(SE,SGEXT)199005-199208

main88830-2G710iAT175..4FC..SG199005-199208

main88830-2G720iAT175..4FC..(SE,SGEXT)199005-199208

main88830-2H020iAT170..4FC..(DX,SG)199005-199208

main88830-2H030iAT170..4FC..(SE,SGEXT)199005-199208

main88830-2H160iCT170..5F..SG199012-199208

main88830-2H170iCT170..5F..SG199012-199208

main88830-2H180iCT170..4FC..SE199005-199007

main88830-2H190iCT170..4FC..SG199012-199208

main88830-2H410iAT170..5F..SE199005-199208

main88830-2H420iAT170..MTM..SGEXT199005-199208

main88830-2H430iAT170..4FC..SE199005-199208

main88830-2H440iAT170..4FC..SGEXT199005-199208

main88830-2H490iAT171..EFIS199005-199208

main88830-2H500iAT171..EFIS199005-199208

main88830-2H520iAT171..EFIS199005-199208

main88830-2H530iST170..SX199005-199211

main88830-2H540iST170..SGEXT,SX199005-199211

main88830-2H550iAT175..5F..SE199005-199208

main88830-2H560iAT175..5F..SGEXT199005-199208

main88830-2H570iAT175..4FC..SE199005-199208

main88830-2H580iAT175..4FC..SGEXT199005-199208

main88830-2H590iAT170..5F..SV199005-199211

main88830-2H600iAT170..4FC..SV199005-199211

main88830-2H610iCT170..5F..SV199005-199211

main88830-2H620iCT170..5F..SV199005-199211

main88830-2H630iCT170..5F..SV199005-199211

main88830-2H640iCT170..5F..SV199005-199211

main88830-2H650iCT170..4FC..SV199005-199211

main88830-2H660iCT170..4FC..SV199005-199211

main88830-2H670iCT170..4FC..SV199005-199007

main88830-2H680iCT170..4FC..SV199005-199211

main88830-2H750iAT171..EFI199005-199208

main88830-2H760iAT171..EFI199005-199208

main88830-2H770iCT170..4FC..SG199005-199208

main88830-2H780iCT170..4FC..SG199012-199208

main88830-2H790iCT170..4FC..SG199005-199208

main88830-2H870iCT17#..5F..(DX,SV); CT176..SG199005-199211

main88830-2L060iCT17#..4FC..(DX,SV)199007-199211

main88830-2L070iCT170..4FC..SE199007-199208

main88830-2L080iCT170..4FC..SV199007-199211

3 parts on this diagram · 1 diagram in section
