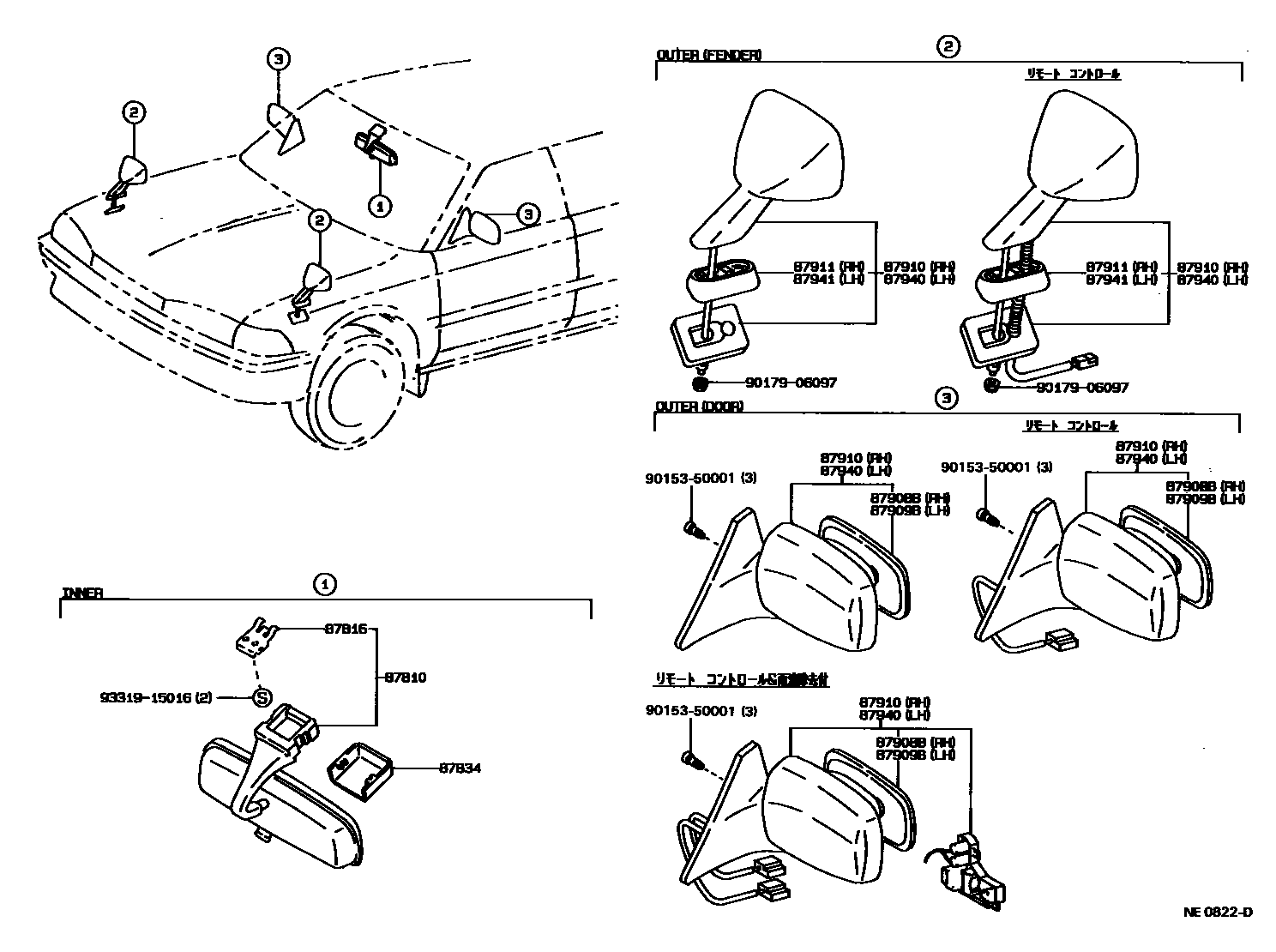

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
SABLE,TRIM4#
DEEP BLUE,TRIM8#
SHADOW GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT GRAY,TRIM1#
87908BMIRROR SUB-ASSY, RH
*88
87909BMIRROR SUB-ASSY, LH
*88
87910MIRROR ASSY, OUTER REAR VIEW, RH
*DM
BLACK,040 ,174 ,175 ,3H4 ,4H2 ,8E9; BLACK,041 ,174 ,4H2 ,8E9; BLACK,174 ,175 ,3H4 ,4H2 ,8E9; BLACK,174 ,3H4 ,4H2 ,8E9
main87910-2B200-05iAT170..(4FC,5F)..SG; AT170..4F..SG; CT17#,ET176..SE,SG;AT17#,ST170..S,SE,SGEXT,SX198908-199005
*DRC,SUPER WHITE,040
SUPER RED,3E5
*DRC,DARK TURCUOISE MICA,DARK TURCU0ISE MICA,742
*DRC,RED MICA,3J9; RED MICA,3J9
*DRC,PASTEL AQUA M,745; PASTEL AQUA M,745
main87910-2B210-01iAT171..GLIM; AT171..S; ST170..SE;AT170,175,CT170..SE,SGEXT; ST170..SX198908-199005
RED MICA,3J9
PASTEL AQUA M,745
*88,BLACK,175 ,8E9
*88,RED MICA,3J9
*88,REDISH SHILVER META,178
*88,DARK TURCUOISE MICA,742
*88,SUPER WHITE 2,040
*88,PASTEL AQUA META,745
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-20210iAT170..(4FC,5F)..SG; AT170..4F..SG; AT175,CT17#,ET176;AT170,171,ST170..DX,GLIM,S,SE,SGEXT,SV,SX198805-198903
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-2B250iST170..SE;CT17#,ET176..SG; ST170..SGEXT,SX;AT17#,CT170..GLIM,S,SE,SGEXT199012-199105
*FRC
*DM
main87940-2B270-01iAT170..(4FC,5F)..SG; AT170..4F..SG; CT170;AT17#,ST170..S,SE,SGEXT; CT176,ET176..SG; ST170..SX198908-199005
main87940-2B270-05iAT170..(4FC,5F)..SG; AT170..4F..SG; CT17#,ET176..SE,SG;AT17#,ST170..S,SE,SGEXT,SX198908-199005
REDISH SHILVER M,178
*DRC,PASTEL AQUA M,745; PASTEL AQUA M,745
main87940-2B280-01iAT170,171,CT170,ST170..S,SE,SX; AT175..SE,SGEXT;AT170,171,CT170,ST170..GLIM,SGEXT,SV199005-199105
PASTEL AQUA M,745
*88,BLACK,175 ,8E9
*88,RED MICA,3J9
*88,REDISH SHILVER META,178
*88,DARK TURCUOISE MICA,742
*88,SUPER WHITE 2,040
*88,PASTEL AQUA META,745
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-20230iAT170..(4FC,5F)..SG; AT170..4F..SG; AT175,CT17#,ET176;AT170,171,ST170..DX,GLIM,S,SE,SGEXT,SV,SX198805-198903
9015350001
main90153-50001
9017906097
main90179-06097
9331915016
main93319-15016
12 parts on this diagram · 1 diagram in section
