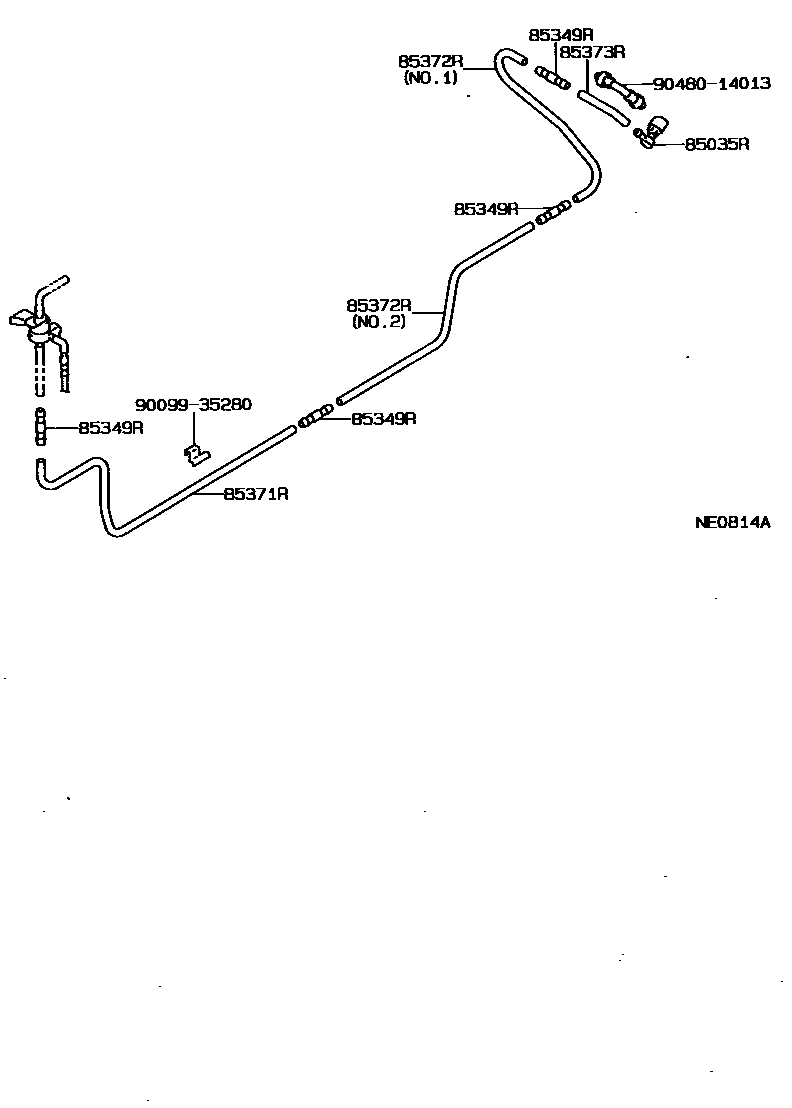

REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-21020iAT170,CT176,ET176,ST170..VAN,WG198805-199005

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122×4iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

main90099-33629iAT170,CT170,ST170..WG198805-199211

main90099-33630iCT176,ET176198805-199211

main90446-07001iAT170,ST170..WG198805-199005

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

9009935280

main90099-35280

9048014013

main90480-14013

7 parts on this diagram · 1 diagram in section
