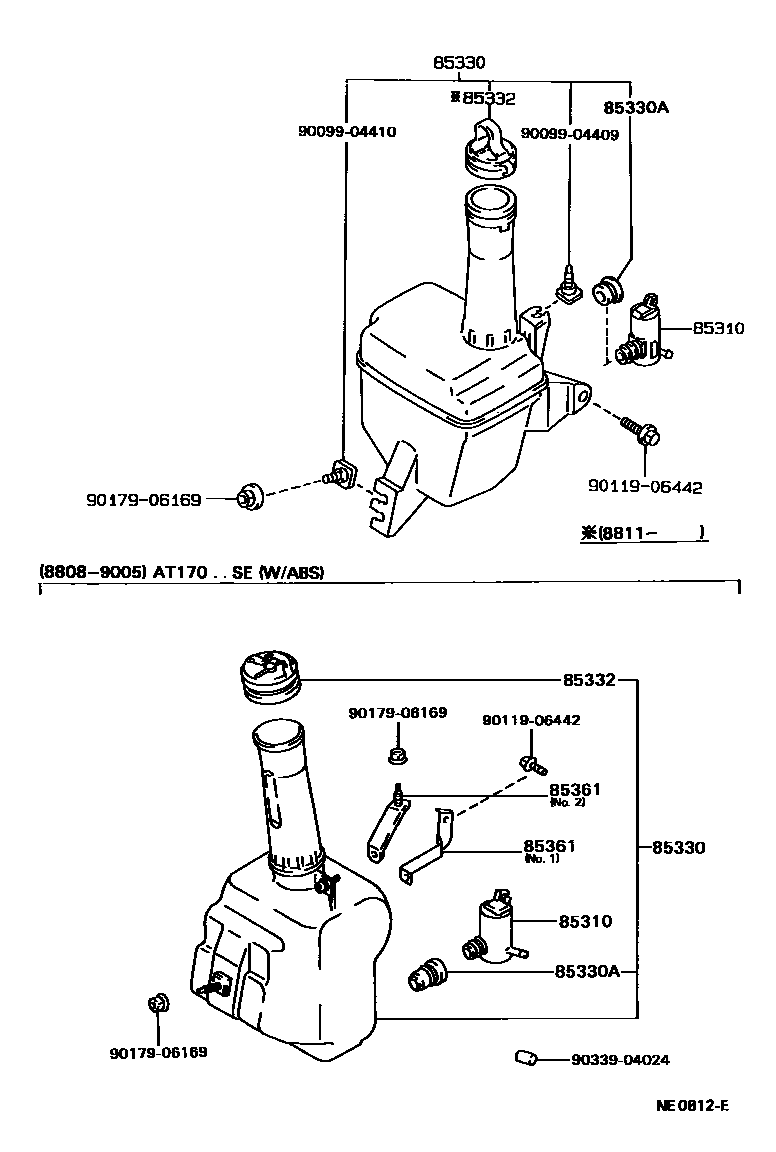

WINDSHIELD WASHER

0001 1 0002 1 0003 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAT17#,CT17#,ET176,ST170198805-199211

85330JAR ASSY, WINDSHIELD WASHER

main85315-20250iAT17#..S,SE,SG,SGEXT199005-199208

main85330-10240iAT171..EFI198805-199208

main85331-20630iCT176,ET176..DX,STD;AT17#,CT170,ST170..DX,GLIM,S,SE,SG,SGEXT,SV198805-198811

sub85331-20631

main85331-20631iCT176,ET176..DX,STD;AT17#,CT170,ST170..DX,GLIM,S,SE,SG,SGEXT,SV198811-199211

main85331-20640iCT176,ET176,ST170..SG,SX198805-198811

sub85331-20641

main85331-20640iAT17#,CT170,ST170..SED198805-198808

sub85331-20641

main85331-20640iAT17#,CT170,ST170..SED198805-198808

sub85331-20641

main85331-20640iAT170,CT176,ET176..(VAN,WG)..(DX,STD,SV)198808-198811

sub85331-20641

main85331-20640iAT170,CT176,ET176..(VAN,WG)..(DX,STD,SV)198808-198811

sub85331-20641

main85331-20641iAT170,CT176,ET176..(VAN,WG)..(DX,STD,SV)198811-198908

main85331-20641iAT170,CT17#,ET176..(VAN,WG)..(DX,STD,SV)198908-199211

main85331-20641iAT17#,ST170..SED198811-199211

main85331-20650iAT170..SE198808-199005

main85331-20740iAT171..S198811-199005

main85331-22310iAT171..S198808-198811

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT170,CT17#,ET176..(VAN,WG)..(DX,STD,SV)198805-199211

85332CAP, WINDSHIELD WASHER JAR

main85316-20250iAT17#,ST170..S,SE,SG,SGEXT199005-199208

sub85316-16070

main85332-12320iAT171198808-198811

main85332-12320iAT171..GLIM198805-198808

main85332-12650iAT171..EFI198811-199208

sub85316-34050

main85332-20650iAT170..SE198811-199005

main85332-32130iAT170..SE198808-198811

main85332-32161iAT17#,CT17#,ET176,ST170198811-199211

85361HOLDER, WINDSHIELD WASHER

main85361-20310iAT170..SE198808-199005

main85361-20650iAT170..SE198808-199005

9009904409

main90099-04409

9009904410

main90099-04410

9011906442

main90119-06442

9017906169

main90179-06169

9033904024

main90339-04024

10 parts on this diagram · 3 diagrams in section
