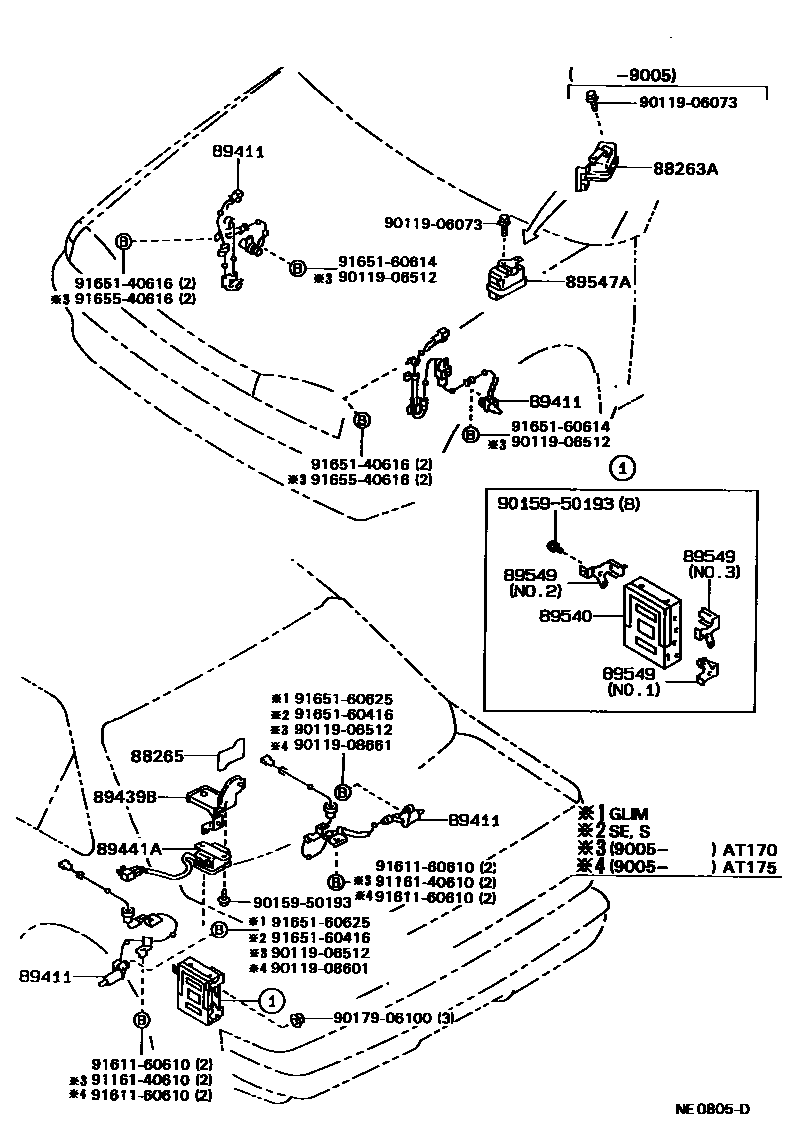

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-20050iAT170,171,ST170..GLIM,S,SE198805-199005

88265LABEL, SKID CONTROL CAUTION

main88265-20060iAT175199005-199208

89411SENSOR, SPEED

main89542-20030iAT170,171,ST170..S,SE198805-199005

FRONT,RH

main89542-20040iAT170,171,ST170..S,SE,SG,SGEXT199005-199208

FRONT,RH

main89542-20050iAT171,175..EFI199005-199208

FRONT,RH

main89543-20030iAT170,171,ST170..S,SE198805-199005

FRONT,LH

main89543-20040iAT170,171,ST170..S,SE,SG,SGEXT199005-199208

FRONT,LH

main89543-20050iAT171,175..EFI199005-199208

FRONT,LH

main89545-20030iAT170,171,ST170..S,SE198808-199005

REAR,RH

main89545-20040iAT171..GLIM198805-199005

REAR,RH

main89545-20070iAT170,171,ST170..S,SE,SG,SGEXT199005-199208

REAR,RH

main89545-20080iAT171..EFI199005-199208

REAR,RH

main89545-32020iAT175199005-199208

REAR,RH

main89546-20030iAT170,171,ST170..S,SE198808-199005

REAR,LH

main89546-20040iAT171..GLIM198805-199005

REAR,LH

main89546-20070iAT170,171,ST170..S,SE,SG,SGEXT199005-199208

REAR,LH

main89546-20080iAT171..EFI199005-199208

REAR,LH

main89546-32020iAT175199005-199208

REAR,LH

89439BBRACKET, SENSOR

main89439-20030iAT175199005-199208

89441ASENSOR, DECELERATION

main89441-32010iAT175199005-199208

89540COMPUTER ASSY, SKID CONTROL

main89540-20190iAT170,171,ST170..S,SE,SG,SGEXT199005-199208

main89541-20030iAT171..GLIM198805-199208

main89541-20040iAT170,171,ST170..S,SE198808-199005

main89541-20090iAT175199005-199208

89547ARELAY, SKID CONTROL W/BRACKET

main89547-20020iAT17#,ST170..GLIM,S,SE,SG,SGEXT199005-199208

89549BRACKET, SKID CONTROL COMPUTER

main88267-20080iAT171..GLIM198805-199208

main88268-20070iAT171,175..EFI198805-199208

main88269-20070iAT170,171,ST170..GLIM,S,SE198805-199208

9011906073

main90119-06073

9011906512

main90119-06512

9011908601

main90119-08601

9011908661

main90119-08661

9015950193

main90159-50193

9017906100

main90179-06100

9116140610

main91161-40610

9161160610

main91611-60610

9165140616

main91651-40616

9165160416

main91651-60416

9165160614

main91651-60614

9165160625

main91651-60625

9165540616

main91655-40616

21 parts on this diagram · 1 diagram in section
