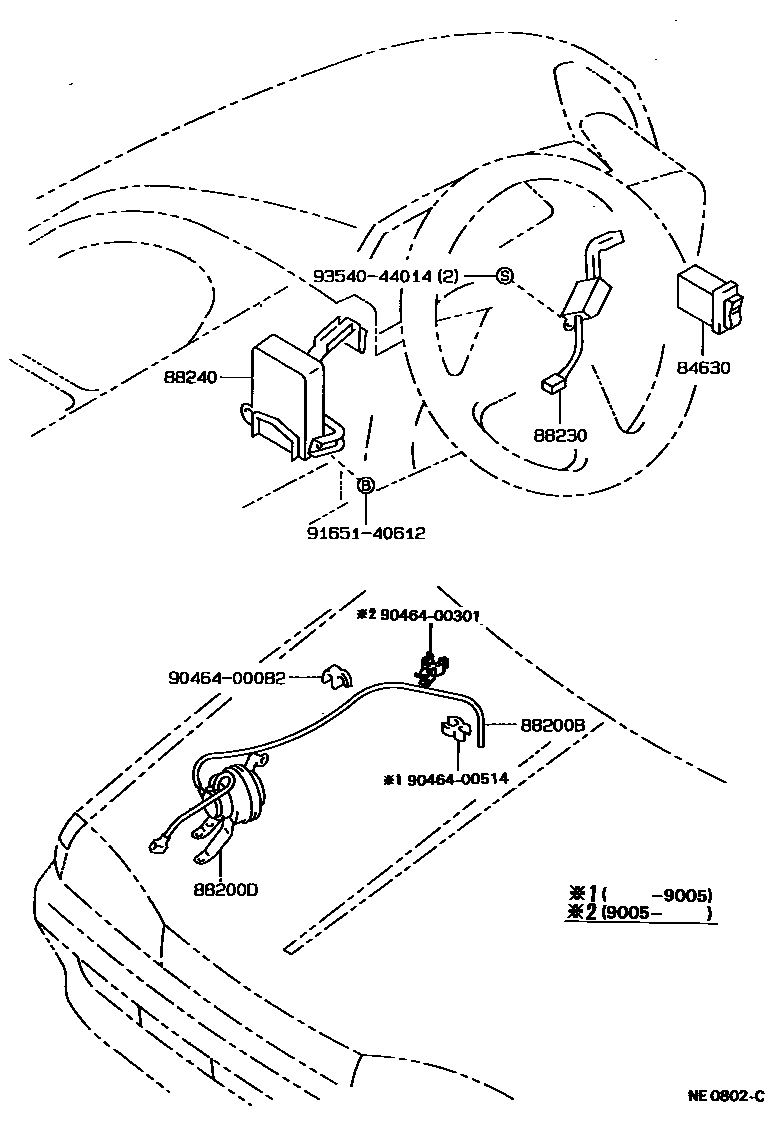

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20050iST170..SE,SX198805-199005

main84630-20130iST170..SE,SX199005-199211

88200BHOSE, CRUISE CONTROL VACUUM

main90999-92004iST170..SE,SX198805-199005

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20041iST170..SE,SX198805-199211

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-20090iST170..SE,SX198805-199005

main88230-20120iST170..SE,SX199005-199211

main88230-20130iST170..SE199005-199208

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20260iST170..SE,SX198805-199005

main88240-20390iST170..SE,SX199005-199211

9046400082

main90464-00082

9046400301

main90464-00301

9046400514

main90464-00514

9165140612

main91651-40612

9354044014

main93540-44014

10 parts on this diagram · 1 diagram in section
