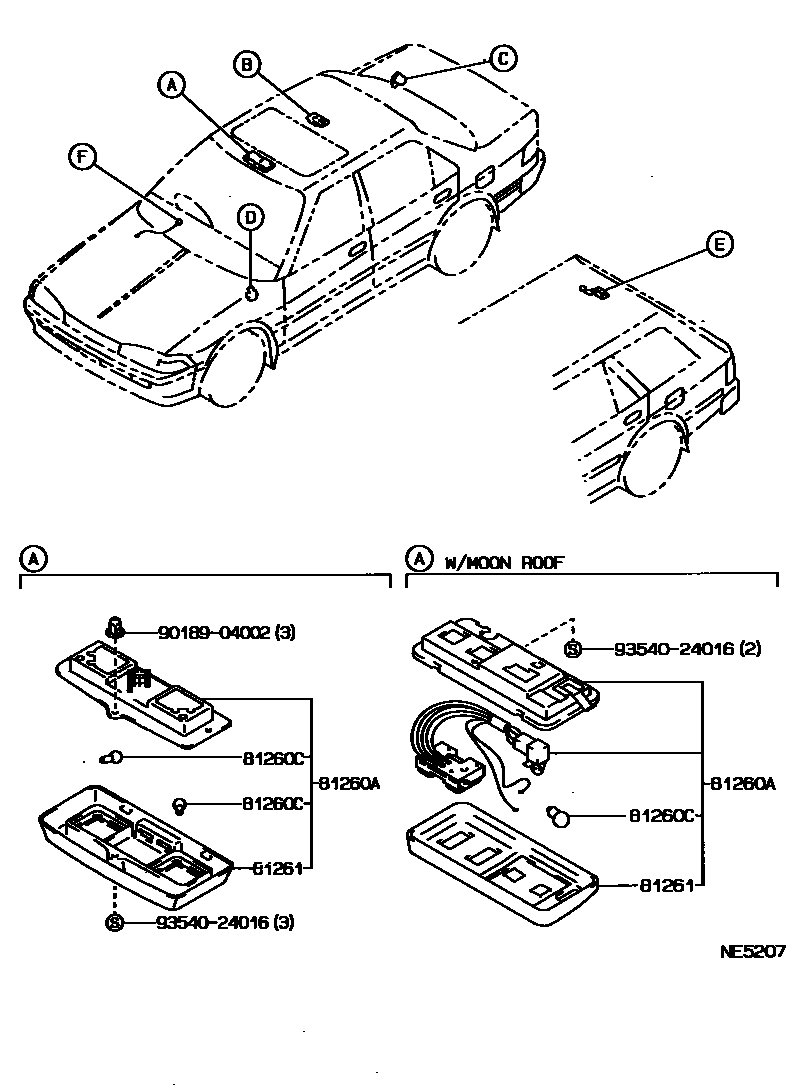

INTERIOR LAMP

0001 1 0002 1

81260LAMP ASSY, GLOVE BOX

main81260-32071iAT175,ST170..SGEXT198805-199005

main81260-32071iAT17#,CT170,ST170..GLIM,SE198805-199208

main81260-32071iAT171,ST170..(S,SX)..(EFI,EFIS)198805-199211

81260ALAMP ASSY, MAP

main81260-20130-03iAT171,175,CT170,ST170..GLIM,SE198805-199208

GRAY,TRIM1#

sub81260-20130

main81260-20130-04iCT170,ST170..SE198805-199005

BLUE,TRIM8#

sub81260-20130

main81260-20130-06iAT171,CT170,ST170..GLIM,SE198805-199208

SABLE,TRIM4#

sub81260-20130

main81260-20130-14iAT175,CT170,ST170..SE199005-199208

DARK BLUE,TRIM8#

sub81260-20130

main81260-20150-03iAT170,171..S,SE,SV;CT170,ST170..SGEXT,SV,SX198805-199211

GRAY,TRIM1#

sub81260-20150

main81260-20150-03iAT171,CT170,ST170..GLIM,SE198805-199208

sub81260-20150

main81260-20150-04iAT170,171..S,SE,SG;AT175,ST170..SGEXT198805-199005

sub81260-20150

main81260-20150-04iAT170,171..S,SE,SG;AT175,ST170..SGEXT198805-199005

BLUE,TRIM8#

sub81260-20150

main81260-20150-06iAT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX198805-199208

sub81260-20150

main81260-20150-06iAT171,CT170,ST170..GLIM,SE198805-199211

SABLE,TRIM4#

sub81260-20150

main81260-20150-14iCT170,ST170..SE199005-199208

DARK BLUE,TRIM8#

sub81260-20150

main81260-20150-14iCT170,ST170..SE199005-199208

sub81260-20150

81260CBULB(FOR MAP LAMP)

main90981-12005iAT171,175,CT170,ST170..GLIM,SE198805-199208

main90981-12014iST170..SE199005-199208

main90981-12014iST170..SGEXT,SX;AT170,171,CT170..GLIM,S,SE,SV198805-199211

81261LENS AND COVER, MAP LAMP

main81261-20130-03iAT171,175,CT170,ST170..GLIM,SE198805-199208

GRAY,TRIM1#

sub81261-20130

sub81260-20130

main81261-20130-04iCT170,ST170..SE198805-199005

BLUE,TRIM8#

sub81261-20130

sub81260-20130

main81261-20130-06iAT175,CT170,ST170..SE198805-199208

SABLE,TRIM4#

sub81261-20130

sub81260-20130

main81261-20130-14iAT175,CT170,ST170..SE199005-199208

DARK BLUE,TRIM8#

sub81261-20130

sub81260-20130

main81261-20150-03iAT170,171..S,SE,SV;CT170,ST170..SGEXT,SV,SX198805-199211

GRAY,TRIM1#

sub81261-20150

main81261-20150-03iAT171,CT170,ST170..GLIM,SE198805-199208

sub81261-20150

main81261-20150-04iAT170,171..S,SE,SG;AT175,ST170..SGEXT198805-199005

sub81261-20150

main81261-20150-04iAT170,171..S,SE,SG;AT175,ST170..SGEXT198805-199005

BLUE,TRIM8#

sub81261-20150

main81261-20150-06iAT171..GLIM198805-199211

SABLE,TRIM4#

sub81261-20150

main81261-20150-06iAT170,171..S,SE,SG,SV;AT175,ST170..SGEXT,SX198805-199208

sub81261-20150

main81261-20150-14iST170..SGEXT;AT170,171..S,SE199005-199208

sub81261-20150

main81261-20150-14iST170..SGEXT;AT170,171..S,SE199005-199208

DARK BLUE,TRIM8#

sub81261-20150

9018904002

main90189-04002

9354024016

main93540-24016

6 parts on this diagram · 2 diagrams in section
