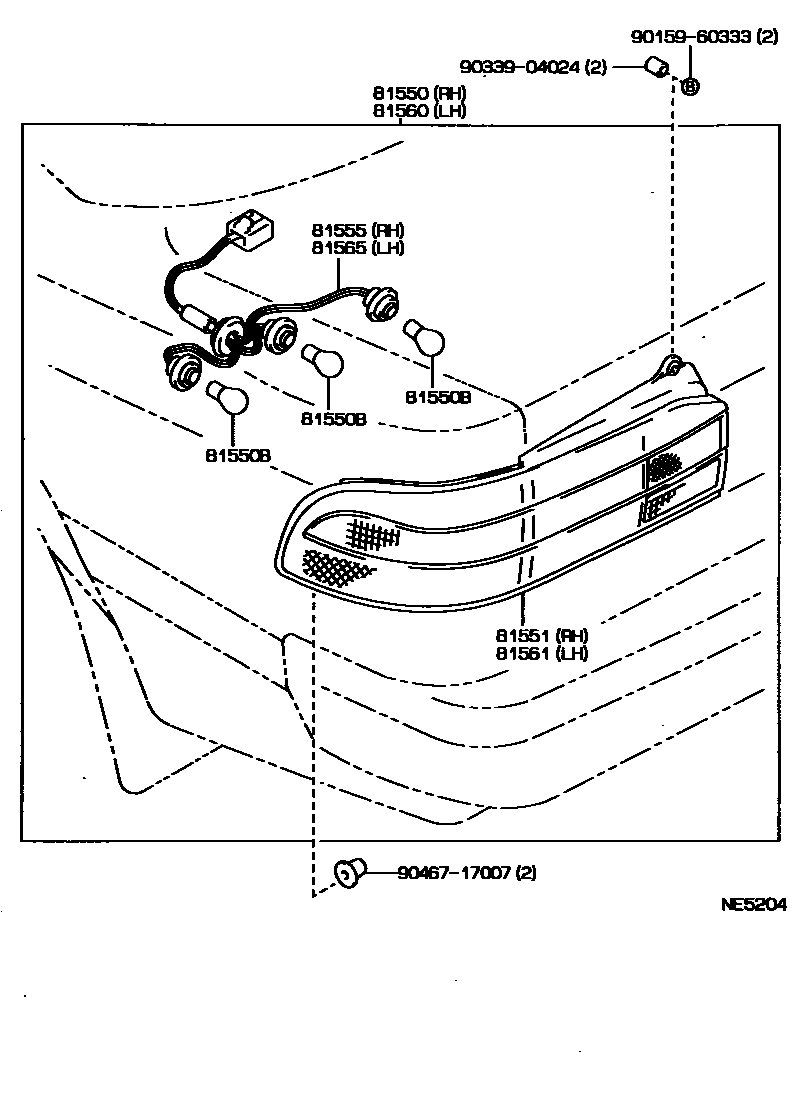

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-2B020iAT17#,CT170,ST170..SED198805-199005

main81550-2B021iAT17#,CT170,ST170..SED199005-199208

main81550-95503iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iAT17#,CT17#,ET176,ST170198805-199211

main99132-21210iAT17#,CT17#,ET176,ST170198805-199211

81551LENS, REAR COMBINATION LAMP, RH

main81551-2B020iAT17#,CT170,ST170..SED198805-199005

main81551-2B021iAT17#,CT170,ST170..SED199005-199208

main81551-95503iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-2B020iAT17#,CT170,ST170..SED198805-199005

main81555-2B021iAT17#,CT170,ST170..SED199005-199208

main81555-95503iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20850iAT17#,CT170,ST170..SED198805-199005

main81560-20851iAT17#,CT170,ST170..SED199005-199208

main81560-95502iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

81561LENS, REAR COMBINATION LAMP, LH

main81561-20850iAT17#,CT170,ST170..SED198805-199005

main81561-20851iAT17#,CT170,ST170..SED199005-199208

main81561-95502iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-2B020iAT17#,CT170,ST170..SED198805-199005

main81555-2B021iAT17#,CT170,ST170..SED199005-199208

main81555-95503iAT170,CT17#,ET176,ST170..VAN,WG198805-199211

9015960333

main90159-60333

9033904024

main90339-04024

9046717007

main90467-17007

10 parts on this diagram · 3 diagrams in section
