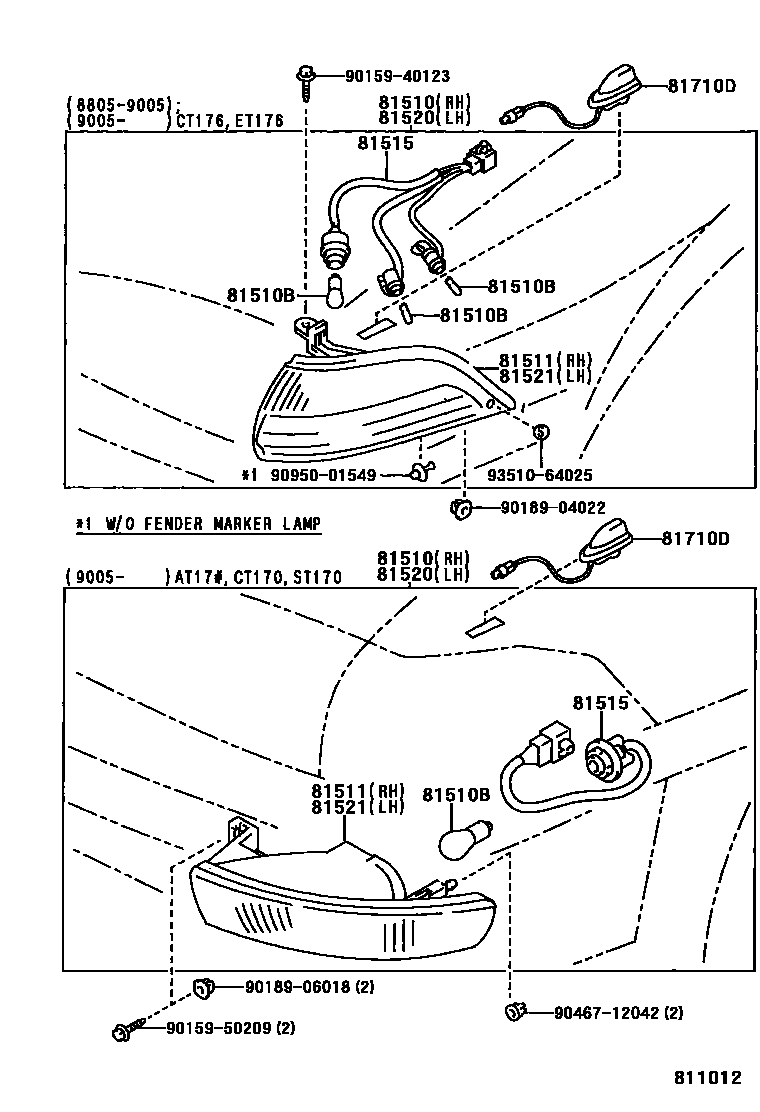

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-20500iAT170,175,CT170..SG198805-198906

main81510-20510iAT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198903-198906

main81510-20520iCT176,ET176;AT170..(DX,SV)..CBR198805-199211

main81510-20530iAT170,175,CT170..SG198906-199005

main81510-20540iAT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX; AT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198906-199005

main81510-20610iAT17#,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX199005-199211

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iAT17#,CT17#,ET176,ST170..DX,S,SE,SG,SGEXT,STD,SV,SX199005-199211

main99132-12050×4iCT176,ET176199005-199211

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-20500iAT170,175,CT17#,ET176..DX,SG,STD,SV198805-198906

main81511-20510iAT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198903-198906

main81511-20530iAT170,175,CT170..SG198906-199005

main81511-20540iAT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX; AT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198906-199005

main81511-20610iAT17#,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX199005-199211

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-20500×2iAT17#,CT17#,ET176,ST170198805-199005

main81515-20610×2iAT17#,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX199005-199211

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-20490iAT170,175,CT170..SG198805-198906

main81520-20500iAT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198903-198906

main81520-20510iCT176,ET176;AT170..(DX,SV)..CBR198805-199211

main81520-20520iAT170,175,CT170..SG198906-199005

main81520-20530iAT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX; AT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198906-199005

main81520-20600iAT17#,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX199005-199211

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-20490iCT176,ET176;AT170..(DX,SV)..CBR198906-199211

main81521-20500iAT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198903-198906

main81521-20520iAT170,175,CT170..SG198906-199005

main81521-20530iAT17#,CT170,ST170..GLIM,S,SE,SGEXT,SX; AT170..(4FC,5F)..SG; AT170..4F..SG; CT170..SG198906-199005

main81521-20600iAT17#,CT170,ST170..DX,S,SE,SG,SGEXT,SV,SX199005-199211

81710DMARKER ASSY, FENDER

main81710-20050iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX198805-199211

main81720-20040iAT17#,CT170,ST170..GLIM,S,SE,SG,SGEXT,SX198805-199211

9015940123

main90159-40123

9015950209

main90159-50209

9018904022

main90189-04022

9018906018

main90189-06018

9046712042

main90467-12042

9095001549

main90950-01549

9351064025

main93510-64025

14 parts on this diagram · 1 diagram in section
